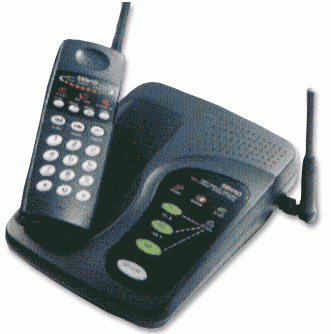

258R UP TO 70KM, DATA CAPABLE

258R up to 70km, Data Capable

NOT FCC CERTIFIED, MAY NOT BE USED IN USA

The over abundance of the 258R s features is certainly not reflected in the price tag. This industrial cordless phone is unquestionably one of our best values. The 258R is ISO9001 certified, the highest independent quality certification a manufacturer can obtain. With a range of up to 70km with optional G-2 linear amplifiers and the ability to transmit data (fax, internet, credit card terminal, etc) with the optional SX-30 data adapter, the 258R is one of the most robust systems we offer:

Data Capable with optional SX30 data adapter

Vibration Alert - silently alerts the user of an incoming call.

Multiple Handset Capability up to 15 per system, calls may be transferred from handset to handset

Built in half duplex 2 way radio 2 way radio communication between handsets possible without tying up the phone line

Advanced Voice Scrambler Keeps your private conversations secure from eavesdropping may be toggled on/off

Headset Jack for hands free communication

Music on Hold allows callers to hear something more interesting than dead air when they are on hold

Auto answer and release useful in conjunction with the ear microphone. Delivers true hands free operation

Two-way paging between the base and handset(s) with intercom

Additional RJ-11 port on Base unit (may be used to connect answering machine, fax, other phone, etc)

A small lightweight handset

Voice quality on the 258R is exceptional. Before a call is placed, the system automatically scans the channel spectrum and selects the clearest channel on which to place the call. Once the call is placed, a sophisticated compander (a device that reduces line noise, similar to how Dolby"! reduces the hiss on an audio tape) takes control to ensure clear transmission. Many customers tell us that even when the scrambler is in use sound quality is quite good.

Multiple handsets may be used to communicate with one another in half duplex walkie talkie mode. Up to 15 handsets may join a conversation. A user can send a broadcast message to any/all handsets. This radio communication takes place independently of the phone line. A handset to base station intercom feature is also standard. The intercom/walkie-talkie can even be used while a call is in progress.

The 258R is completely customizable. For example - when a call is transferred to a handset, and that handset doesn t answer after the designated user programmable waiting time, the call will revert back to the original handset. Users can program a wait time from 15-55 seconds. Handsets may easily be programmed to only allow outgoing calls, only accept incoming calls, and so on. To further conserve battery life, the user may adjust the standby time from 58 hours to 98 hours. The longer the standby time, the longer the phones takes to ring when an incoming call is received. Other features such as flash time, length of DTMF tone generation, and much more are also programmable.

In addition to the outstanding features above, users will enjoy a low battery display with audible alert, power save mode (handset transmits at lowest level of power necessary to maintain a clear connection thus saving battery life), any key answer, 10 number speed dial, and more. Standard features such as adjustable voice and ring volume are also included. Let s not forget the most important feature of all, a user customizable communication range of up to 70km!

258R STANDARD PACKAGE

5km Range INCLUDES:

1 Base Station with AC Adapter and Charging Device

1 Handset

1 Nimh battery

1 Piece RJ-11 telephone wire

1 Owner's Manual

**ONE YEAR PARTS AND LABOR WARRANTY 258R PROFESSIONAL PACKAGE

15km Range INCLUDES: standard package contents plus:

- Factory External Antenna

- High Power Modification

- Leather Case

**ONE YEAR PARTS AND LABOR WARRANTY

258R PROFESSIONAL PACKAGE Level II

45km Range INCLUDES: Professional Package contents plus:

- G2 Base Station Amplifier

- Ultra High Performance Antenna with 30M Cable

- Desktop Rapid Charger for Handset

**ONE YEAR PARTS AND LABOR WARRANTY

258R PROFESSIONAL PACKAGE Level III

70km Range INCLUDES: Pro Pack Level II contents plus:

- G2 Mobile Handset Amplifier with Car Antenna System

**ONE YEAR PARTS AND LABOR WARRANTY

AVAILABLE OPTIONS: SX30 Data Adapter

 Allows data transmission (fax machine, computer modem, etc) from a remote location.

G2 Base Station Linear Amplifier

 Increases communication range of the 258R up to 45km. Includes ultra high performance

antenna and 30M cable.

G2 Handset Linear Amplifier

 Increases communication range of the 258R up to 70km when used in conjunction

with the G2 base station linear amplifier.

Factory External Antenna

 Increases communication range of the 258R up to 15km

High Power Modification

 Increases the power of the system 66% to a full 1 Watt of transmission power. Results

in an increased communication range of up to 15km when used in conjunction with

the factory external antenna.

Leather Case

 Fits snugly over the remote handset

Additional Handset Kit

 Includes battery

Ear Microphone

 For true hands-free operation

Extra Battery

 Same as included with the standard package

Independent Desktop Charger

 Allows charging of the handset when away from the base. Includes AC adapter

258R TECHNICAL SPECIFICATIONS

Base Unit Transmit Frequency: 254MHz

Receive Frequency: 390MHz

RF Power: 600mW (1W w/high power mod)

Power Source: AC 110/60Hz AC 220/50Hz

Number of Channels: 40

Channel Spacing: 25KHz

Modulation Type: FM

 Remote Unit Transmit Frequency: 254MHz

Receive Frequency: 390MHz

RF Power: 350mW

Power Source: 4.8V Ni-CD Battery

Number of Channels: 40

Channel Spacing: 25KHz

Modulation Type: FM
