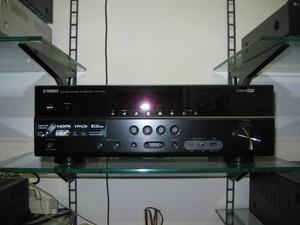

YAMAHA RXV373BL 5.1 CHANNEL HOME THEATER RECEIVER FOR 110 VOLTS

110 Volts for USA use ONLY

5-channel powerful surrounds sound (100 watts per channel)

4K pass-through for next generation super high resolution images - Provides advanced HDMI features including 4K Pass-Through for higher picture quality, 3D for enjoying 3D video sources, and ARC (Audio Return Channel) which makes it easier to hear TV sound

HDMI (4 inputs/1 output) with 3D and Audio Return Channel

Front panel USB Digital Connection for iPod and iPhone - A USB port on the front panel provides convenient connection for your iPod/iPhone, which also charges when connected. Because the digital signal from the iPod/iPhone is transmitted directly to the AV receiver, noise interference is minimized and sound quality is much better

ECO mode for a 20 percent power reduction. It uses extremely low power when in standby mode. And there is Auto Power Down function, which you can set for 2, 4, 8 or 12 hours

YPAO sound optimization for automatic speaker setup - YPAO analyzes the room acoustics and adjusts various audio parameters for optimum sound in just a few minutes. It’s like having a professional installer calibrate your system

HD Audio decoding with CINEMA DSP (17 DSP programs) - Yamaha’s exclusive CINEMA DSP technology supports playback of HD Audio (Dolby TrueHD, DTS-HD Master Audio, etc.), providing natural and expansive sound imaging

Multi language color OSD for improved visibility

SCENE for one-touch start - Pressing a SCENE button powers on the AV Receiver and selects the input source and DSP mode. You can re-set the buttons for different sources by selecting a source and DSP mode, then pressing a SCENE button for more than three seconds

HDMI CEC for Easy Operation - When the unit is connected to a CEC compatible TV, it will turn on and off together with the TV, and you can use the TV remote to control the volume. CEC also provides advanced functionality with other components

Subwoofer Trim control enhances the low frequencies by avoiding overlap with the front speaker output. This will result in a cleaner, more focused sound stage while providing a seamless frequency response

Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should

Adaptive DRC automatically adjusts the dynamic range of the sound according to the volume level. This ensures that you hear clear dialogue and vocals, and all sound effects at comfortable levels

Supports Deep Color (30/36 bit), x.v.Color, 24 Hz Refresh Rate and Auto Lip-Sync compensation

iPod/iPhone song titles displayed in English and Western European languages on the front panel

Front panel mini jack input for connecting portable audio player

Audio input assign capability for HDMI and component video input

9 selectable subwoofer crossover frequencies

Subwoofer phase select / Subwoofer out

Initial Volume Setting and Maximum Volume Setting

Audio Delay for adjusting Lip-Sync (0-250 ms)

40-station preset tuning / Auto preset tuning

Background Video feature (for Radio only)

Silent Cinema makes it possible to hear large-scale surround sound through ordinary headphones

Audio Features

• 5-channel powerful surround sound (100W per channel)

• HD Audio format decoding: Dolby TrueHD and DTS-HD Master Audio; Dolby Digital Plus and DTS-HD High Resolution Audio

• 192 kHz/24-bit Burr-Brown DACs for all channels

• High dynamic power, low-impedance drive capability

4K Pass-through for Next Generation Super High Resolution Images

This AV receiver provides advanced HDMI features including 4K pass-through. 4K refers to four times the resolution of a 1080p display. While not yet available, 4K displays and sources are sure to become popular in the future. This receiver is capable of passing the 4K data from the source to the display for image clarity far beyond present standards.

HDMI with 3D and Audio Return Channel

3D means the receiver can handle 3D signal data. The Audio Return Channel function enables data to be sent and received via the same HDMI cable so you can hear the sound from the TV via a single HDMI cable with no need for an extra optical cable.

YPAO Sound Optimization for Automatic Speaker Setup

YPAO analyzes the room acoustics and adjusts various audio parameters for optimum sound in just a few minutes. It’s like having a professional installer calibrate your system.

USB Digital Connection for iPod and iPhone

A USB port on the front panel allows convenient connection of an iPod/iPhone, which also charges when connected. Because the digital signal from the iPod/iPhone is transmitted directly to the AV receiver, there is no signal loss or interference so you enjoy the best possible sound quality. In addition, you can use the receiver’s remote control unit to operate the iPod/iPhone music playback functions.

HD Audio with CINEMA DSP

Yamaha’s exclusive CINEMA DSP technology supports playback of HD Audio (Dolby TrueHD, DTS-HD Master Audio, etc.), providing natural and expansive sound imaging.

HDMI CEC for Easy Operation

Another benefit of HDMI is the availability of CEC functionality. When the unit is connected to a CEC compatible TV, it will turn on and off together with the TV and you can use the TV remote to control the volume. CEC also provides advanced functionality with other components. For example, you can use the receiver’s remote unit to control player functions like Skip and Stop.

?All connected devices must be HDMI CEC compatible. Some CEC compatible TVs/players may not work.

Subwoofer Trim for Improved Sound Imaging

The Subwoofer Trim control enhances the low frequencies by avoiding overlap with the front speaker output. This will result in a cleaner, more focused sound stage while providing a seamless frequency response. When subwoofer frequency overlap occurs in conventional systems, the overall sound is “pushed” toward the subwoofer. Subwoofer Trim takes care of this by separating the low subwoofer frequencies cleanly, thus stabilizing the front stage while providing a well-balanced enhanced bass sound.

Compressed Music Enhancer

Description: http://data.yamaha.jp/sdb/product/image/others/medium/r/rx-v373_black_u/47F1C13926EB4C9FA8BF00AAF9AD13BD_12005.jpg

When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha’s Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost so the music always sounds the way it should.

Adaptive DRC (Dynamic Range Control)

Adaptive DRC automatically adjusts the dynamic range of the sound according to the volume level. This ensures that you hear clear dialogue and vocals and all sound effects at comfortable levels. There is no need to adjust the volume level as you listen; everything from whispers to big explosions will be heard clearly and comfortably at the same volume setting. It also tones down loud TV commercials and is ideal for low-volume, late-night listening when you do not want to disturb others.

ECO Mode Lowers Power Consumption by 20%*

Yamaha’s new ECO mode reduces power consumption by about 20%. It can be set from the top of the GUI menu.

* Compared to power consumption when ECO mode is off (Yamaha measurement).

Selectable Auto Power Down

Auto Power Down lets you save energy by selecting to turn off the power after 2, 4, 8 or 12 hours.

AV Receiver

Amplifier Section              Channel               5.1

Rated Output Power (1kHz, 1ch driven)     100W (8ohms, 0.9% THD)

Rated Output Power (1kHz, 2ch driven)     85W (8ohms, 0.9% THD)

Dynamic Power per Channel (8/6/4/2 ohms)          110/130/160/180W

Surround Sound Processing           CINEMA DSP       Yes

DSP Programs     17

Compressed Music Enhancer        Yes

SILENT CINEMA / Virtual CINEMA DSP      Yes

Dolby TrueHD     Yes

Dolby Digital Plus              Yes

DTS-HD Master Audio      Yes

Audio Features   YPAO sound optimization              Yes

Adaptive DRC (Dynamic Range Control)    Yes

Initial Volume & Maximum Volume Setting             Yes

Audio Delay        Yes (0-250 ms)

192kHz/24-bit DACs for all channels          Yes (Burr-Brown)

Video Features   HDMI 3D passthrough     Yes

HDMI Audio Return Channel         Yes

Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync    Yes

4K Pass-through                Yes

Extensive Connection      HDMI Input/Output          4 / 1

HDMI CEC           Yes

USB Input            iPod/iPhone, USB Memory, Portable Audio Player

Front AV Input    USB/Mini Jack/Composite

Digital Audio Input/Output: Optical            2 / 0

Digital Audio Input/Output: Coaxial           2 / 0

Analog Audio Input/Output           4 (front 1) / 2

Component Video Input/Output 2 / 1

Composite Video Input/Output    4 (front 1) / 1

Preout   Subwoofer

Headphone Output          1

Tuner Section     FM/AM Tuner     Yes

User Interface    On-screen display             Yes (Color OSD)

SCENE   SCENE (4 sets)

Remote Control Unit       Yes

General                ECO mode           Yes

Standby Power Consumption (IR only)       ≤0.3W

Auto Power Standby        Yes

Dimensions (W x H x D)   17-1/8” x 6” x 12-3/8”

Weight 16.5 lbs.

Shipping Dimensions (W x H x D) 15-5/8" x8-7/8" x21-3/8"

Shipping Weight (lbs.)      20.94 lbs.
