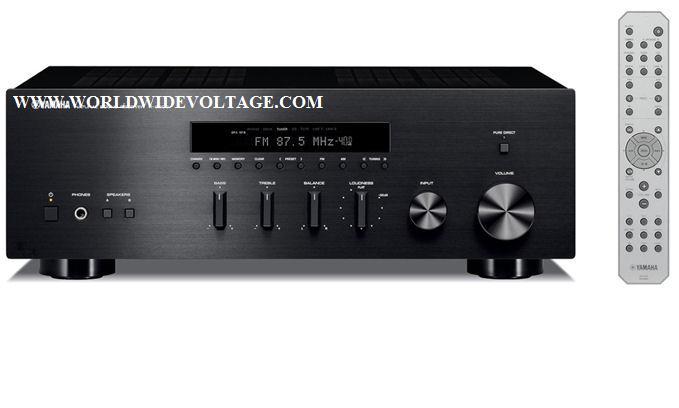

YAMAHA Affordable stereo receiver combining ToP-ART technology and ART Base chassis construction for crisp, clean sound. Advanced features include continuously variable loudness control, Pure Direct, along with Yamaha iPod dock connection and a 40-station AM/FM for great music enjoyment.
Product Code: YA-RS300BL Product ID: 20775
Product sold by: samstores.com
Availability: In Stock New
Main Features
High-end design similar to the A-S2000—the look and feel of the control knobs, for example.
ToP-ART and ART Base chassis construction fully protect audio signals from noise and vibration.
High grade parts selected and tested to meet Yamaha standards and provide the best possible sound.
The built-in iPod Dock has an independent power supply for extremely high S/N ratio.
Connect two sets of speakers; switch between them or listen to both at the same time.
Auto Power Off automatically turns off the power after a certain amount of time to save energy.
Advanced Features
50W x 2 high power output
40-station AM/FM random access preset tuning
Pure Direct for short and direct signal path
Aluminum-extruded front panel
Subwoofer Out
Continuously Variable Loudness Control
Slim-design remote control
Dimensions (W x H x D): 17-1/8" x 6" x 15-1/4"
Zone Control
12V Trigger Out (Control Out)
The 12V trigger output can be used to automatically power on the components in Zone 2 when the main power is turned on. Output is a high 100mA, so relay operation is possible.
Remote (IR) 2 In/Out and Remote 2 In
These terminals let you connect an IR signal receiver for wireless remote control between the Main Zone and Zone 2.
Speaker A/B and A+B Selection
Enjoy music in a second room! Just connect a second pair of speakers to the Speaker B terminals and you can listen to either pair or both of them at the same time.
The Look and Texture of Quality
Offers the look and feel of the top-class A-S2000, with elegant aluminum front panel and silky touch volume/selector knobs. You can feel Yamaha's commitment to quality when you touch the knobs.
ToP-ART Sound Quality Design
ToP-ART (Total Performance Anti-Resonance Technology) design uses a symmetrical layout for accurate sound field reproduction and the ART Base to eliminate effects from external vibration.
Pure Direct
Music signals travel the shortest possible route, bypassing the buffer amp and tone, loudness and balance controls to virtually eliminate any signal degradation for the purest sound quality.
New Speaker Terminals
These high grade speaker terminals have silver plating for best connection and outstanding durability. The pitch between jacks is wider for easier insertion.
Highest Quality Parts
The quality of each individual part, as well as how they work together, basically determines the sound quality of any component. Yamaha uses only very high quality parts, carefully selected and tested.
Continuously Variable Loudness Control
Our ears lose sensitivity to high and low frequencies at low volume levels. This control lets you turn down the volume while maintaining the optimum frequency response.
Special Power Supply for Clear iPod Sound
The iPod dock has an independent power supply to prevent operating or charging current from the iPod from flowing into the amp ground signal. This ensures optimum iPod sound quality.
Balanced System for Minimal Noise
An unbalanced interface is subject to commonmode voltage noise, so Yamaha uses a balanced system to receive the iPod signal. This makes a significant contribution to reducing noise in the system for higher sound quality.
All Features
ToP-ART Technology
RMS Output Power 50W x 2
XM Satellite Radio Ready
Pure Direct Switch
Switchable CD Direct Amplification
Super Audio CD/DVD Audio Ready w/Extended Frequency Response
THD [0.04%]
Linear Damping Factor (Speaker A) 150 or more
Continuously Variable Loudness Control
Rec Out Selector
Remote Controllable Master Volume Control
40-Station Preset Tuning
Pre-Out / Main-In Coupler
Zone 2 Output
Zone Remote Control
IR Ports (1 In / 1 Out)
12V Trigger Output
Product Dimensions (W x H x D) / Weight (lbs.) 17-1/8" x 6" x 15-1/4" / 19.4
Shipping Dimensions (W x H x D) / Weight (lbs.)
