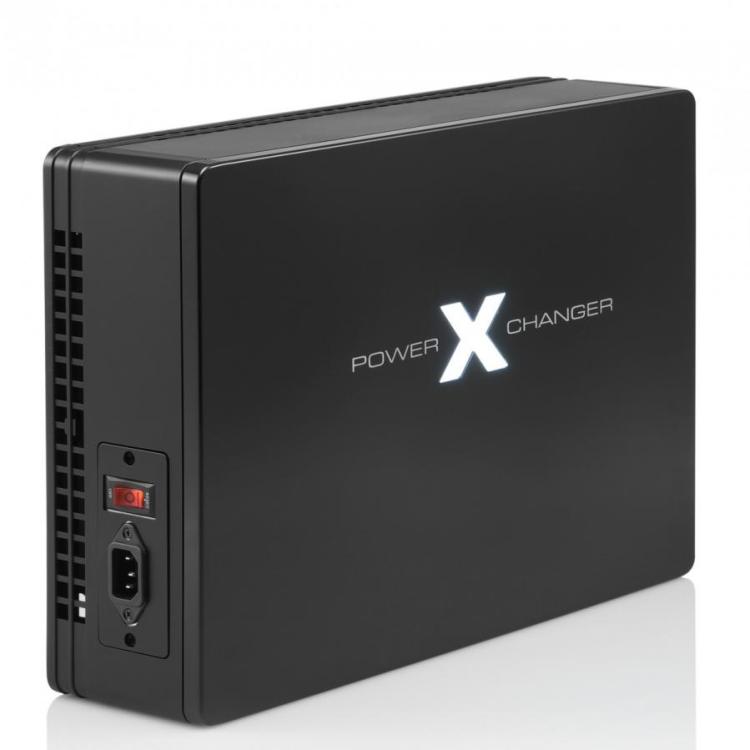

POWERXCHANGER X-5 600W (5 AMPS) VOLTAGE AND FREQUENCY CONVERTER (50 <> 60 HZ) BLACK

5

The smallest wall-mounted voltage and frequency converter provides constant and regulated 120v~60Hz output power, perfect for a single appliance or multiple devices that have a combined load up to 600 Watts.

Product Code: X-5 600W   Product ID: 27870
Product sold by: samstores.com

$ 850

Availability: In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-7 business days!

The smallest wall-mounted voltage and frequency converter provides constant and regulated 120v~60Hz output power, perfect for a single appliance or multiple devices that have a combined load up to 600 Watts.



Overview

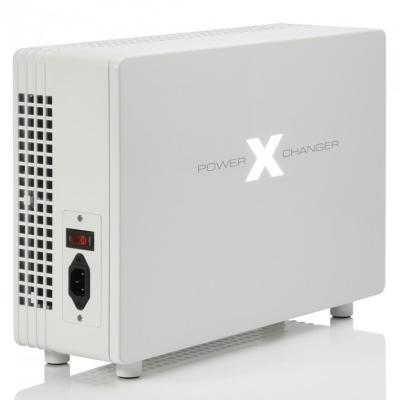

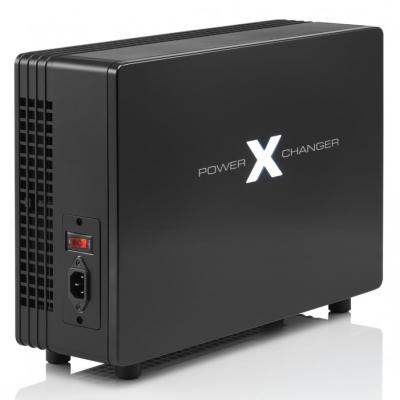

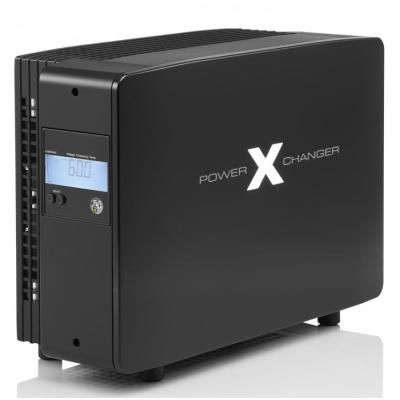

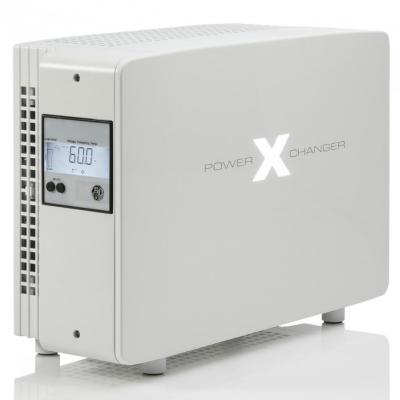

The X-5 is the smallest in this series of Voltage and Frequency converters. Providing 5 Amps of regenerated, clean, 120v~60Hz power, it includes all of the same technical features of the larger capacity X-10 and X-15. Perfect for powering a single appliance or multiple devices whose total load does not exceed 600 Watts (5 Amps).

X-5 is a full-featured sine wave output regenerator that produces new, clean, and constant AC power; eliminating line noise and ensuring optimum performance. It is capable of providing 120~60Hz electricity for running a single household appliance or devices whose load does not exceed 600W (5 Amps).

This unit is designed to be Wall Mounted in a convenient location, saving valuable counter space and providing it with the required ventilation. The optional Xchange® Extension Outlet allows for installation up to 6ft away from the appliance it’s meant to power.

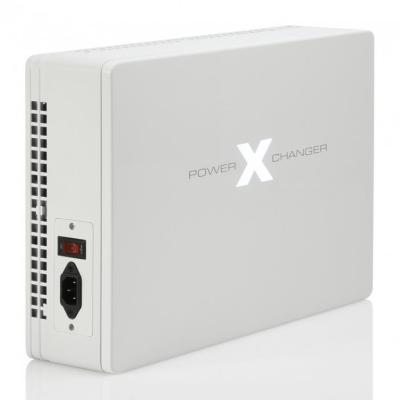

The X-5 is available in 2 colors.

Power

With sophisticated electronics including power factor correction, as well as input and output EMI and RFI filters, it produces continuous power at over 92% efficiency and with output Harmonic distortion below 3%. High levels of regulation ensure 120~60Hz output with fluctuations below ± 2%, making it the ideal conversion device for taking high-end audio and home theater equipment overseas.

Power for High Performance Audio

To the audiophile, the X-5 functions as a Regenerator with Power Factor Correction (PFC). It is a premiere choice for powering audio equipment to satisfy the most demanding audiophiles. With its clean sinewave output (typically < 1%THD) and with virtually no change in amplitude due to input voltage fluctuations and output load transients, audio equipment will always function with optimal performance. Because the output of the X-5 regulates so well, another advantage to the audiophile is that other equipment powered by the X-5, such as HDTVs and DVRs, will not introduce noise or distortion to the audio output via the common power connection.

Additionally excellent EMI filtering on the input and output of the X-5 prevents RFI noise from being injected into the audio output.



Another important feature for audiophiles is the high output surge current capacity (150 Amps) of the X-5. This capability to source high surge currents with minimal distortion of the output voltage results with crisp high volume audio transients.

Frequently overlooked is the importance of PFC for noise free operation of audio equipment. Because PFC eliminates voltage and current distortions on the input power leads to the X-5, this potential source of audio noise is virtually non-existent.

Reliability

The X-5 has sealed, solid-state electronics that protect against humidity and dust, ensuring reliability and a long product life. An External Fan automatically cools the sealed electronics whenever the load exceeds 5 Amps or when environmental factors exceed operating temperature.

Safety

Not only will electrical equipment perform better, but the X-5 also acts as an advanced voltage regulator, which fully protects equipment against voltage irregularities, such as under INPUT voltage as low as 180Vac and over voltage as high as 265Vac and provides an appliance with inrush surge protection of up to 150 Amps.

Audible alarms notify overload, short circuit and temperature while in addition; an external LED provides visual notification of overload and temperature status.

The X-5 not only meets the stringent standards of the UL and FCC in the USA, but also meets International Safety Standards.

Features

Frequency Converter

Voltage Converter

Sophisticated Voltage Regulator

Surge Protection

Short Circuit Protection

Over-Current Protection

Power Factor Correction (PFC)

Thermal Protection

Lightweight

High Efficiency

Input EMI and RFI Filters

Output EMI and RFI Filters

Low Harmonic Distortion

Sealed, Solid State Electronics

External Cooling Fan

Continuous Power

Audible Alarms

Led Status Indicator

International Approvals

Wall Mounting Kit

Standard Accessories:

Wall Mount, Extension Outlet, (4) Input Cord Type F, G, I, M

X-5

12060X-05-BB

12060X-05-WW

Output

Output Voltage 120Vac

Output Current-Amps @ 60Hz   5A

Voltage Regulation          ± 2% From Setpoint

Output Frequency           60Hz (Auto-Synchronized to Mains)

Crest Factor        8:1

Voltage Waveform          Sine Wave

Output Distortion (Resistive Load)           <2%

Output Distortion (Reactive Load)            <3%

Non-Linear Peak Current for 30 sec.        40A

Standby Power 10W

Total Harmonic Distortion             < 3% at 100% Linear Load

Output EMI Filter             150Khz - 30Mhz

Output RFI Filter               30Mhz - 1000Mhz

Clamp Level        190V

Protection

Over Current Protection               Over Load Alarm Level: 100% ~ 135%

(alarm after 1 minute delay, shutdown after 1 minute alarm)

Over Load Shutdown Level: 136%

(shutdown after 2 second delay)

Short Circuit       Pulsating Type, 40A Peak

Auto-Restart time: 30 seconds

Input

Nominal Voltage              200V/220V/230V/240V

Maximum Continuous Load        600W

Maximum Peak Load      1000W

Input Frequency              46Hz 65Hz

Phase    Single

Noise Filtering   Full-Time EMI/RFI Filtering

Input EMI Filter 150Khz -30Mhz

Input RFI Filter  30Mhz - 1000Mhz

Over Current Protection               By Re-Settable

Over Current Protector

Voltage Range   180Vac 265Vac

Power Factor     > 0.95

Audible Alarm   Over Load Alarm:

Continuous alarm

Short-Circuit Alarm:

1 beep every 2 seconds

Thermo Alarm:

Every other 2 seconds, 32 beeps in 2 seconds

Inrush Surge Capacity    <150A

Voltage Interruption Ride Through          30mS

Efficiency             >92%

Indicators

LCD        Not Applicable

LED         Overload:

X blinks every 4 seconds

Over-Temperature:

X blinks every 2 seconds

Environmental and Safety

Operating Temperature                Up to 2000 Meters:

0° to 45°C

(32°F to 113°F)

Transit/Storage Temp    -15°C to 60°C

(5°F to 140°F)

Relative Humidity            5 – 95% Non-Condensing

Operating Altitude          0 ~ 3000 Meters

Moisture Sensitivity        Sealed Electronics

Cooling

Natural Ventilation          Yes

External Cooling Fan Control       Auto on/off, controlled by heat sink temperature & load level

Physical

Product Dimensions

L×W×H(cm/in)  41.50 × 27.50 × 10.00 cm

16.34 × 10.83 × 3.94 in

Net Product Weight

Net/Gross (kgs/lbs)        8.11 kgs

17.88 lbs

Carton Dimensions

L×W×H(cm/in)  58.00 x 30.00 x 54.00 cm

22.83 x 11.81 x 21.26 in

Shipping Weight               15.50 kgs

34.17 lbs

Warranty             2 Years, Full Replacement

Quality Control Standard              ISO9001

International Approvals                UL-ULus (CCN: QQFU/7) Power Units Other Than Class 2,

UL 1012, Seven Edition, October 14, 2008

UL-cUL: CAN/CSA-C22.2 No. 107.1-01, September, 2001

DEMKO-CB IEC60950-1:2005+A1:2009+A2:2013 (Ed. 2.2)

TUV/SUD-CB IEC 60335-1:2010+A1:2013 (Ed. 5.1)

FCC Part 15: subpart B

EMC 2004/108/EC
