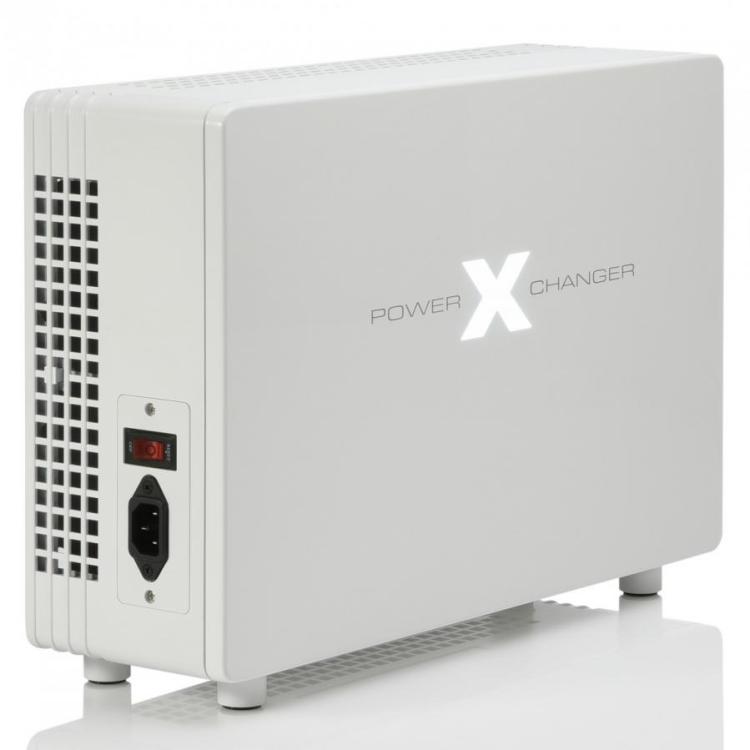

The X-10 is the world’s most powerful Voltage and Frequency converter available for personal use. While being small and portable, it regenerates 10 Amps of power that exceed in quality and regulation of a dual socket home outlet
The X-10 is a wall-mounted converter that provides 10 Amps of regulated 120v~60 Hz output and is suitable for powering multiple appliances simultaneously using the included Xchange® Extension Outlet.
The X-10 is the second most powerful Voltage and Frequency converter in the series. Providing 10 Amps of regenerated, clean, 120v~60 Hz power, it includes all of the same technical features of the larger capacity X-15. Perfect for powering multiple devices and appliances whose total load does not exceed 10 Amps.
X-10 is a full-featured sine wave output regenerator that produces new, clean, and constant AC power; eliminating line noise and ensuring optimum performance. It is capable of providing 120v~60 Hz electricity for running household appliances such as refrigerators, gas stoves, washers, gas dryers, microwaves, household power tools, and small appliances.
When location and space is an issue, the detachable legs, included wall mounting kit and Xchange® Extension Outlet allow this unit to be placed virtually anywhere – up to 6ft away from the appliance it’s meant to power!
The X-10 is available in 2 colors.
With sophisticated electronics, including power factor correction, as well as input and output EMI and RFI filters, it produces continuous power at over 92% efficiency and with output Harmonic distortion below 3%. High levels of regulation ensure 120v~60 Hz output with fluctuations below ± 2%, making it the ideal conversion device for taking high-end audio and home theater equipment overseas.
Power for High Performance Audio
To the audiophile, the X-10 functions as a Regenerator with Power Factor Correction (PFC). It is a premiere choice for powering audio equipment to satisfy the most demanding audiophiles. With its clean sinewave output (typically < 1%THD) and with virtually no change in amplitude due to input voltage fluctuations and output load transients, audio equipment will always function with optimal performance. Because the output of the X-10 regulates so well, another advantage to the audiophile is that other equipment powered by the X-10, such as HDTVs and DVRs, will not introduce noise or distortion to the audio output via the common power connection.
Additionally excellent EMI filtering on the input and output of the X-10 prevents RFI noise from being injected into the audio output.
Another important feature for audiophiles is the high output surge current capacity (150 Amps) of the X-10. This capability to source high surge currents with minimal distortion of the output voltage results with crisp high volume audio transients.
Frequently overlooked is the importance of PFC for noise free operation of audio equipment. Because PFC eliminates voltage and current distortions on the input power leads to the X-10, this potential source of audio noise is virtually non-existent.
The X-10 has sealed, solid-state electronics that protect against humidity and dust, ensuring reliability and a long product life. An External Fan automatically cools the sealed electronics whenever the load exceeds 10 Amps or when environmental factors exceed operating temperature.
Not only will electrical equipment perform better, but the X-10 also acts as an advanced voltage regulator, which fully protects equipment against voltage irregularities, such as under INPUT voltage as low as 180Vac and over voltage as high as 265Vac and provides an appliance with inrush surge protection of up to 150 Amps.
Audible alarms notify overload, short circuit and temperature while in addition; an external LED provides visual notification of overload and temperature status.
The X-10 not only meets the stringent standards of the UL and FCC in the USA, but also meets International Safety Standards.
Sophisticated Voltage Regulator
Short Circuit Protection
Power Factor Correction (PFC)
Input EMI and RFI Filters
Output EMI and RFI Filters
Low Harmonic Distortion
Sealed, Solid State Electronics
External Cooling Fan
Led Status Indicator
Wall Mounting Kit
Includes Xchange® Extension Outlet
Wall Mount, Extension Outlet, (4) Input Cord Type F, G, I, M
Output Voltage 120Vac
Output Current-Amps @ 60Hz 10A
Voltage Regulation ± 2% From Setpoint
Output Frequency 60Hz (Auto-Synchronized to Mains)
Crest Factor 4:1
Voltage Waveform Sine Wave
Output Distortion (Resistive Load) <2%
Output Distortion (Reactive Load) <3%
Non-Linear Peak Current for 30 sec. 40A
Standby Power 10W
Total Harmonic Distortion < 3% at 100% Linear Load
Output EMI Filter 150Khz - 30Mhz
Output RFI Filter 30Mhz - 1000Mhz
Clamp Level 190V
Over Current Protection Over Load Alarm Level: 100% ~ 135%
(alarm after 1 minute delay, shutdown after 1 minute alarm)
Over Load Shutdown Level: 136%
(shutdown after 2 second delay)
Short Circuit Pulsating Type, 40A Peak
Auto-Restart time: 30 seconds
Nominal Voltage 200V/220V/230V/240V
Maximum Continuous Load 1200W
Maximum Peak Load 2000W
Input Frequency 46Hz 65Hz
Noise Filtering Full-Time EMI/RFI Filtering
Input EMI Filter 150Khz -30Mhz
Input RFI Filter 30Mhz - 1000Mhz
Over Current Protection By Re-Settable
Over Current Protector
Voltage Range 180Vac 265Vac
Power Factor > 0.95
Audible Alarm Over Load Alarm:
1 beep every 2 seconds
Every other 2 seconds, 32 beeps in 2 seconds
Inrush Surge Capacity <150A
Voltage Interruption Ride Through 30mS
LCD Not Applicable
X blinks every 4 seconds
X blinks every 2 seconds
Environmental and Safety
Operating Temperature Up to 2000 Meters:
0° to 45°C
(32°F to 113°F)
Transit/Storage Temp -15°C to 60°C
(5°F to 140°F)
Relative Humidity 5 – 95% Non-Condensing
Operating Altitude 0 ~ 3000 Meters
Moisture Sensitivity Sealed Electronics
Natural Ventilation Yes
External Cooling Fan Control Auto on/off, controlled by heat sink temperature & load level
L×W×H(cm/in) 41.50 × 27.50 × 12.50 cm
16.34 × 10.83 × 4.92 in
Net Product Weight
Net/Gross (kgs/lbs) 9.48 kgs
L×W×H(cm/in) 58.00 x 30.00 x 54.00 cm
22.83 x 11.81 x 21.26 in
Shipping Weight 16.14 kgs
Warranty 2 Years, Full Replacement
Quality Control Standard ISO9001
International Approvals UL-ULus (CCN: QQFU/7) Power Units Other Than Class 2,
