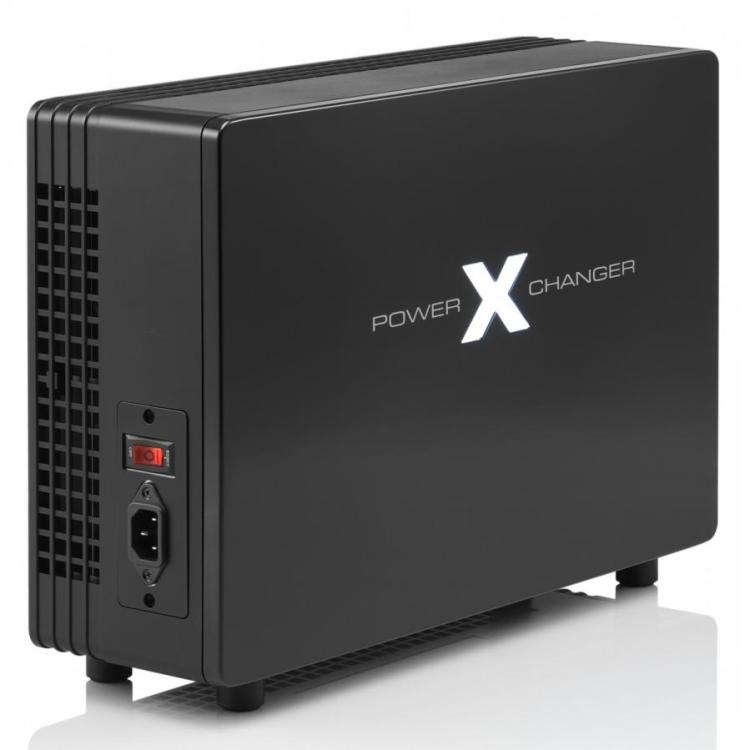

POWERXCHANGER X-10 1200W (10 AMPS) VOLTAGE AND FREQUENCY CONVERTER (50 <> 60 HZ) BLACK

5

The X-10 is a wall-mounted converter that provides 10 Amps of regulated 120v~60 Hz output and is suitable for powering multiple appliances simultaneously using the included Xchange® Extension Outlet.

Product Code: X-10 1200W   Product ID: 27871
Product sold by: samstores.com

$ 1643.13

Availability: In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

The X-10 is the world’s most powerful Voltage and Frequency converter available for personal use. While being small and portable, it regenerates 10 Amps of power that exceed in quality and regulation of a dual socket home outlet



The X-10 is a wall-mounted converter that provides 10 Amps of regulated 120v~60 Hz output and is suitable for powering multiple appliances simultaneously using the included Xchange® Extension Outlet.

Overview

The X-10 is the second most powerful Voltage and Frequency converter in the series. Providing 10 Amps of regenerated, clean, 120v~60 Hz power, it includes all of the same technical features of the larger capacity X-15. Perfect for powering multiple devices and appliances whose total load does not exceed 10 Amps.

X-10 is a full-featured sine wave output regenerator that produces new, clean, and constant AC power; eliminating line noise and ensuring optimum performance. It is capable of providing 120v~60 Hz electricity for running household appliances such as refrigerators, gas stoves, washers, gas dryers, microwaves, household power tools, and small appliances.

When location and space is an issue, the detachable legs, included wall mounting kit and Xchange® Extension Outlet allow this unit to be placed virtually anywhere – up to 6ft away from the appliance it’s meant to power!

The X-10 is available in 2 colors.

Power

With sophisticated electronics, including power factor correction, as well as input and output EMI and RFI filters, it produces continuous power at over 92% efficiency and with output Harmonic distortion below 3%. High levels of regulation ensure 120v~60 Hz output with fluctuations below ± 2%, making it the ideal conversion device for taking high-end audio and home theater equipment overseas.

Power for High Performance Audio

To the audiophile, the X-10 functions as a Regenerator with Power Factor Correction (PFC). It is a premiere choice for powering audio equipment to satisfy the most demanding audiophiles. With its clean sinewave output (typically < 1%THD) and with virtually no change in amplitude due to input voltage fluctuations and output load transients, audio equipment will always function with optimal performance. Because the output of the X-10 regulates so well, another advantage to the audiophile is that other equipment powered by the X-10, such as HDTVs and DVRs, will not introduce noise or distortion to the audio output via the common power connection.

Additionally excellent EMI filtering on the input and output of the X-10 prevents RFI noise from being injected into the audio output.



Another important feature for audiophiles is the high output surge current capacity (150 Amps) of the X-10. This capability to source high surge currents with minimal distortion of the output voltage results with crisp high volume audio transients.

Frequently overlooked is the importance of PFC for noise free operation of audio equipment. Because PFC eliminates voltage and current distortions on the input power leads to the X-10, this potential source of audio noise is virtually non-existent.

Reliability

The X-10 has sealed, solid-state electronics that protect against humidity and dust, ensuring reliability and a long product life. An External Fan automatically cools the sealed electronics whenever the load exceeds 10 Amps or when environmental factors exceed operating temperature.

Safety

Not only will electrical equipment perform better, but the X-10 also acts as an advanced voltage regulator, which fully protects equipment against voltage irregularities, such as under INPUT voltage as low as 180Vac and over voltage as high as 265Vac and provides an appliance with inrush surge protection of up to 150 Amps.

Audible alarms notify overload, short circuit and temperature while in addition; an external LED provides visual notification of overload and temperature status.

The X-10 not only meets the stringent standards of the UL and FCC in the USA, but also meets International Safety Standards.

Features

Frequency Converter

Voltage Converter

Sophisticated Voltage Regulator

Surge Protection

Short Circuit Protection

Over-Current Protection

Power Factor Correction (PFC)

Thermal Protection

Lightweight

High Efficiency

Input EMI and RFI Filters

Output EMI and RFI Filters

Low Harmonic Distortion

Sealed, Solid State Electronics

External Cooling Fan

Continuous Power

Audible Alarms

Led Status Indicator

International Approvals

Wall Mounting Kit

Includes Xchange® Extension Outlet

Standard Accessories:

Wall Mount, Extension Outlet, (4) Input Cord Type F, G, I, M

X-10

12060X-10-BB

12060X-10-WW



Output

Output Voltage 120Vac

Output Current-Amps @ 60Hz   10A

Voltage Regulation          ± 2% From Setpoint

Output Frequency           60Hz (Auto-Synchronized to Mains)

Crest Factor        4:1

Voltage Waveform          Sine Wave

Output Distortion (Resistive Load)           <2%

Output Distortion (Reactive Load)            <3%

Non-Linear Peak Current for 30 sec.        40A

Standby Power 10W

Total Harmonic Distortion             < 3% at 100% Linear Load

Output EMI Filter             150Khz - 30Mhz

Output RFI Filter               30Mhz - 1000Mhz

Clamp Level        190V



Protection

Over Current Protection               Over Load Alarm Level: 100% ~ 135%

(alarm after 1 minute delay, shutdown after 1 minute alarm)

Over Load Shutdown Level: 136%

(shutdown after 2 second delay)

Short Circuit       Pulsating Type, 40A Peak

Auto-Restart time: 30 seconds



Input

Nominal Voltage              200V/220V/230V/240V

Maximum Continuous Load        1200W

Maximum Peak Load      2000W

Input Frequency              46Hz 65Hz

Phase    Single

Noise Filtering   Full-Time EMI/RFI Filtering

Input EMI Filter 150Khz -30Mhz

Input RFI Filter  30Mhz - 1000Mhz

Over Current Protection               By Re-Settable

Over Current Protector

Voltage Range   180Vac 265Vac

Power Factor     > 0.95

Audible Alarm   Over Load Alarm:

Continuous alarm

Short-Circuit Alarm:

1 beep every 2 seconds

Thermo Alarm:

Every other 2 seconds, 32 beeps in 2 seconds

Inrush Surge Capacity    <150A

Voltage Interruption Ride Through          30mS

Efficiency             >92%



Indicators

LCD        Not Applicable

LED         Overload:

X blinks every 4 seconds

Over-Temperature:

X blinks every 2 seconds



Environmental and Safety

Operating Temperature                Up to 2000 Meters:

0° to 45°C

(32°F to 113°F)

Transit/Storage Temp    -15°C to 60°C

(5°F to 140°F)

Relative Humidity            5 – 95% Non-Condensing

Operating Altitude          0 ~ 3000 Meters

Moisture Sensitivity        Sealed Electronics



Cooling

Natural Ventilation          Yes

External Cooling Fan Control       Auto on/off, controlled by heat sink temperature & load level



Physical

Product Dimensions

L×W×H(cm/in)  41.50 × 27.50 × 12.50 cm

16.34 × 10.83 × 4.92 in

Net Product Weight

Net/Gross (kgs/lbs)        9.48 kgs

20.90 lbs

Carton Dimensions

L×W×H(cm/in)  58.00 x 30.00 x 54.00 cm

22.83 x 11.81 x 21.26 in

Shipping Weight               16.14 kgs

35.58 lbs

Warranty             2 Years, Full Replacement

Quality Control Standard              ISO9001

International Approvals                UL-ULus (CCN: QQFU/7) Power Units Other Than Class 2,

UL 1012, Seven Edition, October 14, 2008

UL-cUL: CAN/CSA-C22.2 No. 107.1-01, September, 2001

DEMKO-CB IEC60950-1:2005+A1:2009+A2:2013 (Ed. 2.2)

TUV/SUD-CB IEC 60335-1:2010+A1:2013 (Ed. 5.1)

FCC Part 15: subpart B

EMC 2004/108/EC



Powerxchanger X-10 1200W (10 Amps) Voltage And Frequency Converter (50 <> 60 Hz) Black is a wall-mounted converter that delivers 10 Amps of regulated 120v~60 Hz output. This converter is suitable for running multiple appliances via Xchange® Extension Outlet. High-tech features and brilliant design makes it more popular in the market. It is featured with external LED for providing visual notification of overload and temperature status.

What you get

  • Acts as a voltage regulator and frequency converter
  • Ideal to protect equipment against voltage irregularities
  • Audible alarms notify overload, short circuit, and temperature
  • Auto-Restart time: 30 seconds
  • External cooling fan control
