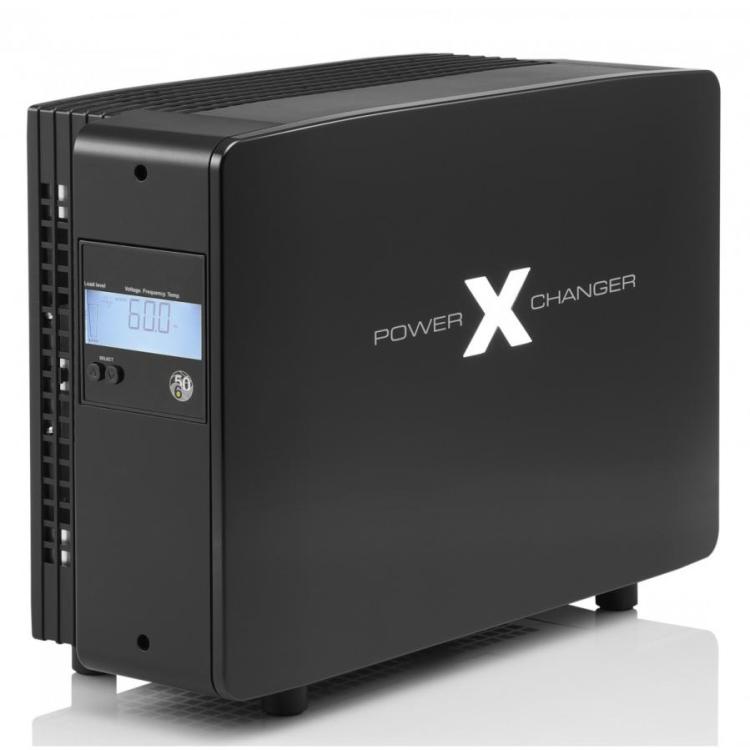

POWERXCHANGER X-15 1800W (15 AMPS) VOLTAGE AND FREQUENCY CONVERTER (50 <> 60 HZ) BLACK

5

The X-15 is the world’s most powerful Voltage and Frequency converter available for personal use. While being small and portable, it regenerates 15 Amps of power that exceed in quality and regulation of a dual socket home outlet

Product Code: X-15 1800W   Product ID: 27872
Product sold by: samstores.com

$ 2399.38

Availability: In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

POWERXCHANGER X-15 1800W (15 AMPS) VOLTAGE AND FREQUENCY CONVERTER (50 <> 60 HZ) BLACK

The new Powerxchanger X-15 1800w (15 Amps) Voltage And Frequency Converter (50 <> 60 Hz) Black is a safe, reliable, and powerful voltage and frequency converter that has a lot of juice to power multiple devices up to 1800 watts or 15 Amps. Despite having both high-end qualities (form and function), the device also features a durable built quality which ensures you get years of service from the product. The device also has a beautiful design that is nothing like you have seen before. Its seamless design paired with premium performance makes it one of the best options in the market.

What you get:

  • High-quality frequency and voltage converter
  • Surge, short circuit, and over-current protection
  • Lightweight design
  • Output and input EMI and RFI filters
  • Continuous power
  • LCD
  • Wall mount option included with the kit



POWERXCHANGER X-15 1800W (15 AMPS) VOLTAGE AND FREQUENCY CONVERTER (50 <> 60 HZ) BLACK

PowerXChanger X-15 is a powerful, safe and reliable voltage and frequency converter that has plenty of juice to power devices up to 1800 Watts or 15 Amps.

The design of PowerXChanger X-15 is like nothing you have ever seen before. The clean lines and a seamless design make it quite appealing. The form factor is also very lightweight and compact, which makes it easier to move it around from one place to another. Furthermore, the converter can also be mounted on a wall for added user convenience. With a brilliant design and a non-intimidating size, PowerXChanger X-15 is one of the most aesthetically pleasing converters out there.

PowerXChanger X-15 has a great design, but it’s no slouch in performance. With advanced and hi-tech electronics, it can render stable and constant AC power to your appliances. This ensures maximum performance and efficiency. The audio performance of this voltage and frequency converter is also top-notch. It utilizes its clean sine wave output (<1%THD) to power audio devices with optimal performance so that there is no noise or distortion in the audio output.

Despite having both, the form as well as the function, PowerXChanger X-15 is built like a tank and can last for years to come. It has a sealed metal casing that provides ample protection against humidity and dust. This means that it can withstand typical wear and tear better than its alternatives. The surface of the converter is safeguarded. But, what about the interiors where all the intricate electronics are? Well, they are protected too. PowerXChanger X-15 has a fan that automatically cools the electronics whenever the operating temperature exceeds the standard limit.

PowerXChanger is a very well-known brand in the US and has a standing for delivering very high-quality products. X-15 doesn’t seem to be an exception. With its desirable looks, class-leading performance and hi-tech features, it surely is one of the best voltage converters in the market. If you’re interested in PowerXChanger X-15, you can find it here, at Sam Stores.



Overview

The X-15 is the world’s most powerful, yet portable Voltage and Frequency converter available for personal use while matching the power of a dual socket home outlet.

X-15 is a full-featured sine wave output regenerator that produces new, clean, and constant AC power; eliminating line noise and ensuring optimum performance. It is capable of providing 120v~60 Hz electricity for running household appliances such as refrigerators, gas stoves, washers, gas dryers, microwaves, household power tools, small appliances and even commercial vacuum cleaners.

With all its sophistication, the X-15 is the same size and weight of a typical amplifier or game console.

When location and space is an issue, the detachable legs, included wall mounting kit and Xchange® Extension Outlet allow this unit to be placed virtually anywhere – up to 6ft away from the appliance it’s meant to power!

The X-15 is available in 2 colors.



Power

With sophisticated electronics including power factor correction, as well as input and output EMI and RFI filters, it produces continuous power at over 92% efficiency and with output Harmonic distortion below 3%. High levels of regulation ensure 120v~60Hz output with fluctuations below ± 2%, making it the ideal conversion device for taking high-end audio and home theater equipment overseas.



Power for High Performance Audio

To the audiophile, the X-15 functions as a Regenerator with Power Factor Correction (PFC). It is a premiere choice for powering audio equipment to satisfy the most demanding audiophiles. With its clean sinewave output (typically < 1%THD) and with virtually no change in amplitude due to input voltage fluctuations and output load transients, audio equipment will always function with optimal performance. Because the output of the X-15 regulates so well, another advantage to the audiophile is that other equipment powered by the X-15, such as HDTVs and DVRs, will not introduce noise or distortion to the audio output via the common power connection.

Additionally excellent EMI filtering on the input and output of the X-15 prevents RFI noise from being injected into the audio output.

Another important feature for audiophiles is the high output surge current capacity (150 Amps) of the X-15. This capability to source high surge currents with minimal distortion of the output voltage results with crisp high volume audio transients.

Frequently overlooked is the importance of PFC for noise free operation of audio equipment. Because PFC eliminates voltage and current distortions on the input power leads to the X-15, this potential source of audio noise is virtually non-existent.



Reliability

The X-15 has sealed solid-state electronics that protect against humidity and dust, ensuring reliability and a long product life. An External Fan automatically cools the sealed electronics whenever the load exceeds 15 Amps or when environmental factors exceed operating temperature.



Safety

Not only will electrical equipment perform better, but the X-15 also acts as an advanced voltage regulator, which fully protects equipment against voltage irregularities, such as under INPUT voltage as low as 180Vac and over voltage as high as 265Vac and provides an appliance with inrush surge protection of up to 150 Amps.

Audible alarms notify overload, short circuit and temperature while in addition; an external LED provides visual notification of overload and temperature status. A built-in LCD Display provides on-demand operational data such as connected load levels, remaining available capacity, input voltage, output converted voltage, output converted frequency, and internal device temperature.

The X-15 not only meets the stringent standards of the UL and FCC in the USA, but also meets International Safety Standards.



Features

Frequency Converter

Voltage Converter

Sophisticated Voltage Regulator

Surge Protection

Short Circuit Protection

Over-Current Protection

Power Factor Correction (PFC)

Thermal Protection

Lightweight

High Efficiency

Input EMI and RFI Filters

Output EMI and RFI Filters

Low Harmonic Distortion

Sealed, Solid State Electronics

External Cooling Fan

Continuous Power

Audible Alarms

Led Status Indicator

LCD Display

International Approvals

Wall Mount Option with Included Kit

Desktop unit with Removable Legs

Dual Socket

Includes Xchange® Extension Outlet



Output

Output Voltage 120Vac

Output Current-Amps @ 60Hz   15A

Voltage Regulation          ± 2% From Setpoint

Output Frequency           60Hz (Auto-Synchronized to Mains)

Crest Factor        3:1

Voltage Waveform          Sine Wave

Output Distortion (Resistive Load)           <2%

Output Distortion (Reactive Load)            <3%

Non-Linear Peak Current for 30 sec.        45A

Standby Power 10W

Total Harmonic Distortion             < 3% at 100% Linear Load

Output EMI Filter             150Khz - 30Mhz

Output RFI Filter               30Mhz - 1000Mhz

Clamp Level        190V



Protection

Over Current Protection               Over Load Alarm Level: 100% ~ 119%

(alarm after 1 minute delay, shutdown after 1 minute alarm)

Over Load Shutdown Level: 120%

(shutdown after 2 second delay)

Short Circuit       Pulsating Type, 40A Peak

Auto-Restart time: 30 seconds



Input

Nominal Voltage              200V/220V/230V/240V

Maximum Continuous Load        1800W

Maximum Peak Load      3000W

Input Frequency              46Hz 65Hz

Phase    Single

Noise Filtering   Full-Time EMI/RFI Filtering

Input EMI Filter 150Khz -30Mhz

Input RFI Filter  30Mhz - 1000Mhz

Over Current Protection               By Re-Settable

Over Current Protector

Voltage Range   180Vac 265Vac

Power Factor     > 0.95

Audible Alarm   Over Load Alarm:

Continuous alarm

Short-Circuit Alarm:

1 beep every 2 seconds

Thermo Alarm:

Every other 2 seconds, 32 beeps in 2 seconds

Inrush Surge Capacity    <150A

Voltage Interruption Ride Through          20mS

Efficiency             >92%



Indicators

LCD        Display Input Voltage, Output Voltage, Output Frequency, Temperature, Load Level

LED         Overload:

X blinks every 4 seconds



Over-Temperature:

X blinks every 2 seconds



Environmental and Safety

Operating Temperature                Up to 2000 Meters:

0° to 45°C

(32°F to 113°F)

Transit/Storage Temp    -15°C to 60°C

(5°F to 140°F)

Relative Humidity            5 – 95% Non-Condensing

Operating Altitude          0 ~ 3000 Meters

Moisture Sensitivity        Sealed Electronics



Cooling

Natural Ventilation          Yes

External Cooling Fan Control       Auto on/off, controlled by heat sink temperature & load level



Physical

Product Dimensions

L×W×H(cm/in)  41.50 × 27.50 × 16.50 cm

16.34 × 10.83 × 6.50 in

Net Product Weight

Net/Gross (kgs/lbs)        12.34 kgs

27.21 lbs

Carton Dimensions

L×W×H(cm/in)  58.00 x 35.00 x 58.00 cm

22.83 x 13.78 x 22.83 in

Shipping Weight               20.32 kgs

44.80 lbs

Warranty             2 Years, Full Replacement

Quality Control Standard              ISO9001

International Approvals                UL-ULus (CCN: QQFU/7) Power Units Other Than Class 2,

UL 1012, Seven Edition, October 14, 2008

UL-cUL: CAN/CSA-C22.2 No. 107.1-01, September, 2001

DEMKO-CB IEC60950-1:2005+A1:2009+A2:2013 (Ed. 2.2)

TUV/SUD-CB IEC 60335-1:2010+A1:2013 (Ed. 5.1)

FCC Part 15: subpart B

EMC 2004/108/EC



Powerxchanger X-15 1800W (15 Amps) Voltage And Frequency Converter (50 <> 60 Hz) Black is a powerful, safe and reliable converter that has plenty of juice to power devices up to 1800 W or 15 Amps. Its clean lines and seamless design make it quite alluring. You can move it from one place to another easily due to its lightweight and compact design. For added user convenience, it can be mounted on a wall. This converter is known for delivering high performance and great efficiency.

What you get

  • Sealed metal casing for ample protection against humidity and dust
  • A fan that automatically cools the electronics whenever the operating temperature exceeds the standard limit
  • Desirable looks, class-leading performance, and hi-tech features
  • Produces continuous power at over 92% efficiency and with output Harmonic distortion below 3%
