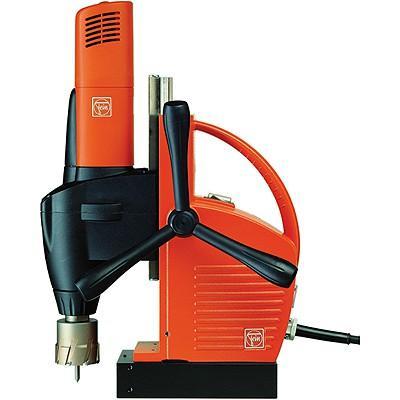

FEIN KBM50QX 2-1/16 INCH MAGNETIC DRILL 230VOLTS

5

The KBM 50 QX covers an extended area of application. Its mechanical two-speed transmission supplies enough torque to core bit with diameters of up to 50 mm. Two electronic speed levels enable reaming and countersinking and also provide a drilling function for hard materials. The KBM 50 QX is one of the lightest tools in its segment and can therefore be used vertically and overhead with ease. Mechanical two-speed transmission with two electronic speed levels enables expanded range of applications and uses such as reaming and countersinking. QuickIN system for fast tool changes without a wrench. Continuously variable double dove-tail guide enables use of long drilling tools without the tool having to be removed from the workpiece. Compact design and optimum power-to-weight ratio. High-torque high-power motor. Speed-controlled tacho electronics. Powerful electromagnet. Electronic magnetic holding force. Integrated cooling lubricant unit. Electronic overload protection. Restart lock.

Product Code: KBM50QX   Product ID: 22406
Product sold by: samstores.com

$ 2595.99

Availability: In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

The KBM 50 QX covers an extended area of application. Its mechanical two-speed transmission supplies enough torque to core bit with diameters of up to 50 mm. Two electronic speed levels enable reaming and countersinking and also provide a drilling function for hard materials. The KBM 50 QX is one of the lightest tools in its segment – and can therefore be used vertically and overhead with ease. Mechanical two-speed transmission with two electronic speed levels enables expanded range of applications and uses such as reaming and countersinking. QuickIN system for fast tool changes without a wrench. Continuously variable double dove-tail guide enables use of long drilling tools without the tool having to be removed from the workpiece. Compact design and optimum power-to-weight ratio. High-torque high-power motor. Speed-controlled tacho electronics. Powerful electromagnet. Electronic magnetic holding force. Integrated cooling lubricant unit. Electronic overload protection. Restart lock.

Specifications
  • Core bit max. Ø: 50 mm
  • Core bit max. drilling depth: 50 mm
  • Twist drill max. Ø: 16 mm
  • Thread cutting max.: 16 M
  • Countersinking max. Ø: 31 mm
  • Reaming max. Ø: 16 mm
  • Power consumption: 1200 Watts
  • Power Output: 680 Watts
  • 1st gear (slow) load speed: 160 RPM
  • 1st gear (fast) load speed: 260 RPM
  • 2nd gear (slow) load speed: 320 RPM
  • 2nd gear (fast) load speed: 520 RPM
  • Core bit holder: QuickIN
  • Stroke: 135 mm
  • Total stroke range: 310 mm
  • Magnet holding force: 11,000 N
  • Magnetic base dimensions: 180 mm x 90 mm
  • Cable with plug: 4 m
  • Weight according to EPTA: 12.8 kg
