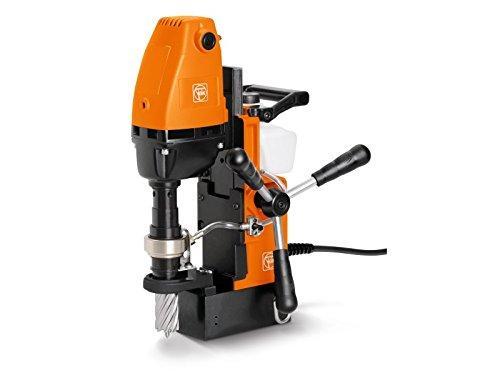

FEIN KBB 38/230 V 38 MM HSS CORE DRILL FOR 220 VOLTS (NOT FOR USA)

FEIN KBB 38/230 V 38 MM HSS CORE DRILL FOR 220 VOLTS (NOT FOR USA)

On-site drilling made easy with the Fein Kbb 38/230 V 38 Mm Hss Core Drill For 220 Volts (Not For USA) core drilling equipment. This drill motor comes with a stable torque which is ideal for core drilling sizes up to 38mm. The drill spindle is guided by a unique guide that assures concentricity and reliable core ejection. This weight-optimized drill comes with an integrated coolant tank (easily removed without tools) for vertical and overhead operations. It also features a Gravity-fed cooling lubricant unit. The device is made using solid die-cast aluminium to give you a long-lasting service life. The wiring for the motor is hidden to prevent any issues while looking good. The device is also easy to use with the addition of an extra handle. Moreover, the design also makes it possible to move the handwheel from one side to the other.

What you get:

• 16.8 KG total weight
• AC power source required
• It does not require batteries
• Concealed motor wiring
• Built for use with HSS cutters
• Includes all essential core drilling functions

Basic core drilling functions

Designed for use with HSS cutters

Concealed motor wiring

Technical Details

Part Number      KBB 38 / 230V

Item Weight       16.8 Kg

Product Dimensions        63.2 x 43.5 x 23.9 cm

Item model number        KBB 38 / 230V

Power Source    AC power

Voltage 240 volts

Wattage               1050 watts

Item Package Quantity   1

Batteries Included?         No

Batteries Required?        No

Weight 16.8 Kilograms

 Product description

Product description

The FEIN KBB 38 core drilling unit for on-site drilling. Stable torque drill motor for core-drilling diameters of up to 38mm. Special drill spindle guide maintains concentricity and ensures reliable core ejection. Weight-optimised drill jig with integrated coolant tank (easily removed without tools) for vertical and overhead working. Integrated gravity-fed cooling lubricant unit. Solid die-cast aluminium construction. Concealed motor wiring. Extra handle for easy transport. Contact and swarf guard. Handwheel can be moved from one side to the other.

Product description

Magnetic core drilling machine up to 38 mm

KBB 38

For accurate drilling on the construction site.

FEIN advantages:

Torque-stable drill motor for demanding core drilling.

High concentricity and reliable core ejection due to special drill spindle guide.

Solid solid construction of die-cast aluminum for working in adverse conditions.

Integrated coolant tank.

Internal motor cable guide.

Additional handle for easy machine transport.

Reversible feed handwheel.

Technical attributes:

HSS core drill max. Ø: 38 mm

Core

Drill Maximum drilling depth: 50 mm Rated input: 1 050 W

Power output: 530 W

No-load speed: 480 1 / min

Load speed: 330 1 / min

Core bit holder : Weldon

Stroke: 65 mm

Magnetic holding force: 9 000 N Magnetic base

dimensions: 159 x 76 mm

cable with plug: 3.8 m

weight according to EPTA: 14.4 kg
