FEIN KBB 30 MAGNETIC CORE DRILL 30 MM 220 VOLTS (NOT FOR USA)

Extremely compact with perfect weight ratio for helping in the height and in confined spaces.

Side WEC Hselbares feed hand wheel for use with special working situations.

Internal motor cable routing prevents it thread or getting caught on the workpiece.

Within cooling.

Technical Details

Part Number      KBB 30 / 230V

Item Weight       17.6 Kg

Package Dimensions       62.8 x 43 x 24.6 cm

Item model number        KBB 30 / 230V

Wattage               750 watts

Item Package Quantity   1

Batteries Included?         No

Batteries Required?        No

Product description

Extremely compact for holes on construction sites.

Extremely compact with perfect output Weight for helping in the height and if you have limited space.

Side WEC Hselbares feed hand wheel for use in special work situations.

Internal motor cable guide prevents it thread or getting caught on the workpiece.

Interior cooling.

Easy Nachjustierung the guides.

Technical details

HSS core drill max. Diameter 30 mm

Core Drill Bit drilling depth max. 50 mm

Power Input 750 W

Output: 430 W

No Load Speed 740/min

Load rpm 430

Core Drill Bit Drill 3/4 in Weldon

Hub 65 mm.

Magnetic Holding Force 9 000 N

Magnetic base – Dimensions 178 x 95 mm

Cable with plug 3.8 m

Weight according to EPTA 10.5 kg

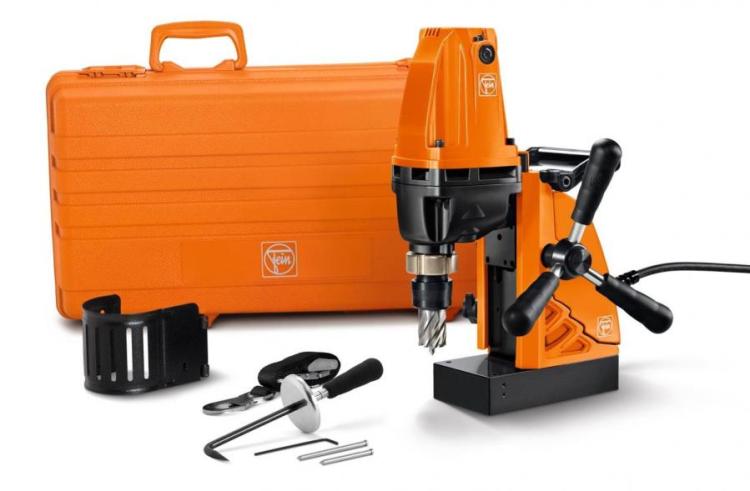

Box Contents

1 Case

1 Coolant Tank

1 lashing strap

1 chip hook

2 pilot pins

1 allen key 5 mm

FEIN advantages:

Extremely compact with perfect power-to-weight ratio for working at height and in confined spaces.

Side-changeable feed handwheel for use in special work situations.

Internal motor cable guide prevents unintentional threading or snagging on the workpiece.

Internal cooling.

Easy readjustment of the guide.

Technical attributes:

HSS core drill max. Ø: 30 mm

Core

Drill Maximum drilling depth: 50 mm Rated input: 750 W

Power output: 430 W Idling

speed: 740 rpm

Load speed: 430 rpm

Core bit holder : Weldon

Stroke: 65 mm

Magnetic holding force: 8 000 N Magnetic base

dimensions: 178 x 95 mm

cable with plug: 3.8 m

weight according to EPTA: 10.0 kg
