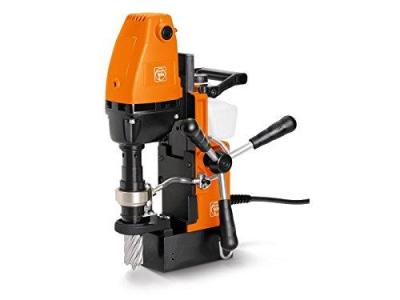

FEIN KBM32Q 1-1/4 INCH MAGNETIC DRILL 220VOLTS

5

The KBM 32 Q allows you to core bit with a diameter of between 12 and 32 mm. Thanks to its compact dimensions and low weight of just 10.5 kg, the KBM 32 Q is ideally suited to on-site installation work. It is easy to attach to the workpiece and enables reliable working throughout the entire process – even if you’re working vertically or overhead. In addition to its high mobility, the tool is characterized by extreme precision and ease of handling. Small, extremely light core drilling unit with excellent handling for vertical and overhead use. QuickIN system for fast tool changes without a wrench. Continuously variable double dove-tail guide enables use of long drilling tools without the tool having to be removed from the workpiece. High-torque high-power motor. Powerful electromagnet. Electronic magnetic holding force. Integrated cooling lubricant unit. Electronic overload protection. Restart lock.

Product Code: FE-KBM32Q   Product ID: 22411
Product sold by: samstores.com

$ 1834.25

Availability: In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

The KBM 32 Q allows you to core bit with a diameter of between 12 and 32 mm. Thanks to its compact dimensions and low weight of just 10.5 kg, the KBM 32 Q is ideally suited to on-site installation work. It is easy to attach to the workpiece and enables reliable working throughout the entire process – even if you’re working vertically or overhead. In addition to its high mobility, the tool is characterized by extreme precision and ease of handling. Small, extremely light core drilling unit with excellent handling for vertical and overhead use. QuickIN system for fast tool changes without a wrench. Continuously variable double dove-tail guide enables use of long drilling tools without the tool having to be removed from the workpiece. High-torque high-power motor. Powerful electromagnet. Electronic magnetic holding force. Integrated cooling lubricant unit. Electronic overload protection. Restart lock.

Specifications
  • Core bit max. Ø: 32 mm
  • Core bit max. drilling depth: 50 mm
  • Twist drill max. Ø: 13 mm
  • Thread cutting max.: 12 M
  • Power consumption: 700 Watts
  • Power Output: 450 Watts
  • No load speed: 550 RPM
  • Load speed: 440 RPM
  • Core bit holder: QuickIN
  • Stroke: 135 mm
  • Total stroke range: 260 mm
  • Magnet holding force: 9,000 N
  • Magnetic base dimensions: 160 mm x 80 mm
  • Cable with plug: 4 m
  • Weight according to EPTA: 10.5 kg

This appliance is not designed for use in America. Only for countries that use 220 / 240 V electrical outlets.
