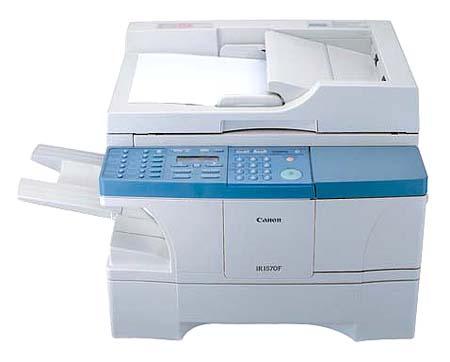

CANNON IR1570F 230 VOLT, 50/60HZ

Cannon IR1570F   230 volt, 50/60Hz, IR1570F combines a fast digital copier, top quality laser printer and high performance fax in one compact machine, meeting all your communication requirements effortlessly.

Canon IR1570F
230 volt, 50/60Hz, IR1570F combines a fast digital copier, top quality laser printer and high performance fax in one compact machine, meeting all your communication requirements effortlessly, Laser copy quality (600x600dpi, 1200x600dpi enhanced), High print resolution (600x600dpi, 2400x600dpi enhanced), Fast 15 ppm output for enhanced productivity, Optional network printing

Product Specification:

Unit Dimension:     15.1 H x 18.7 W x 17.4 D

Unit Weight:          52.9 Lb.

Technical Specification  IR1570F

Voltage                                230V

Hertz                                   50/60Hz

Basic Specifications

Type                                    Desktop

Imaging System                    Laser Dry Electrostatic Transfer System

Image Server Memory           16MB

Interface                              -

First-Copy Time                     13 seconds or less

Warm-Up Time                     From Power Off - 4.5 seconds Max.
From Energy Saver Mode - 1 second Max.

Originals                              Sheets, Books and other 3 dimensional objects (up to 2kg)

Maximum Original Size          A4

Resolution                            Copying: 600 x 600dpi + RST (1200 x 600dpi)
Printing: 2400 x 600dpi (AIR)
Scanning: 600 x 600dpi

Density Adjustment               Text, Photo and Text & Photo

Engine Speeds                      15ppm

Magnification                        Zoom: 50% - 200% (in 1% increments)

Multiple Copies/Prints            1-99 sheets

Paper Supply                        Cassette: 500 sheets (80gsm) A4,
Stack Bypass: 100 sheets (80gsm) A4
ADF: 30 sheets (80gsm) A4

Paper Weights                      Cassette: 64 - 80gsm
Stack Bypass: 56 - 128gsm
ADF: 58 - 128gsm

Dimensions                          475 x 442 x 384mm (W x D x H)

Weight                                 Approx. 24 kg

Power Requirements             Supply: 230V/50Hz - 60Hz
Consumption: 230V/1.9A Max 890W or less

Multi PDL Network Printing

Optional                               Yes

Print Speed                          15ppm

Print Size                             A4 to A5

PDL Support                         CAPT

Memory                               2MB

Network OS                          Network: AXIS Network Adapter (TCP/IP, NetBEUI)
User Software: Windows 95/98/Me/NT4.0/2000/XP/2003 Server, CAPT Printer Driver

Fax

Standard/Optional                 Yes

Modem                                33.6kbps

Compression                        MH, MR, MMR, JBIG

Scanning Speed                    17 sheets/min A4

ADF Capacity                        30 sheets 80gsm

Fax Memory                         -

One Touch Dial                     12

Coded Speed Dial                  100

Group Dial                            Max. 111

This appliance is not designed for use in America -
only for countries that use 220V electrical outlets.
