230volt, 50Hz, Canon Desktop Copier IR 2870 can Print, copy, scan, and fax using a single device, Full document finishing capability, Send, store, retrieve and share data across the network.
Product ID: 8053
Product sold by: samstores.com
Availability: In Stock
iR 2870 230volt, 50Hz, Canon Desktop Copier IR 2870 can Print, copy, scan, and fax using a single device, Full document finishing capability, Send, store, retrieve and share data across the network.

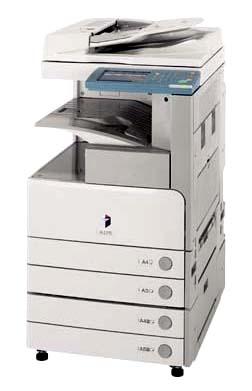

Canon IR2870
230volt, 50Hz, Canon Desktop Copier IR 2870 can Print, copy, scan, and fax using a single device, Full document finishing capability, Send, store, retrieve and share data across the network, Advanced security of confidential data, Java platform for future customisation, Built-in e-maintenance support, It's a flexible, affordable device for medium office workgroups, ships standard with 2 x 550-sheet paper cassettes, image reader, drum unit, 10/100 baseT ethernet, 256MB, USB 2.0 high speed connectivity. You must install either one of the DADF-N1 or platen cover with main unit, DADF-N1 (you must install either one of the DADF-N1 or platen cover with main unit), Platen Cover Type-H (you must install either one of the DADF-N1 or platen cover with main unit), Document Tray-J1, Inner 2 Way Tray-D1 (the Inner 2 Way Tray-D1, Finisher-S1, Finisher-Q3 or Saddle Finisher-Q4 may not be installed simultaneously), Copy Tray-J1 (Option for the Inner 2 Way Tray-D1 and Finisher-S1), 3 Way Unit-A1, Finisher-S1 (the Inner 2 Way Tray-D1, Finisher-S1, Finisher-Q3 or Saddle Finisher-Q4 may not be installed simultaneously), Additional Finisher Tray-B1, Puncher Unit-R1, Finisher-Q3 (the Inner 2 Way Tray-D1, Finisher-S1, Finisher-Q3 or Saddle Finisher-Q4 may not be installed simultaneously), (the Cabinet-P1 or the Cassette Feeding Unit-Y2 must be installed to attach the Finisher-Q3 or Saddle Finisher-Q4 and the Paper Deck-Q1 Buffer Pass Unit-E1 is required to install Finisher-Q3/Saddle Finisher-Q4), Saddle Finisher-Q4 (the Inner 2 Way Tray-D1, Finisher-S1, Finisher-Q3 or Saddle Finisher-Q4 may not be installed simultaneously), (the Cabinet-P1 or the Cassette Feeding Unit-Y2 must be installed to attach the Finisher-Q3 or Saddle Finisher-Q4 and the Paper Deck-Q1 Buffer Pass Unit-E1 is required to install Finisher-Q3/Saddle Finisher-Q4), Buffer Pass-E1, Puncher Unit-M1, Cassette Feeding Unit-Y2 (the Cabinet-P1 or the Cassette Feeding Unit-Y2 must be installed to attach the Finisher-Q3 or Saddle Finisher-Q4 and the Paper Deck-Q1 Buffer Pass Unit-E1 is required to install Finisher-Q3/Saddle Finisher-Q4) (the Cabined-P1 and the Cassette Feeding Unit-Y2 cannot both be installed at the same time), Cabinet-P1 (the Cabinet-P1 or the Cassette Feeding Unit-Y2 must be installed to attach the Finisher-Q3 or Saddle Finisher-Q4 and the Paper Deck-Q1 Buffer Pass Unit-E1 is required to install Finisher-Q3/Saddle Finisher-Q4) (the Cabined-P1 and the Cassette Feeding Unit-Y2 cannot both be installed at the same time), Paper Deck-Q1 (the Cabinet-P1 or the Cassette Feeding Unit-Y2 must be installed to attach the Finisher-Q3 or Saddle Finisher-Q4 and the Paper Deck-Q1 Buffer Pass Unit-E1 is required to install Finisher-Q3/Saddle Finisher-Q4), Envelope Attachment Feeder-C1 (installs in the upper most cassette), FL Cassette-Y1, FL Cassette-Z1, Braille Label Kit-A1, Accessibility Handle-A1, Spanish Operator's Manual (CD).
Product Specification:
Unit Dimension: 30 H x 22.24 W x 27.6 D
Unit Weight: 154 Lb.
Technical Specification IR2870
Voltage 230V
Hertz 50Hz
Basic Specifications
Type Desktop
Maximum Original Size A3
Copy Sizes Cassette: A5R - A3
Stack Bypass: A3-A6, Envelopes
Resolution Scanning: 600dpi x 600dpi
Copying: 1200dpi equivalent x 600 dpi
Printing: 2400dpi equivalent x 600dpi
256 gradations
Copy/Print Speed A4: 28ppm
A3: 14ppm
First Copy Time Less than 4.9 sec
Warm-Up Time 30 sec max (10 sec max from sleep mode)
Multiple Copies/Prints 1 to 999 prints
Duplexing Standard automatic stack less
Paper Weight Cassette: 64 to 80gsm
Stack Bypass: 64 to 128gsm
Cassette: Universal: A5R to A3
Paper Capacity Standard: 550 sheets x 2 cassettes (1100 sheets)
Multi Stack Bypass: 50 sheets (80gsm)
Optional: 550 sheets x 2 cassettes (1100 sheets)
Side paper deck: 2500 sheets
Max paper capacity: 4750 sheets
CPU 300Mhz
Memory 256Mb (Max: 512Mb)
Hard Disk Drive 20GB
Interface Ethernet (100Base-TX/10-Base-T)
Power Supply 230V/6A/50Hz
Power Consumption 1.0kW maximum
Dimensions WxDxH: 565 x 700 x 761mm
Weight Approx. 70kg
Network Printer Kit
Optional/Standard Optional
Model Name Multi-PDL Printer Kit-E1
PDL PCL5c, PCL6, PostScript3 Emulation and UFR II
Resolution 2400 equivalent x600dpi
Memory 256Mb (up to 512Mb)
Hard Disk 20GB (Uses Main Unit HDD)
CPU 300MHz (Uses Main Unit CPU)
PS Fonts Roman136
PCL Fonts Roman80, Bitmap1, Barcode30, OCR2
Supported OS PCL: Windows 98/ME/NT4.0/2000/XP/2003
PS: Windows 98/ME/NT4.0/2000/XP/2003, Mac OSX (10.1.5 or later)
UFR II: Windows 2000/XP/2003
Mac-PPD: Mac OS8 or later, Mac OSX (10.1.5 or later)
Interface Ethernet (100Base-TX/10-Base-T)
Network Protocol TCP/IP (LPD/Port9100/IPP/IPPS/SMB/FTP)
Pull Scan Network TWAIN Driver (150 to 600dpi/Black & White/Halftone)
Universal Send Kit
Optional/Standard Optional
Model Name Universal Send Kit-B1
Scan speed 45 ipm: A4 300/600dpi with DADF
Scan Resolution 100dpi, 200 x 100dpi, 200dpi, 200 x 400dpi, 300dpi, 400dpi, 600dpi
Destinations E-Mail/Internet FAX (SMTP), PC (SMB, FTP, NCP), iWDM
Address Book LDAP, Local (Max. 1800)
File Format Single: TIFF, PDF
Double: TIFF, PDF
Cassette Feeding Unit
Model Name Cassette Feeding Unit-Y2
Type 2 Front-loading adjustable drawers
Paper Weight 64 to 80gsm
Paper Capacity 550 sheets (80gsm) x 2 cassettes
Dimensions 566 x 700 x 251.5mm
Weight Approx. 23kg
DADF
Optional/Standard Optional
Model Name DADF-N1
Paper Size A3-A5R
Paper Weight Single sided original: 42 to 128gsm
Double sided original: 50 to 128gsm
Max. Number of Originals 50 sheets (80gsm)
Document Scanning Speed Copy: A4 28ipm
Scan: A4 45ipm
Paper Deck
Optional/Standard Optional
Model Name Paper Deck-Q1
Paper Size A4
Paper Weight 64 to 105gsm
Paper Capacity 2500 sheets (80gsm)
Finisher
Optional/Standard Optional
Model Name Finisher-S1
Number of Trays One stack tray (Inner) & one optional tray
Tray Capacity One Tray A4-A5R: 1000 sheets
A3: 500 sheets
Two Trays (optional): A3-A5R: 300 sheets on each tray
Staple Position Corner
Finisher
Optional/Standard Optional
Model Name Finisher-Q3
Number of Trays 2 tray (+ optional tray)
Tray Capacity A4-A5R: 1000 sheets
A3: 500 sheets
Staple Position Corner, Double, Saddle Stitch
Staple Capacity A4: 50 sheets
A3: 30 sheets
Saddle Finisher
Optional/Standard Optional
Model Name Saddle Finisher-Q4
Number of Trays 2 tray (+ optional tray)
Tray Capacity A4-A5R: 1000 sheets
A3: 500 sheets
Staple Position Corner, Double, Saddle Stitch
Staple Capacity A4: 50 sheets
A3: 30 sheets
Saddle Stitch Specifications Paper Size: A3, A4R
Staple capacity: 1 to 15 sheets (60pages, 64-80gsm)
1 to 10 sheets (40pages, 81-105gsm)
Paper weight: 64 to 80gsm (128gsm for cover)
Dimensions: 648 x 657 x 1036mm
Weight: 67.6kg
Other Accessories (Optional) Platen Cover-H, Inner 2-way Tray C1, Buffer Pass C1, Copy Tray J1, Puncher Unit L1/N1/P1, iR3100C Pedestal, Envelope Feeder Attachment C1, FL Cassette Y1/Z1, Key Switch UnitA1, Document Tray J1, Staple Cartridge J1, Stamp Ink Cartridge B1, Card Reader C1, Card Reader Kit B, Colour iR256MB Expansion RAM A2, Colour Network UFR Printer Kit B1, Super G3 FAX Board N1, Resolution Switching Board A2, USB Interface Board A3, iR Security Kit, Token Ring N/W/I/F Adapter iN-TR2, Additional Finisher Tray A1
230v ships standard with 2 x 550-sheet paper cassettes, image reader, drum unit, 10/100 baseT ethernet, 256MB, USB 2.0 high speed connectivity. You must install either one of the DADF-N1 or platen cover with main unit
This appliance is not designed for use in
only for countries that use 220V electrical outlets.
