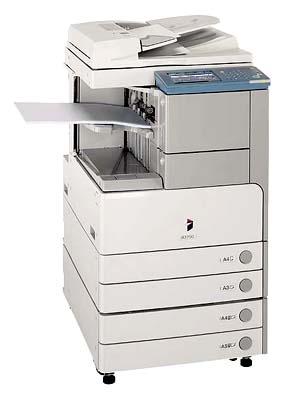

CANON IR3570 230VOLT, 50HZ

Canon ir3570 230volt, 50Hz, Canon Desktop Copier IR 3570 can Print, copy, scan, and fax using a single device, Full document finishing capability, Send, store, retrieve and share data across the network.

Canon IR3570
230volt, 50Hz, Canon Desktop Copier IR 3570 can Print, copy, scan, and fax using a single device, Full document finishing capability, Send, store, retrieve and share data across the network, Advanced security of confidential data, Java platform for future customisation, Built-in e-maintenance support, It's a flexible, affordable device for medium office workgroups, ships standard with 2 x 550-sheet paper cassettes, image reader, drum unit, 10/100 baseT ethernet, 256MB, USB 2.0 high speed connectivity and 3 way Unit-A1. You must install either one of the DADF-N1 or platen cover with main unit, DADF-N1 (you must install either one of the DADF-N1 or platen cover with main unit), Platen Cover Type-H (you must install either one of the DADF-N1 or platen cover with main unit), Document Tray-J1, Inner 2 Way Tray-D1 (the Inner 2 Way Tray-D1, Finisher-S1, Finisher-Q3 or Saddle Finisher-Q4 may not be installed simultaneously), Copy Tray-J1 (Option for the Inner 2 Way Tray-D1 and Finisher-S1), 3 Way Unit-A1, Finisher-S1 (the Inner 2 Way Tray-D1, Finisher-S1, Finisher-Q3 or Saddle Finisher-Q4 may not be installed simultaneously), Additional Finisher Tray-B1, Puncher Unit-R1, Finisher-Q3 (the Inner 2 Way Tray-D1, Finisher-S1, Finisher-Q3 or Saddle Finisher-Q4 may not be installed simultaneously), (the Cabinet-P1 or the Cassette Feeding Unit-Y2 must be installed to attach the Finisher-Q3 or Saddle Finisher-Q4 and the Paper Deck-Q1 Buffer Pass Unit-E1 is required to install Finisher-Q3/Saddle Finisher-Q4), Saddle Finisher-Q4 (the Inner 2 Way Tray-D1, Finisher-S1, Finisher-Q3 or Saddle Finisher-Q4 may not be installed simultaneously), (the Cabinet-P1 or the Cassette Feeding Unit-Y2 must be installed to attach the Finisher-Q3 or Saddle Finisher-Q4 and the Paper Deck-Q1 Buffer Pass Unit-E1 is required to install Finisher-Q3/Saddle Finisher-Q4), Buffer Pass-E1, Puncher Unit-M1, Cassette Feeding Unit-Y2 (the Cabinet-P1 or the Cassette Feeding Unit-Y2 must be installed to attach the Finisher-Q3 or Saddle Finisher-Q4 and the Paper Deck-Q1 Buffer Pass Unit-E1 is required to install Finisher-Q3/Saddle Finisher-Q4) (the Cabined-P1 and the Cassette Feeding Unit-Y2 cannot both be installed at the same time), Cabinet-P1 (the Cabinet-P1 or the Cassette Feeding Unit-Y2 must be installed to attach the Finisher-Q3 or Saddle Finisher-Q4 and the Paper Deck-Q1 Buffer Pass Unit-E1 is required to install Finisher-Q3/Saddle Finisher-Q4) (the Cabined-P1 and the Cassette Feeding Unit-Y2 cannot both be installed at the same time), Paper Deck-Q1 (the Cabinet-P1 or the Cassette Feeding Unit-Y2 must be installed to attach the Finisher-Q3 or Saddle Finisher-Q4 and the Paper Deck-Q1 Buffer Pass Unit-E1 is required to install Finisher-Q3/Saddle Finisher-Q4), Envelope Attachment Feeder-C1 (installs in the upper most cassette), FL Cassette-Y1, FL Cassette-Z1, Braille Label Kit-A1, Accessibility Handle-A1, Spanish Operator's Manual (CD).

Product Specification:

Unit Dimension:     30 H x 22.24 W x 27.6 D

Unit Weight:          154 Lb.

Technical Specification  IR3570

Voltage                                230V

Hertz                                   50Hz

Basic Specifications

Type                                    Desktop

Maximum Original Size          A3

Copy Sizes                           Cassette: A5R - A3
Stack Bypass: A3-A6, Envelopes

Resolution                            Scanning: 600dpi x 600dpi
Copying: 1200dpi equivalent x 600 dpi
Printing: 2400dpi equivalent x 600dpi
256 gradations

Copy/Print Speed                   A4: 35ppm
A3: 22ppm

First Copy Time                     Less than 4.9 sec

Warm-Up Time                      30 sec max (10 sec max from sleep mode)

Multiple Copies/Prints            1 to 999 prints

Duplexing                             Standard automatic stack less

Paper Weight                        Cassette: 64 to 80gsm
Stack Bypass: 64 to 128gsm
Cassette: Universal: A5R to A3

Paper Capacity                     Standard: 550 sheets x 2 cassettes (1100 sheets)
Multi Stack Bypass: 50 sheets (80gsm)
Optional: 550 sheets x 2 cassettes (1100 sheets)
Side paper deck: 2500 sheets
Max paper capacity: 4750 sheets

CPU                                     300Mhz

Memory                               256Mb (Max: 512Mb)

Hard Disk Drive                     20GB

Interface                              Ethernet (100Base-TX/10-Base-T)

Power Supply                       230V/6A/50Hz

Power Consumption              1.0kW maximum

Dimensions                          WxDxH: 565 x 700 x 761mm

Weight                                 Approx. 70kg

Network Printer Kit

Optional/Standard                 Optional

Model Name                         Multi-PDL Printer Kit-E1

PDL                                     PCL5c, PCL6, PostScript3 Emulation and UFR II

Resolution                            2400 equivalent x600dpi

Memory                               256Mb (up to 512Mb)

Hard Disk                             20GB (Uses Main Unit HDD)

CPU                                     300MHz (Uses Main Unit CPU)

PS Fonts                              Roman136

PCL Fonts                             Roman80, Bitmap1, Barcode30, OCR2

Supported OS                       PCL: Windows 98/ME/NT4.0/2000/XP/2003
PS: Windows 98/ME/NT4.0/2000/XP/2003, Mac OSX (10.1.5 or later)
UFR II: Windows 2000/XP/2003
Mac-PPD: Mac OS8 or later, Mac OSX (10.1.5 or later)

Interface                              Ethernet (100Base-TX/10-Base-T)

Network Protocol                  TCP/IP (LPD/Port9100/IPP/IPPS/SMB/FTP)

Pull Scan                              Network TWAIN Driver (150 to 600dpi/Black & White/Halftone)

Universal Send Kit

Optional/Standard                 Optional

Model Name                         Universal Send Kit-B1

Scan speed                          45 ipm: A4 300/600dpi with DADF

Scan Resolution                    100dpi, 200 x 100dpi, 200dpi, 200 x 400dpi, 300dpi, 400dpi, 600dpi

Destinations                         E-Mail/Internet FAX (SMTP), PC (SMB, FTP, NCP), iWDM

Address Book                       LDAP, Local (Max. 1800)

File Format                           Single: TIFF, PDF
Double: TIFF, PDF

Cassette Feeding Unit

Model Name                         Cassette Feeding Unit-Y2

Type                                    2 Front-loading adjustable drawers

Paper Weight                        64 to 80gsm

Paper Capacity                     550 sheets (80gsm) x 2 cassettes

Dimensions                          566 x 700 x 251.5mm

Weight                                 Approx. 23kg

DADF

Optional/Standard                 Optional

Model Name                         DADF-N1

Paper Size                            A3-A5R

Paper Weight                        Single sided original: 42 to 128gsm
Double sided original: 50 to 128gsm

Max. Number of Originals       50 sheets (80gsm)

Document Scanning Speed     Copy: A4 35ipm
Scan: A4 45ipm

Paper Deck

Optional/Standard                 Optional

Model Name                         Paper Deck-Q1

Paper Size                            A4

Paper Weight                        64 to 105gsm

Paper Capacity                     2500 sheets (80gsm)

Finisher

Optional/Standard                 Optional

Model Name                         Finisher-S1

Number of Trays                   One stack tray (Inner) & one optional tray

Tray Capacity                        One Tray A4-A5R: 1000 sheets
A3: 500 sheets
Two Trays (optional): A3-A5R: 300 sheets on each tray

Staple Position                      Corner

Finisher

Optional/Standard                 Optional

Model Name                         Finisher-Q3

Number of Trays                   2 tray (+ optional tray)

Tray Capacity                        A4-A5R: 1000 sheets
A3: 500 sheets

Staple Position                      Corner, Double, Saddle Stitch

Staple Capacity                     A4: 50 sheets
A3: 30 sheets

Saddle Finisher

Optional/Standard                 Optional

Model Name                         Saddle Finisher-Q4

Number of Trays                   2 tray (+ optional tray)

Tray Capacity                        A4-A5R: 1000 sheets
A3: 500 sheets

Staple Position                      Corner, Double, Saddle Stitch

Staple Capacity                     A4: 50 sheets
A3: 30 sheets

Saddle Stitch Specifications   Paper Size: A3, A4R
Staple capacity: 1 to 15 sheets (60pages, 64-80gsm)
1 to 10 sheets (40pages, 81-105gsm)
Paper weight: 64 to 80gsm (128gsm for cover)
Dimensions: 648 x 657 x 1036mm
Weight: 67.6kg

Other Accessories (Optional)  Platen Cover-H, Inner 2-way Tray C1, Buffer Pass C1, Copy Tray J1, Puncher Unit L1/N1/P1, iR3100C Pedestal, Envelope Feeder Attachment C1, FL Cassette Y1/Z1, Key Switch UnitA1, Document Tray J1, Staple Cartridge J1, Stamp Ink Cartridge B1, Card Reader C1, Card Reader Kit B, Colour iR256MB Expansion RAM A2, Colour Network UFR Printer Kit B1, Super G3 FAX Board N1, Resolution Switching Board A2, USB Interface Board A3, iR Security Kit, Token Ring N/W/I/F Adapter iN-TR2, Additional Finisher Tray A1

This appliance is not designed for use in America

 only for countries that use 220V electrical outlets.
