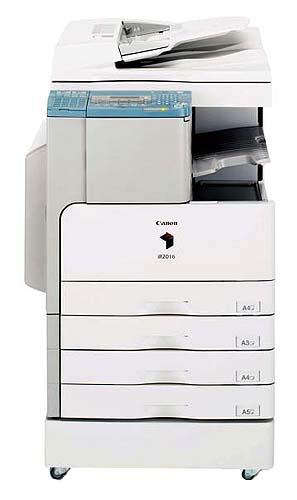

CANNON IR2016 220-240VOLT, 50/60HZ

Cannon IR2016  220-240Volt, 50/60Hz Desktop Copier with Multifunctional print, copy and fax capabilities, Quality prints at up to 1,200 dpi, Space saving and scaleable, Double siding and stapling supported.

Canon IR2016
220-240Volt, 50/60Hz Desktop Copier with Multifunctional print, copy and fax capabilities, Quality prints at up to 1,200 dpi, Space saving and scaleable, Double siding and stapling supported, Simple network integration, Energy saving mode & fast recovery, e-Maintenance for advanced support, Standard Configuration (Main unit, drum cartridge, quick start guide, driver CD-Rom, English manual).

Product Specification:

Unit Dimension:     22.9 H x 24.5 W x 24.9 D

Unit Weight:          87.30 Lb.

Technical Specification      IR2016

Voltage                              220-240V

Hertz                                   50/60Hz

Basic Specifications

Type                                   Desktop

Maximum Original Size  A3, 297 x 432mm

Copy Sizes                       Cassette: A5 - A3
Stack Bypass: A5R - A3, Envelopes

Resolution                        Scanning: 600dpi x 600dpi (iR2016/2020 only)
Copying: 1200dpi equivalent x 600dpi
Printing: 1200dpi equivalent x 600dpi, Opt: 1200dpi x 1200dpi (UFRII LT)
256 Gradations

Copy/Print Speed           A4: 16cpm (iR2016/2016J), 20cpm (iR2020)
A3: 10cpm for iR2016/2016J/2020

Magnification                   Zoom: 50-200%
Fixed: 50%, 70%, 100%, 141%, 200%

First Copy Time               7.9 sec

Warm-Up Time                 Approx. 13 seconds

Multiple Copies/Prints   1 to 99 sheets

Duplexing                         Optional Automatic Stack less

Paper Weight                   Cassette: 64 to 90g/m2
Stack Bypass: 64 to 128g/m2
Duplex: 64 to 90g/m2

Cassette                            Universal: A5 - A3

Paper Capacity                Standard: 250 sheets x 2 cassettes (80g/m2, 500 sheets) for iR2020, 250 sheets x 1 cassettes (80g/m2, 250 sheets) for iR2016J/iR2016
Multi Stack Bypass: 80 sheets (80g/m2) for A5R to A4, 50 sheets for A3 (80g/m2)
Optional: 250 sheets x 2 cassettes (500 sheets) for iR2020, 250 sheets x 3 cassettes (750 sheets) for iR2016J/iR2016, 250 sheets x 1 cassette for iR2016J/iR2016. Max total paper capacity: 1,080 sheets

CPU                                    Canon Custom Processor, 192MHz

Memory                              128MB to 256MB (optional with PCL Kit)

Interface                            Ethernet (100Base-TX/10Base-T, Optional), USB

Power Supply                  220V AC to 240V AC +/- 10% (50/60Hz)

Power Consumption      1.6kW max.

Dimensions                      622 (W) x 633.4 (D) x 665.4 (H) mm (iR2020)
622 (W) x 633.4 (D) x 580.5 (H) mm (iR2016/2016J)

Weight                                46.0kg (iR2020)
Approx. 39.6kg (iR2016J/iR2016)

Network Printer Kit

Model Name                     UFRII LT Printer Kit-J2 (Not available for iR2016J)

PDL                                     UFRII LT, Ethernet Board is included

Resolution                        1200 equivalent x 600dpi, 1200dpi x 1200dpi (PCL Kit-J1 required)

Memory                              128MB standard, 256MB optional with PCL Kit-J1 (uses Main Unit RAM)

CPU                                    Canon Custom Processor 192MHz (uses Main Unit CPU)

Supported OS                  UFRII Lite: Windows 98/Me/2000/XP/2003 Server

Interface                            Ethernet (100Base-TX/10Base-T), USB 2.0

Network Protocol            TCP/IP (LPD/RAW/Port9100)

Network Printer Kit

Model Name                     PCL Printer Kit-J1 (Not available for iR2016J)

PDL                                     PCL 5e, PCL 6

Resolution                        1200 equivalent x 600dpi

Memory                              256MB

CPU                                    Canon Customer Processor 192MHz (uses Main Unit CPU)

PCL Fonts                         Roman 113 (including Barcode Fonts)

Supported OS                  PCL: Windows 98/Me/NT4.0/2000/XP/2003 Server

Interface                            Ethernet (100Base-TX/10base-T), USB 2.0

Network Protocol            TCP/IP (LPD/RAW/Port9100)

Cassette Feeding Unit

Model Name                     Module-J1/K1 (Power Supply Kit-Q1 required for K1)

Type                                   Front-loading adjustable drawers

Paper Weight                   64 to 90g/m2

Paper Capacity                J1: 250 sheets (80g/m2) x 1 cassettes for iR2016/2016J; K1: 250 sheets (80 g/m2) x 2 cassettes for iR2020; J1 and K1: 250 sheets (80 g/m2) x 3 cassettes for iR2016/2016J

Dimensions                      J1: 580. 3 (W) x 569.3 (D) x 116.8 (H) mm; K1: 580. 3 (W) x 569.3 (D) x 201.8 (H) mm

DADF

Model Name                     DADF-P1

Paper Size                        A3 - A5R

Paper Weight                   52 g/m2 to 105 g/m2 (one-page scanning for 37 g/m2 to 52 g/m2 and 105 g/m2 to 128 g/m2)

Max. Number of Originals            A5R to A4: 50 sheets (80 g/m2)
A3: 25 sheets (80 g/m2)

Document Scanning Speed        Copy: A4 20ipm

Dimensions                      565 (W) x 489.4 (H) x 122 (H) mm

Weight                                Approx 7.0kg

Finisher

Model Name                     Inner 2 Way Tray-E1 (Power Supply Kit-Q1 required)

Tray Capacity                   Tray A: A4: 100 sheets, Other: 50 sheets
Tray B: A4: 350 sheets, Other: 100 sheets

Finisher

Model Name                     Finisher-U1 (Power Supply Kit-Q1 required)

Number of Trays             One stack tray + Optional Tray (Inner)

Tray Capacity                   Standard: A4/A5/A5R: 770 sheets or 100mm; A4R/A3: 380 sheets or 50mm
With Optional Tray: Tray A: A4/A5/A5R 200 sheets, A4R/A3: 150 sheets; Tray B: A4/A5/A5R 200 sheets, A4R/A3: 150 sheets

Staple Position                Corner

Staple Capacity               A4: 50 sheets; A3/A4R/ A3: 150 sheets

Other Accessories

Other Accessories (Optional)      Platen Cover Type J
Stamp Ink cartridge-B1
Duplex Unit-A1 (Power Supply Unit-Q1 required)
Super G3 FAX Board-T1
Fax Panel-A1 (required for Super G3 FAX Board-T1)
iR2016/20 Plain Pedestal High (for 2 cassettes configuration)
iR2016/20 Plain Pedestal Low (for 4 cassettes configuration)
FL Cassette-AC1
Staple Cartridge-J1
Stamp Inc Cartridge-B1
Additional Finisher Tray-C1 (optional for Finisher-U1)
Card Reader-E1
Card Reader Kit-C1
Power Supply Kit-Q1 (Required for Finisher, Inner 2way Tray, Cassette Feeding Module-K1 and Duplex option)

230V), Main unit, drum cartridge, quick start guide, driver CD-Rom, English manual.

.

This appliance is not designed for use in America -
only for countries that use 220V electrical outlets.
