ATEN VS0108H 8-PORT HIGH DEFINITION DIGITAL VIDEO/AUDIO SPLITTER 110 VOLTS ONLY FOR USE IN USA

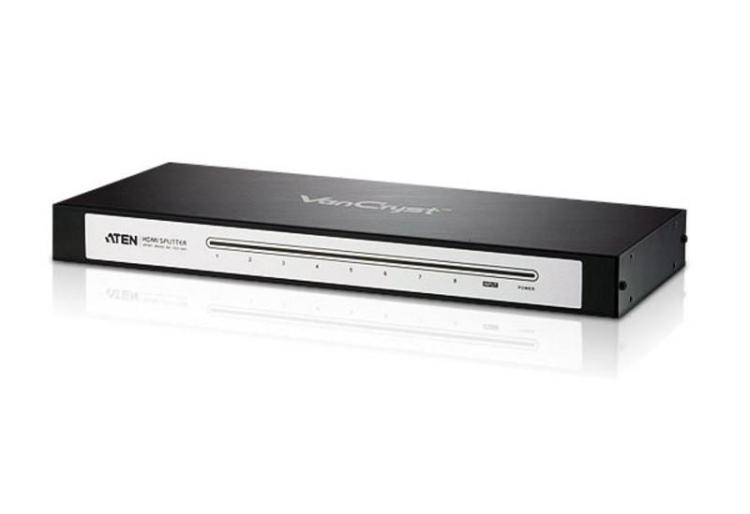

The VS0108H HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to eight HDMI displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays. The VS0108H HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.

FEATURES

Connects one HDMI video source to 8 HDMI displays at the same time

Cascadable to three levels

Supports Dolby True HD and DTS HD Master Audio

Up to 60 Hz refresh rate

Long distance transmission - 20 m (24 AWG) and 15 m (28AWG)

Superior video quality - HDTV resolution of 480p, 720p, 1080i and 1080p (1920x1080); VGA, SVGA, SXGA, UXGA and WUXGA (1920x1200)

Supports 12-bit Deep Color for HDMI formats

DDC Compatible

HDMI 1.3b compliant

HDCP 1.1 compliant

HDMI CEC compliant

Signaling rates up to 2.25 Gbits in support of 1080p display

Rack Mountable

SPECIFICATIONS

Video connections

Output 8

Input      1

Connectors

Video Output      1 x HDMI Type A Female

Video Input         8 x HDMI Type A Female

Power   1 x DC Jack

LEDs

Power On            1 (Orange)

Video Resolution              HDTV up to 1080p; computer up to WUXGA (1920x1200)

Power Consumption        DC5.3V, 6.8W

Environment

Humidity              0-80% RH, Non-condensing

Operation Temperature 32-122°F (0 - 50°C)

Storage Temperature      -4-140°F (-20 - 60°C)

Physical Properties

Unit Weight        3.9 Lbs.

Case Qty              3

Case Weight       18.7 Lbs.

Case Dimension                22.5x 17.9x 10.5 in.

Unit Package Dimensions              21.3x 4.6x 9.2 in.

Unit Weight with package             5.5 Lbs.

Unit Dimension 17x 6.1x 1.7 in.

Package Contents

1x VS0108H 8-Port HDMI Splitter

1x Power Adapter

1x Rack Mount Kit

1x User Guide

110 Volts Only for use in USA
