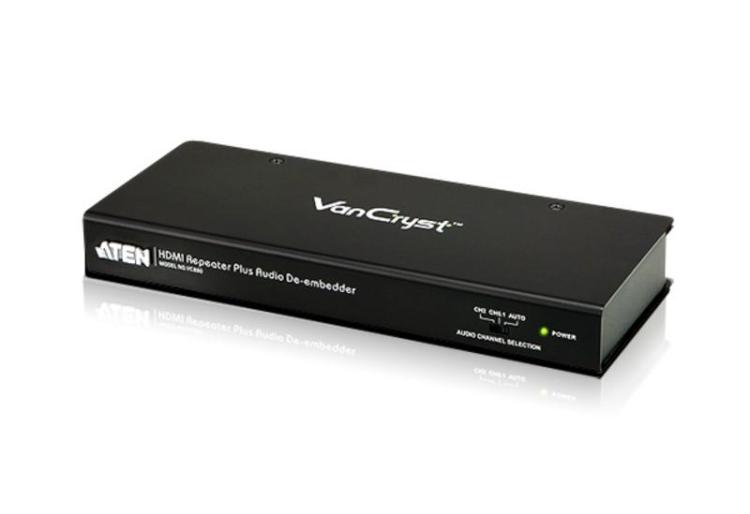

ATEN VC880 HD VIDEO/AUDIO REPEATER AND AUDIO DEEMBEDDER 110 VOLTS ONLY FOR USE IN USA

The VC880 is an HDMI Repeater with an added audio de-embedder that extracts and converts the audio signal from the HDMI input. This means that as well as the repeated HDMI audio and video signal output, users can also choose between analog stereo audio via RCA connectors or digital audio via optical or coaxial connectors as an additional high quality audio output. With support for 3D TV formats, the VC880 is ideal for users who want to enjoy high defi nition video with their choice of high defi nition audio output on TVs, projectors, A/V receivers or speakers.

FEATURES

Repeats HDMI input signal up to 15 meters

Extracts HDMI audio signal and outputs as additional audio source

Supports optical / coaxial digital audio and analog stereo audio

HDMI and HDCP compatible

Super Video Quality – up to 1920x1080 (1080p)

Firmware upgradable

CH2/CH5.1/Auto mode audio channel selection

Supports 3D video

Supports Audio on/off switch for HDMI output

Expandable to three levels – provides three levels of audio output for one HDMI at distance up to 45 m

SPECIFICATIONS

Connectors

Video Input         1 x HDMI Female

Video Output      1 x HDMI Female

Audio Output      1 x TOSLINK (Optical) / 1 x RCA (Coaxial) / 2 x RCA (Stereo)

Power   1 x DC Jack

Console Connectors

Flash ROM Upgrade         1 x 4-conductor 3.5 mm Jack

LEDs

Power On            1 x (Green)

Switches

Mode Selection Audio Channel - 1 x Slide Switch / HDMI Audio On/Off - 1 x Slide Switch

F/W Upgrade      1 x semi-recessed pushbutton

Power

Voltage                5.3 VDc

Amps     150 mA

Power Consumption        0.8 W - 3 BTU / hr

Power Adaptor Part #

for North America

Physical Properties

Unit Weight        1 lb.

Case Qty              20

Case Weight       32.9 lb.

Case Dimension                19.3x 12.4x 13.3 in.

Unit Package Dimensions              9.4x 6.3x 2.4 in

Unit Weight with package             1.2 lb.

Unit Dimension 7.9x 3.2x 1 in.

Package Contents

1x VC880 HDMI Repeater Plus Audio De-embedder

1x Power Adapter

1x User Guide

110 Volts Only for use in USA
