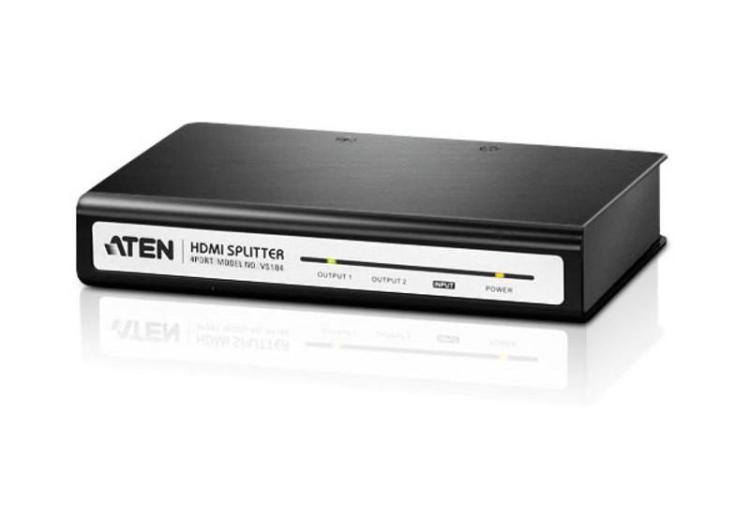

ATEN VS184 4 PORT HIGH DEFINITION DIGITAL VIDEO/AUDIO VIDEO SPLITTER 110 VOLTS ONLY FOR USE IN USA

The VS184 HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.

The VS184 HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.

FEATURES

Connects one HDMI A/V source to four HDMI displays at the same time

Supports high-resolution video - HDTV resolution of 480p, 720p, 1080i and 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200), WUXGA (1920x1200)

Cascade distance: Source to Device -1.8m, Device to Device-15m,Device to Display-20m

Supports 12-bit Deep Color for HDMI formats

Cascadable to 3 levels - provides up to 64 HDMI signals.

Long distance transmission - 20 m (24 AWG HDMI standard cable) and 15 m (28AWG HDMI standard cable)

DDC compatible

HDMI 1.3b compliant

HDCP 1.1 compliant

Signaling rates up to 2.25Gbits in support of 1080p display

All-metal casing

LED indication of display devices

Plug-and-play - no software installation required

Easy and affordable way to take your home theater system to the next level, or upgrade presentations, training, and video broadcasts in a corporate, educational, or commercial setting.

SPECIFICATIONS

Power

Voltage                5.3 VDC

Amps     2.4A

LEDs

Power On            1 x Orange

Selected               2 x Green

Input      1 x Green

Connectors (Input)           1 x HDMI v1.3b

Connectors (Output)        2 x HDMI v1.3b

Video connections

Input      1 x HDMI (v 1.3b)

Output 2 x HDMI (v 1.3b)

Power Input Rating

Per AC Power Inlet, 50/60Hz         110V-240V

Power Adaptor Part #

for North America            0AD8-0605-24EG

for Continental Europe   0AD6-1605-241G

for UK   0AD4-3605-241G

Physical Properties

Unit Weight        0.66 lbs

Housing               Metal

Case Weight       27.5 lbs

Unit Weight with package             1.3 lbs

Case Dimension                19.7 x 13 x 13.4 in

Case Qty              20

Unit Dimension 5 x 3.2 x 1 in

Unit Package Dimensions              9.375 x 6.31 x 2.63 in

The specification and pictures are subject to change without notice.

All trademarks and logos are the properties of their respective holders.

Package Contents

1x HD Video/Audio Splitter

1x HDMI Cable

1x Power Adapter

1x User Guide

110 Volts Only for use in USA
