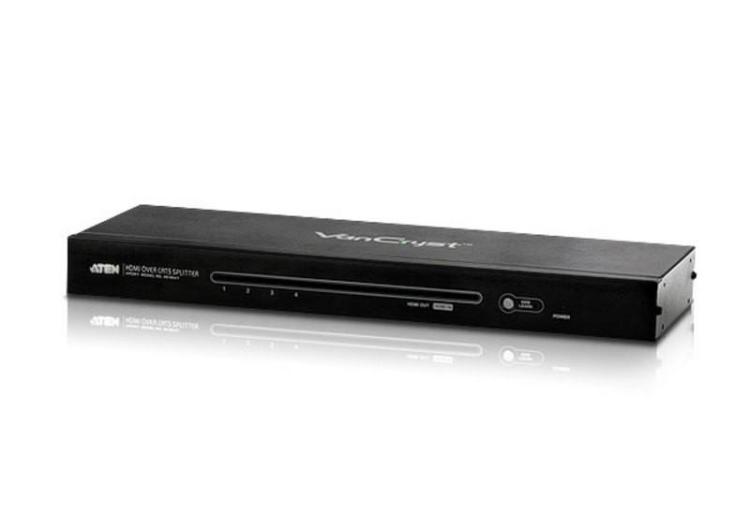

ATEN VS1804T 4-PORT CAT5 HD DIGITAL VIDEO/AUDIO DISTRIBUTION UNIT 110 VOLTS ONLY FOR USE IN USA

The ATEN VS1804T HDMI Over Cat 5 Splitter is the quickest and most efficient way to move HDMI multimedia content and HDCP information from input source to 4 displays. A one-to-many, point-to-multipoint system for transmission of high definition video and audio, the VS1804T transmits rich multimedia content in real time from HDMI source devices to HDMI display devices over Cat 5e cables. The VS1804T can support multi-displays when combined in an installation with ATEN's HDMI extender*.

The VS1804T provides the flexibility you need for a customized digital signage or HDMI display installation, allowing you to set up your display device 60 m (200 ft) from the HDMI source devices. The VS1804T solution is ideal for any installation that requires HDMI content to be delivered to multiple destinations, such as: • In-store or tradeshow digital signage • Broadcasting information to public locations (news, airline and train schedule and arrival/departure information) • Sporting events • Theater and lecture overview rooms • Classroom and company training facilities Note*: Compatible receiving device is VE800R

FEATURES

One HDMI input to 4 HDMI outputs via Cat 5e cables

Extends displays up to 60 m

Supports HDMI (3D, Deep color)

Offers local HDMI output

HDCP compatible

Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control

Cascadable to three levels

Supports superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)

EDID mode selection

Rack-mountable

SPECIFICATIONS

Connectors         HDMI In               1 x HDMI Type A Female (Black)

HDMI Out            Local     1 x HDMI Type A Female (Black)

Line Out

(Cat 5)   TMDS    4 x RJ-45 Female

DDC       4 x RJ-45 Female

RS-232 1 x DB-9 Female (Black)

Power   1 x DC Jack

Switches              EDID Mode         1 x 8-Position Switch

EDID Learn Mode             1 x Pushbutton

LEDs      Power   1 (Green)

HDMI In               1 (Green)

HDMI Out            1 (Green)

EDID Learn          1 (Green / Red)

Line Out               4 (Green)

Video     1080p @ 40 m; 1080i @ 60 m

Power Consumption        DC5.3V, 8W

Environment       Operating Temp.              0-50°C

Storage Temp.   -20-60°C

Humidity              0-80% RH, Non-condensing

Physical

Properties           Housing               Metal

Weight 2.10 kg

Dimensions

( L x W x H )         43.24 x 15.41 x 4.40 cm

Package Contents

1x VS1804T 4-Port HD Video/Audio Over Cat 5 Splitter

1x Power Adapter

1x Foot Pad Set (4 pcs)

1x Rack Mount Kit

1x User Instructions

110 Volts Only for use in USA
