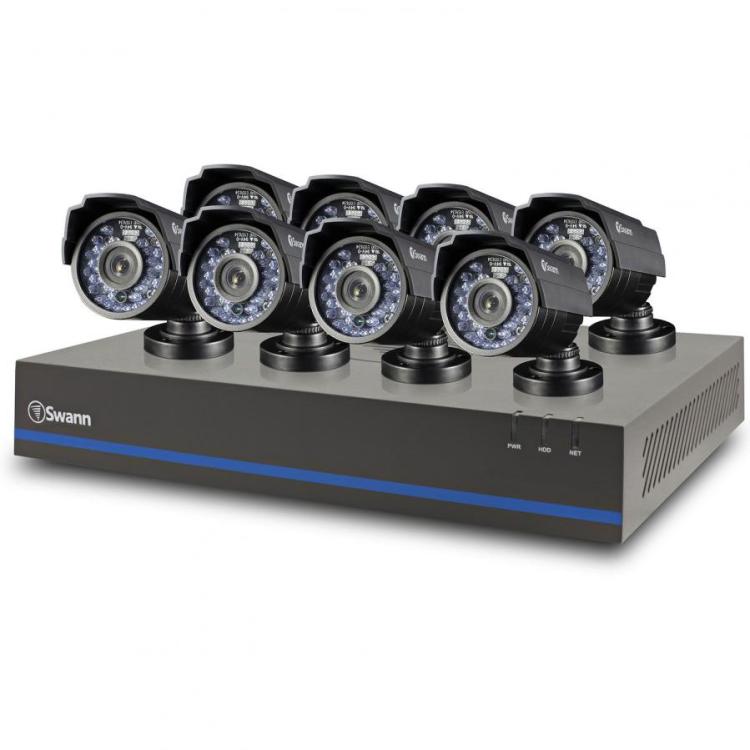

SWANN SWHDK-880508-US 8 CHANNEL SECURITY SYSTEM WITH 1TB HARD DRIVE, 8 1MP CAMERAS, 720P SDI DVR, AND 82' NIGHT VISION 110-220 VOLTS

About this item

HD 720P Live Viewing and Playback

Includes 8 Clear resolution 1MP Cameras

30 Days+ Continuous recording to 1TB HDD

Durable casing with IP67 Weatherproof Rating and cable threaded through stand

Description

    View and record from 8 cameras simultaneously during the day, night, indoors or outdoors

    Includes 8 x clear resolution 1MP cameras with powerful night vision up to 82ft/25m and IP67 weatherproof rating for indoor/outdoor use.

    Set and forget by recording continuously from 8 channels for 30 days+ onto a 1TB hard drive, even longer with motion detection, for extra capacity connect external hard drive to eSATA port

    Save time and have peace of mind by easily locating incident video, then transfer to USB flashdrive

    Connect to the internet and Smartphone in minutes with SwannLink ‘Peer to Peer’ technology

    Use your 3G/4G capable Smartphone and tablet on the free SwannView Plus app to access the system

    A cutting-edge solution for any home or business wanting high resolution video monitoring

Specifications

System

Number of Cameras:      8 Cameras

Number of Channels:     8 Channels

Hard Drive Space:            1 TB HDD (Installed)

Wired or Wireless:           Wired

Average Minimum Setup Time: 2 hours of installation

DVR

DVR Model:        SRHDR-88050H-US

Number of Channels:     8 Channels

Number of Channels with Audio:              Not available

Hard Drive Size:                1TB Hard Drive

Maximum Hard Drive Expandability:        4 TB Hard Drive

Recording Resolution:    1080p

Recording Frames per Second:  30FPS

Recording Compression:               H.264

Recording Modes Available:        Manual / Motion / Schedule

Wireless Camera Receiver:          Not available

Video Motion Detection Recording:        Yes

Pre-Event Recording/Capacity:  Yes/ 10 seconds

Mobile App Viewing:      Windows, Mac OS, iOS, Android, 3G/4G Smartphones & Tablets

E-Mail Alert Notification:              Yes

Maximum Number of Remote Viewers:                10

Playback and Search Options:     Not available

Data Backup Options:     USB Flash drive

Digital Zoom:      Not available

Pan-Tilt-Zoom Controls:                Not available

Still Frame Capture:        Not available

Alarm Terminal Trigger Recording / # of Inputs:  Not available

External Alarm Ouput Contact(s):             Not available

Operating System:          NTSC

Included Accessories:    HDR8-8050™ 1TB Hard Drive (installed) NHD-810™ Cameras x 4 SDI BNC Cables 60ft/18m x 8 HDMI Cable Mouse Power Adapter x 2 Mounting Screws & Plugs Operating Instructions Theft Deterrent Stickers

Camera Cable Connection Type:               Not specified

Compatible Cameras:     Compatible with Swann SWSHD-810CAM

DVR Dimensions:             Not specified

Camera

Camera Model and Type:             SHD-810CAM-US

Number of Cameras:      8

Image Sensor Type:        1/3” Progressive Scan CMOS

TV Lines:              720

Resolution:         1MP

Effective Pixels:                1280x720

Aperture:            Not specified

Focal Length (35mm Equivalent):              3.6mm

Pan-Tilt-Zoom Capability:             Not specified

Optical Zoom:    Not specified

Angle of View:  70°

Color or Black and White:             Color during day, Black & White at night

Wireless Camera-DVR Connection:          Not available

Audio Capability:              Not available

Number of Infrared LEDs:            36

Night Vision Distance:    82'

Recommended for Outdoor Use:             Yes

Weather Resistance (IP Rating):                IP67 Weatherproof Rating

Operating Temperature:              4°F ~ 122°F / -20°C ~ 50°C

Operating Humidity:       Not specified

Tamper Protection:         Not specified

Compatible DVRs:            Swann HDR-8050

Compatible Cables and Connector Type:               SDI BNC Cables

Length of Cable Included:            SDI BNC Cables 60ft/18m x 8

Camera Dimensions:      2.76"x 5.89"

Technical Support

Phone Number:               1(800)627-2799

Hours of Availability:       Monday-Sunday 24/7

Web Support URL:           www.swann.com

Package Contents

HDR8-8050

1TB Hard Drive (installed)

NHD-810™ Cameras x 4

SDI BNC Cables 60ft/18m x 8

HDMI Cable

Mouse

Power Adapter x 2

Mounting Screws & Plugs

Operating Instructions

Theft Deterrent Stickers

Assembled Country

China
