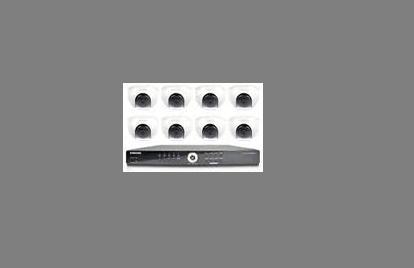

SDE-4002N is 8 channel home surveillance system. This is an all-in-one system Samsung security system that comes with a security DVR and 8 Samsung security cameras. The SDE-4002N will come with 4 outdoor box security cameras (SEB-1007R) and 4 dome cameras (SED-1001R) for indoor use. The outdoor box security cameras have a rating of IP66, making it completely weatherproof. The Samsung surveillance cameras will connect to your Samsung security DVR through a single RJ-45 (CAT5e) Cable (SEA-C200)
Product Code: SA-SDE4002N Product ID: 20722
Product sold by: samstores.com
SDE-4002N comes with 1 TB HDD and utilizing H.264 compression technology. This will give your Samsung DVR the maximum recording time. Your Samsung security system will have remote monitoring through your PC or on your Smartphone. You can also set your Samsung surveillance cameras to motion detection to have your DVR security system give you email alerts in case motion is detected. Your DVR security system can also be linked with other Samsung security systems through smartviewer. You can monitor multiple units together in one location, giving you convenience and security all at once.
Your Surveillance DVR and Video Surveillance Cameras Includes the following features:
Smartphone and PC ready. View Anytime/Anywhere! Remote viewing on Internet Explorer or iPOLis mobile. iPOLis mobile available on your iphone and android devices.
4 IP66 weatherproof security cameras (SEB-1007R)
4 Indoor dome security cameras (SED-1001R]
8 x 60ft of RJ-45 CAT5e cables included (SEA-C200)
Both indoor and outdoor surveillance cameras record at 520TVL.
240 total FPS (Frames per second)
1TB of storage USB 2.0 and records using H.264 compression technology.
Can set for either continuous recording or motion detection mode. DVR will send email notification when motion is detected in the motion detection mode.
Can schedule individual surveillance cameras for continuous, motion, or both by date and time. Can also set security DVR system to ignore certain areas in its field of vision. You can also set motion detection sensitivity.
One of the most flexible CCTV systems out in the market today.
Audio enabled. Must use Samsung’s audio camera (SEB-1006R)
Wireless cameras available (SEB-1004RW)
8 Surveillance Cameras Included for your 8 Channels: Samsung SEB-1007R is a plastic box security camera. It is weatherproof with an IP rating of IP66. It records at 520TVL and has a night vision range of maximum feet. Samsung SED-1001R is a dome security camera. It has a dome shape and is designed for indoor use. Both of these cameras will connect to your Samsung DVR Security System through a single RJ-45 Cable (SEA-C200). Both SEB-1007R and SED-1001R have lenses with focus length of 3.8mm, a vertical visual angle of 40?, and a horizontal visual angle of 54?. As you know, you have 8 Samsung surveillance cameras straight out of the box for all your 8 channels
Other 8 Channel Systems SDE-4001N Samsung’s 8 Channel security DVR system. Comes with 4 x SEB-1005R and 2 x SED-1001R (Dome Camera). Same system as the SDE-4002N but comes with 4 metal security box cameras instead of the plastic and only 2 dome cameras.
Samsung SDE-4002 is your complete security solution in a box. It contains everything you need to set up a complete video and surveillance system.
The SDE-4002 features an 8 channel DVR with a 1 TB hard drive. In the box, you will find 4 night vision water proof cameras and 4 indoor dome cameras. Simple to set up and even easier to use, you can monitor your business or home anytime from anywhere around the world so you will always know what is going on even when you are not there.
Samsung also offers lifetime technical support on this product so you are always covered.
Be Connected At All Times
You can monitor any of the cameras at anytime from anywhere in the world on your PC or smartphone. You can also change and set any functions on your DVR remotely from your PC. You can even set the SDE-4002 to send you alerts via email when programmed events such as motion detection or loss of video signal, occurs. It's truly a system that's been developed with you, the consumer's convenience in mind. Scan the QR code with your phone to upload iPOLis mobile, the remote viewing app developed by Samsung. You can also search for it on your app store.
Simple to Set Up & Easier to Use
All you have to do to get started on your Samsung SDE-4002 is plug & play. The setup menu is easy to navigate and use. It’s the ultimate do-it-yourself security system. The SEB-1007R are IP66 compliant, which means that they are both waterproof and dust proof. They can be placed inside or outdoors in the harshest conditions. The SED-1001R are designed for indoor use only. A single cable to each camera covers all wiring needs including power so you have the freedom to place them anywhere, even if there is no outlet in the area. All our cameras are night vision capable. The SEB-1007R can detect and show objects as far as 50 feet even in complete darkness, while the SED-1001R can record up to 30ft. There’s no stress, no hassle. Just put your cameras where you need them.
Large Storage Capacity and Easy to Review
The SDE-4002 comes with a 1 TB Seagate® hard drive. The hard drive is dependable and provides a large capacity to store your video. The DVR also utilizes H.264 compression technology which allows you to record even longer. Each camera can be set to record constantly or customized to record based on motion activation or a scheduled times. Searching and reviewing your records is made easy with the option of searching by time or by event.
Best Image Available
Image is everything when it comes to video security systems and Samsung delivers a high quality experience. The cameras on the SDE-4002 capture video with 520 television lines of resolution for a clear picture. SDE-4002 records up to 240 frames per second, making your recordings smooth and crisp.
Manage Multiple Systems on One Screen
If you have more than one Samsung SDE-4002, Samsung's Smart Viewer® technology allows you to manage multiple systems, located even in multiple locations, from one geographic location. Rather than having to log in and out of each individual system, simply assign names to each camera from each system and view on your PC from anywhere in the world 24 hours a day, 7 days a week.
Samsung Quick Connect: Networking Your DVR Made Easy
Setting up remote viewing is a snap. Simply plug your internet connection to the Samsung SDE-4002 DVR, load the Quick Connect software onto your PC and your router will be located automatically. Using your PC, follow the three easy configuration steps and then you’re ready to go.
Item | SDE-4002 | |
Video | Inputs | 8 UTP Line(CH1-CH8), BNC 2 ports(CH1, CH2) |
Resolution | 704x480 NTSC, 704x576 PAL | |
Live | Frame rate | 30ips NTSC, 25ips PAL |
Resolution | 704x480 NTSC, 704x576 PAL | |
Multi Screen display | 1, 4, 6, 8, 9, 13, PIP | |
Performance | ||
Operating System | Embedded | Linux |
Recording | Compression | H.264 |
Record Rate | NTSC: Up to 60ips @ 704x480 / PAL: Up to 50ips @ 704x576 | |
NTSC: Up to 120ips @ 704x240 / PAL: Up to 100ips @ 704x288 | ||
NTSC: Up to 240ips @ 352x240 / PAL: Up to 200ips @ 352x288 | ||
Mode | NTSC: Manual, Schedule, Event | |
PAL: Manual, Schedule, Event | ||
Overwrite modes | Continuous | |
Pre-event | Off/5/10/20/30sec | |
Post-event | - Off/5/10/20/30sec | |
Search & Playback | Search mode | Date/time, Event, Backup, Motion (* All Search contains the Preview function) |
Playback function | Fast Forward/Backward, Slow Forward/Backward, Step Forward/Backward | |
Network | Transmission speed | Up to 8Mbps, Unlimited(8Mbps)/2/1.5/1 Mbps/800/600/500/400/300/200/100/50 kbps |
Steam | H.264 (CIF) | |
Max. No. Of Remote Users | Search (3)/ Live Unicast (10)/ Live Multicast (20) | |
Protocol Support | TCP/IP, DHCP, PPPoE, SMTP, NTP, LIGHTTPD & UDP, DDNS, RTP RTSP | |
Monitoring | Smart Viewer, Webviewer, Mobile Viewer | |
Storage | Internal HDD | 1 TB SATA HDD |
External HDD | - | |
DVD Writer (Back-up) | - | |
USB (Back-up) | 2 USB Ports | |
File Format | AVI, SEC, DVR | |
Security | Password Protection | 1Admin, 10 Group, 20 User per 1 Group, User can be assigned authority for function |
Data Authentication | Watermark (Only supports in SEC backup viewer) | |
Interface | ||
Monitors | VGA | Analog RGB 800x600, 1024x768, 1280x1024 resolution |
HDMI | - | |
Main Composite | BNC, 1 Vp-p, 75 ohm | |
Spot Composite | - | |
Loop Outputs | - | |
Audio | Inputs/Ouput | 8 UTP Line(CH1~CH8), 2 Port RCA(CH1, CH2)/ 1 line out |
Compression | ADPCM | |
Sampling rate | 16KHz | |
Alarm | Inputs/Outputs | Terminal 4 inputs (NO/NC) / Terminal 1 relay outputs (NO/NC), Rating: 30V DC/2A, 125V AC/0.5A |
Remote notification | Notification via e-mail | |
Connections | Ethernet | 1 RJ-45 10/100/1000 Base-T |
Serial interface | - | |
USB | USB 2.0, 2 ports | |
e-SATA | - | |
Application Supoort | Mouse, Remote Controller | |
Protocol support | - | |
General | ||
Electrical | Input Voltage/Current | 100 ~ 240 VAC +/- 10% 50/60 Hz, Autoranging |
Power consumption | ADP-4812 Adaptor (2 EA), 12V, 48W+48W | |
Environmental | Operating Temperature/Humidity | 0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH |
Mechanical | Dimension (W x H x D) | 350 x 44 x 300 mm |
| Weight (With harddisks) | 2.83kg |
Language | English, Spanish, French, German, Italian, Polish, Portuguese, Russian, Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Dutch, Thai, Romanian, Serbian, Croatian, Hungarian, Greek |
Item | Details | |||||||
SEB-1007R N | SEB-1007R P | SED-1001R N | SED-1001R P | |||||
Electrical | ||||||||
Input Voltage | DC 12V(by UTP) | DC 12V(by UTP) | DC 12V(by UTP) | DC 12V(by UTP) | ||||
Power Consumption | 2.6W | 2.6W | 2.2W | 2.2W | ||||
Video | ||||||||
Imaging Device | MT9V138 | MT9V138 | MT9V138 | MT9V138 | ||||
Total Pixels | 680 x 512 | 680 x 512 | 680 x 512 | 680 x 512 | ||||
Scanning System | Interlace | Interlace | Interlace | Interlace | ||||
Synchronization | Internal | Internal | Internal | Internal | ||||
Frequency | H: 15,734 Hz | H: 15,625 | H: 15,734 Hz | H: 15,625 | ||||
V: 59.94 Hz | V: 50 Hz | V: 59.94 Hz | V: 50 Hz | |||||
Horizontal Resolution | 520TVL | 520TVL | 520TVL | 520TVL | ||||
Min. Illumination | OLux (IR-LED) | OLux (IR-LED) | OLux (IR-LED) | OLux (IR-LED) | ||||
S/N Ratio (Y Signal) | 46dB | 46dB | 46dB | 46dB | ||||
UTP | Built-in UTP TX | |||||||
Maximum Transmission Length: 200m (UTP CAT 5e) | ||||||||
Balanced Differential Impedance: 100 ohm | ||||||||
Lens | ||||||||
Focus Length | 3.8mm | 3.8mm | 3.8mm | 3.8mm | ||||
Max.Aperture Ratio | 2 | 2 | 2 | 2 | ||||
Angular Field of View | H: 54? | H: 54? | H: 54? | H: 54? | ||||
V: 40? | V: 0? | V: 40? | V: 40? | |||||
Operational | ||||||||
Shutter Mode | Auto(Rolling Shutter) | Auto(Rolling Shutter) | Auto(Rolling Shutter) | Auto(Rolling Shutter) | ||||
Gain Control | Auto | Auto | Auto | Auto | ||||
White Balance | Auto | Auto | Auto | Auto | ||||
(3200°K~6500°K) | (3200°K~6500°K) | (3200°K~6500°K) | (3200°K~6500°K) | |||||
Digital Noise Reduction | Auto | Auto | Auto | Auto | ||||
Day & Night | Auto | Auto | Auto | Auto | ||||
IR Distance | 15m(20EA) | 15m(20EA) | 10m(12EA) | 10m(12EA) | ||||
Environmental | ||||||||
Operating Temperature/Humidity | 0°C ~ +40°C (+32°F~+104°F) / 20% ~ 85% RH | 0°C ~ +40°C (+32°F~+104°F) / 20% ~ 85% RH | 0°C ~ +40°C (+32°F~+104°F) / 20% ~ 85% RH | 0°C ~ +40°C (+32°F~+104°F) / 20% ~ 85% RH | ||||
Mechanical | ||||||||
Dimension (W x H x D) | W59.1 X H59.1 X D72 | W59.1 X H59.1 X D72 | W102 X H71.7 | W102 X H71.7 | ||||
Weight | 95g | 95g | 160g | 160g |
