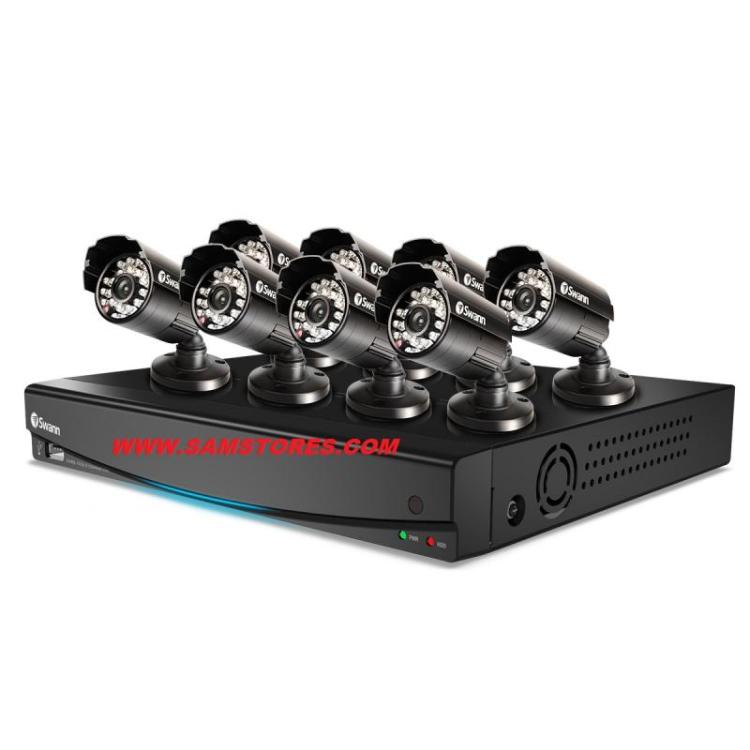

SWANN SWDVK-814508F 8 CHANNEL 8 CAMERAS SECURITY CAMERA SYSTEM 110 - 240 VOLTS

Specifications

DVR8-1450 Digital Video Recorder

Video

Video Signal Type NTSC or PAL

Video Inputs 8 Composite BNC Inputs

Video Outputs VGA, HDMI

Display Resolution 1024 x 768, 1280 x 1024, 1280 x 720, 1920 x 1080

Display Frame Rate NTSC: 30fps/channel / PAL: 25fps/channel

Audio

Audio Input 4 RCA Inputs

Audio Output 1 RCA Output

Recording

Compression Format H.264

Recording Resolution NTSC: D1 (704 x 480), CIF (352 x 240)

PAL: D1 (704 x 576), CIF (352 x 288)

Recording Frame Rate Real Time NTSC: Global 240fps / 30 fps per channel @ D1 /

PAL: Global 200fps / 25 fps per channel @ D1

Recording Modes Manual / Motion / Schedule

HDD Interface / Type 1TB SATA HDD (installed)

Hard Drive Support Up to 2TB

Network

LAN Connection Yes

Network Interface RJ45

Network Protocol TCP/IP, DDNS, UPnP

Remote Operation Yes

General

Operating

Power

DC 12V

Dimensions 9.8” x 8.7” x 1.6” / 250mm x 220mm x 40mm

Weight 3.3lbs / 1.5kg

Backup Method USB to Flash Drive / Network / USB HDD

Mouse Support Yes

Remote Control Yes (uses 2 x AAA, included)

PRO-530 Camera

Video

Image Sensor SwannTruColor (STC)

Video Quality 600 TV Lines

Resolution 728 x 488

Minimum Illumination 0 Lux (IR on)

Day / Night Mode Color during day /switches to B&W at night

White Balance Automatic

Signal / Noise Ratio 45dB

Gain Control Automatic

Backlight Compensation Yes

Lens 4.8mm

Viewing Angle 58 degrees

Night Vision

Night Vision Distance Up to 65ft / 20m

IR Cut Filter Yes

Infra-Red LEDs 24

Infra-red wavelength 850nm

Infra-red LED life (average) 10,000 hours

General

Indoor / Outdoor Indoor / Outdoor, IP67 rated

Operating

Power

DC 12V

Operating Temperature -4°F ~ 140°F / -20°C ~ 60°C

Body Construction Aluminum

Dimensions – Camera 2.0” x 2.0” x 2.8” / 50mm x 50mm x 70mm

Dimensions – Camera & Stand 2.5” x 2.5 ” x 5.7” / 65mm x 65mm x 145mm

Weight 0.56lbs / 253g

Cable Length 60ft / 18m

Weight – Camera & Stand 1.02lbs / 465g

Cable Length 60ft / 18m

Codes

Swann Code SWDVK-814508F

What’s in the box

All installation accessories included

• DVR8-1450

• 1TB Hard Drive (installed)

• PRO-530 Cameras x 8

• HDMI Cable

• BNC Cables 60ft / 18m x 8

• Power Adapter & Splitter

• Remote Control

• Software CD

• USB Mouse

• Ethernet Cable

• Mounting Screws & Plugs

• Operating Instructions

• Theft Deterrent Stickers x 4
