SAMSUNG SEB1020R WEATHERPROOF IR CAMERA BNC 110 - 240 VOLTS

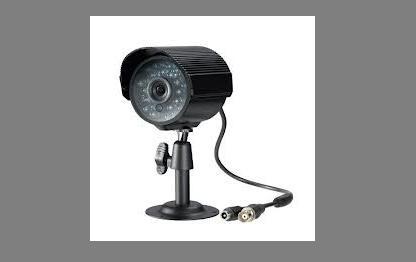

Samsung SEB-1020R BNC Security Box Camera:

The SEB-1020R is Samsung’s BNC security box camera. It comes in a metal design. The SEB-1020R comes with infrared LED lamps for night vision. It has 50ft of night vision range. Furthermore, it comes with a IP65 weatherproof rating. It records at 480TVL and records at 30fps. The SEB-1020R is the popular surveillance box cameras with BNC connectors. Because it connects with a BNC connector, it can be considered very versatile; it can be used with other BNC home surveillance system kits.

The SEB-1020R is compatible with SDE-3004N, SDE-4003N, and the SDE-5003N, and is included in all of these three Samsung security systems.

480 TVL, Metal Case

IP65 Grade weather proof

50ft Night vision

60ft of Siamese BNC cable included

IP66 Compliant and Metal Body

The SEB-1020R is durable and tested under the harshest conditions and has been rated IP66 Compliant. The first 6 rating means that the camera is dust proof and the second 6 rating means that SEB-1005R has been tested against strong jets of water. The SEB-1020R is weather proof against even the harshest conditions. Lastly, the SEB-1020R is made with a metal casing, making it even more durable.

Simple Installation

The SEB-1020R comes with everything you need. You can install your camera anywhere because you know it is durable, weather proof, and night vision cable. It is also connected and powered by a single cable, giving you the freedom of not having to look for a separate power source. Everything you need to install the camera is included in the box. It’s truly a simple solution to your security needs.

Auto-Activated Infrared LED, Picture Quality of 480 TVL

The SEB-1020R has 20 infrared LED lights. These lights illuminate the camera with auto-activated infrared lights, enabling discreet recording in night time conditions. The SEB-1020R can record up to 50ft. in night time conditions. The SEB-1020R also records with 480TVL, making the picture quality crisp and clear. Samsung has gone above the industry’s standards in delivering a camera with high resolution recordings.

SEB-1020R

ELECTRICAL

Input Voltage

DC 12V

Power Consumption

3W

VIDEO

Imaging Device

1/4" OV7950 Color CMOS

Total Pixels

649H x 583V

Scanning System

Interlace

Synchronization

Internal

Frequency

H: 15, 734, V: 59.94 Hz

Horizontal Resolution

480TVL

Min. Illumination

OLux(IR-LED)

S/N Ratio (Y Signal)

46dB

Signal Output

1.0 Vp-p/75 composite

LENS

Focal Length

3.6mm

Max. Aperture Ratio

2

Angular Field of View

H: 67", V: 53"

OPERATIONAL

Shutter Mode

Auto (Rolling Shutter)

Gain Control

Auto

White Balance

Auto (3200K-6500K)

Digital Noise Reduction

Auto

Day & Night

Auto

IR Distance

15m

ENVIRONMENTAL

Operating Temperature/Humidity

0C ~ + 40C (+32F ~ + 104F)/20% ~ 85%RH

MECHANICAL

Dimension (W x H x D)

64.7 x 63.9 x 85.0 mm (2.55"x 2.52"x 3.35")

Weight

300g (0.66 lb)
