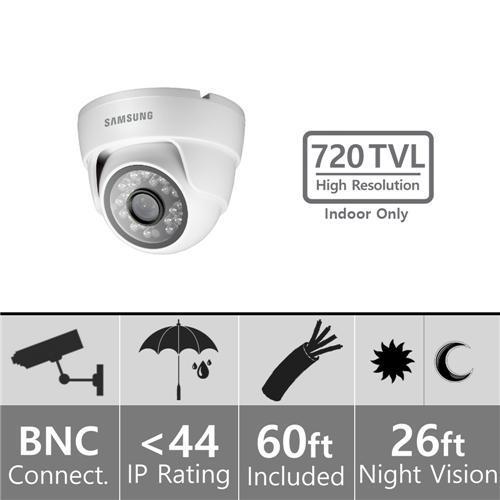

SAMSUNG SDC-7310DCN 960H INDOOR DOME CAMERA BNC 110-220 VOLTS

SDC-7310DCN

Electrical

Input Voltage    12V DC

Power Consumption      3W

VIDEO

Imaging Device                 1/3" 960H CMOS

Active Pixels       976(H) x 494(V)

Scanning System              Interlace

Synchronization                Internal

Frequency          H : 15,734Hz / V : 59.94Hz

Horizontal Resolution     720TV lines

Min. Illumination              0Lux (IR-LED)

S/N Ratio (Y Signal)          50dB

LENS

Focal Length       3.6mm

Max. Aperture Ratio       2

Angular Field of View     H : 60? / V : 48? / D : 72?

OPERATIONAL

Shutter Mode   Auto (Rolling shutter)

Gain Control       Auto

White Balance   Auto (3,200°K ~ 6,500°K)

Digital Noise Reduction                 Auto

Day & Night        MECHA IR CUT FILTER

IR Distance (850nm)        8m (850nm / 20EA)

ENVIR ONMENTALTAL

Operating Temperature / Humidity         -10°C ~ +50°C (+14°F ~+122°F) / 20% ~ 85%RH

MECHANICAL

Ingress Protection           Indoor

Dimensions (WxHxD)     93x78mm

Weight                 700g
