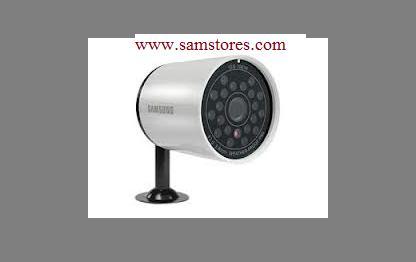

Samsung SEB-1007R Security Box Camera: The SEB-1007R is Samsung’s security box camera with a compact and lightweight design. Because of its size and weight, it can go almost anywhere. The Camera has an IP rating of IP66, making it weatherproof. It also has a round cylinder design, smaller body, and a shorter frame. Because of its weatherproof rating and design, it can be used for both inside and out. The SEB-1007R records at 520TVL and it also records at 30fps. It also comes with LED infrared lamps installed to enable 50ft of night time recording. The SEB-1007R is the light weight and compact camera that demonstrates the most versatility amongst all of Samsung DIY line of surveillance cameras.
Product Code: SA-SEB1007R Product ID: 20736
Product sold by: samstores.com
Samsung SEB-1007R Security Box Camera:
The SEB-1007R is Samsung’s security box camera with a compact and lightweight design. Because of its size and weight, it can go almost anywhere. The Camera has an IP rating of IP66, making it weatherproof. It also has a round cylinder design, smaller body, and a shorter frame. Because of its weatherproof rating and design, it can be used for both inside and out. The SEB-1007R records at 520TVL and it also records at 30fps. It also comes with LED infrared lamps installed to enable 50ft of night time recording. The SEB-1007R is the light weight and compact camera that demonstrates the most versatility amongst all of Samsung DIY line of surveillance cameras.
The SEB-1007R is compatible with Samsung SDE-3001N, SDE-3003N, SDE-4001N, SDE-4002N, SDE-4004N, SDE-5001N, and the SDE-5002N, and comes with the kits, SDE-3001N, SDE-4002N, SDE-4004N, and the SDE-5002N. When purchased separately, it will come with the camera, bracket, screws, and 60ft of RJ-45 CAT5e cables (SEA-C200). Power and video is connected with a single cable, making the installation a snap.
520 TVL
IP66 grade weather proof
50ft Night vision
60ft of cable included
Compact design
IP66 Compliant and Durable
The SEB-1007R is durable and tested under the harshest conditions and has been rated IP66 Compliant. The first 6 rating means that the camera is dust proof and the second 6 rating means that SEB-1007R has been tested against strong jets of water. The SEB-1007R is weather proof against even the harshest conditions.
Simple Installation
The SEB-1007R comes with everything you need. You can install your camera anywhere because you know it is durable, weather resistant, and night vision cable. It is also connected and powered by a single cable, giving you the freedom of not having to look for a separate power source. Everything you need to install the camera is included in the box. It’s truly a simple solution to your security needs.
Auto-Activated Infrared LED, Picture Quality of 520 TVL
The SEB-1007R has 20 infrared LED lights. These lights illuminate the camera with auto-activated infrared lights, enabling discreet recording in night time conditions. The SEB-1007R can record up to 50ft. in night time conditions. The SEB-1007R also records with 520TVL, making the picture quality crisp and clear. Samsung has gone above the industry's standards in delivering a camera with high resolution recordings.
Item | Details | |||||||
SEB-1007R N | SEB-1007R P | SED-1001R N | SED-1001R P | |||||
Electrical | ||||||||
Input Voltage | DC 12V(by UTP) | DC 12V(by UTP) | DC 12V(by UTP) | DC 12V(by UTP) | ||||
Power Consumption | 2.6W | 2.6W | 2.2W | 2.2W | ||||
Video | ||||||||
Imaging Device | MT9V138 | MT9V138 | MT9V138 | MT9V138 | ||||
Total Pixels | 680 x 512 | 680 x 512 | 680 x 512 | 680 x 512 | ||||
Scanning System | Interlace | Interlace | Interlace | Interlace | ||||
Synchronization | Internal | Internal | Internal | Internal | ||||
Frequency | H: 15,734 Hz | H: 15,625 | H: 15,734 Hz | H: 15,625 | ||||
V: 59.94 Hz | V: 50 Hz | V: 59.94 Hz | V: 50 Hz | |||||
Horizontal Resolution | 520TVL | 520TVL | 520TVL | 520TVL | ||||
Min. Illumination | OLux (IR-LED) | OLux (IR-LED) | OLux (IR-LED) | OLux (IR-LED) | ||||
S/N Ratio (Y Signal) | 46dB | 46dB | 46dB | 46dB | ||||
UTP | Built-in UTP TX | |||||||
Maximum Transmission Length: 200m (UTP CAT 5e) | ||||||||
Balanced Differential Impedance: 100 ohm | ||||||||
Lens | ||||||||
Focus Length | 3.8mm | 3.8mm | 3.8mm | 3.8mm | ||||
Max.Aperture Ratio | 2 | 2 | 2 | 2 | ||||
Angular Field of View | H: 54? | H: 54? | H: 54? | H: 54? | ||||
V: 40? | V: 0? | V: 40? | V: 40? | |||||
Operational | ||||||||
Shutter Mode | Auto(Rolling Shutter) | Auto(Rolling Shutter) | Auto(Rolling Shutter) | Auto(Rolling Shutter) | ||||
Gain Control | Auto | Auto | Auto | Auto | ||||
White Balance | Auto | Auto | Auto | Auto | ||||
(3200°K~6500°K) | (3200°K~6500°K) | (3200°K~6500°K) | (3200°K~6500°K) | |||||
Digital Noise Reduction | Auto | Auto | Auto | Auto | ||||
Day & Night | Auto | Auto | Auto | Auto | ||||
IR Distance | 15m(20EA) | 15m(20EA) | 10m(12EA) | 10m(12EA) | ||||
Environmental | ||||||||
Operating Temperature/Humidity | 0°C ~ +40°C (+32°F~+104°F) / 20% ~ 85% RH | 0°C ~ +40°C (+32°F~+104°F) / 20% ~ 85% RH | 0°C ~ +40°C (+32°F~+104°F) / 20% ~ 85% RH | 0°C ~ +40°C (+32°F~+104°F) / 20% ~ 85% RH | ||||
Mechanical | ||||||||
Dimension (W x H x D) | W59.1 X H59.1 X D72 | W59.1 X H59.1 X D72 | W102 X H71.7 | W102 X H71.7 | ||||
Weight | 95g | 95g | 160g | 160g |
