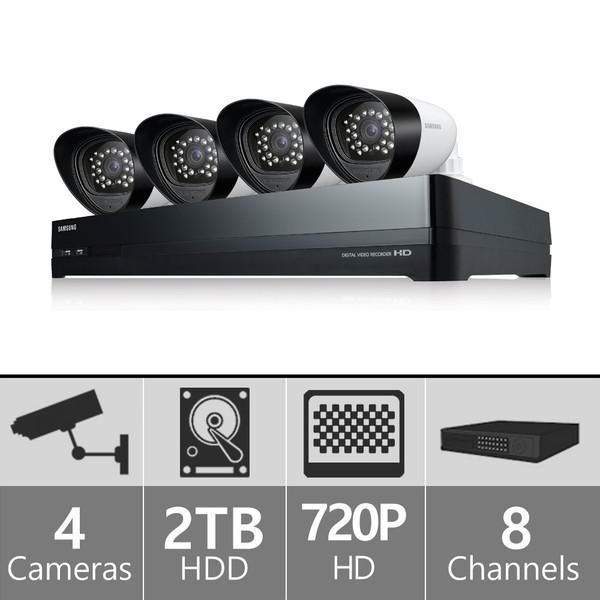

SAMSUNG SDHP4040N 8CH HYBRID SECURITY CAMERA SYSTEM 110 - 240 VOLTS

SDH-P4040N is a 8 channel Samsung Hybrid Security System. It is an all-in-one home surveillance system and it comes with everything you need in the box. The DVR system comes with 4 night vision security cameras (SDC-8340BU (HD). These Samsung Surveillance cameras are all rated IP66 (Weatherproof) and record up to 82ft range. The SDH-P4040N comes with 4 RJ45 (CAT5e) 60ft cables for your included surveillance cameras.

SDH-P4040N is one of the very few Samsung Hybrid Security systems with a RJ45 and BNC cables. Because of the BNC connectors, it is also one of the most versatile Surveillance DVR systems available from Samsung’s DIY line of Home security systems. The system comes with a 2 TB Seagate HDD and it utilizes H.264 compression technology, giving you a long recording time. The DVR security system is easy to set up and easy to use. If you run into any problems, Samsung also offers you a life time technical support service. Your Samsung surveillance cameras can be set for motion detection and for email event alerts. The Surveillance DVR can also be linked with an infinite number of other Samsung Security Systems through smartviewer; a program that allows you to monitor multiple security surveillance systems at one time.

Your Surveillance DVR and Video Surveillance Cameras Includes the following features:

Smartphone and PC ready. View Anytime/Anywhere! Remote viewing on Internet Explorer or iPOLis mobile. iPOLis mobile available on your iPhone and android devices.

Provides a convenient user interface

HD (CH 1~4): Supports CIF/2CIF/4CIF/WD1/HD recording

SD (CH 5~8): Supports CIF/2CIF/4CIF/WD1 recording

4 IP66 720p HD weatherproof security cameras (SDC-8340BU)

4 x 60ft of RJ45 (CAT5e) cables included

With the network specific codec, network transfer enabled regardless of the recording conditions

De-interlacing processor for better picture quality

240 total FPS (Frames per second)

2TB of storage USB 2.0 and records using H.264 compression technology.

Display of HDD information and status by using HDD SMART

HD CODEC performance: Full HD 120IPS

SD CODEC performance: 360IPS

Hard disk overwrite function

Simultaneous record and playback of 8-channel video data

Various Search Modes (Time, Event, Backup, Motion Detection)

Various Recording Modes (Manual, Event, Scheduled Recording)

Alarm Interface, Tampering Detection

Remote Monitoring on the Smart Viewer or the Mobile Viewer

4 Surveillance Cameras Included, Room for 4 more: Samsung SDC-5340BC is a bullet BNC security camera. It is weatherproof with an IP rating of IP66. It records at 600TVL and has a night vision range of maximum 82 ft. The SDC-5340BC will use a 60ft of Siamese BNC cable included in the kit. The SDC-5340BC has lenses with focus length of 3.6mm, a depth visual angle of 72?. As you know, you have 4 Samsung surveillance cameras straight out of the box, but also 4 open channels.

Overview

For your home or business, Samsung SDH-P4040N is your security system that is both dependable and affordable. Everything you need to setup and get started is in the box. The SDH-P4080N features an 8 channel Hybrid DVR [SD (4CH) & HD (4CH)] with a 2TB hard drive. In the box, you will find 4 720p HD IP66 night vision weather proof cameras. Simple to set up and even easier to use, and you can monitor your business or home anytime from anywhere around the world so you will always know what is going on.

Free Lifetime Technical Support by Samsung

(1-877-349-3149)

Samsung offers lifetime technical support on this product so you are always covered.

New SSDR & SSNR III HD Camera Enhancements

SSDR (Samsung Super Dynamic Range)

Useful in high contrast or backlight scene.  Automatically lightens the dark areas within a scene whilst maintaining the brighter areas at the same level.  This ensures that the dark areas become more viewable allowing the operator to view objects in the shadows..

SSNRIII (Samsung Super Noise Reduction III)

The 3rd generation of SSNR can be used in low light condition to enhance the image quality.  This technology eliminates image noise in low light conditions without creating image blur or ghosting.

Durable and Easy Setup Cameras

IP66 Weather & Dustproof

All of the cameras are IP66 compliant which means that they are both weatherproof  (6) and dustproof  (6) and can be placed inside or outdoors in the harshest conditions. They been tested and retested to ensure they are built to last.

Convenient Design

The new SDC-8340BU (HD) that comes within your package can be installed on the wall, ceiling, shelf or a desired position using the provided bracket. The bracket can be easily adjusted and has through cable design.

Best Image Available

720P & 600 TVL High Resolution Cameras

Samsung security systems are known for their high quality recordings. SDC-8340BU records video with 800 television lines of resolution (720p) for a high definition picture and SDC-5340BC uses 600 television lines of resolution for a clear, crisp picture. Also these cameras can provide brighter colors and more details with wide field of view. Samsung 1080P HD Resolution Camera will be available soon (Model Number: SDC-9440BU).

82 ft. Night Vision with IR cut filter

The SDC-8340BU and SDC-5340BC cameras are night vision capable and can detect and show objects as far as 82 feet even in complete darkness. Each camera also equipped with IR cut filter for best daytime image quality.

Be Connected At All Times

Monitor from your PC or Mac (Web Viewer)

You can monitor any of the cameras at anytime from anywhere in the world on your PC or smartphone. You can also change and set any functions on your DVR remotely from your PC. You can even set the SDH-P4040N to send you alerts via email when programmed events such as motion detection or loss of video signal, occurs.It's truly a system that's been developed with you, the consumer's convenience in mind.

Free Smartphone/iPhone App available (Mobile Viewer/iPOLis)

Scan the QR code with your phone to upload iPOLis mobile, the remote viewing app developed by Samsung. You can also search for it on your app store.

Manage Multiple Systems on One Screen (Smart Viewer®)

You can view an infinite number of sites from one control location with your SDH-P4040N. Samsung's Smart Viewer® technology allows you to manage multiple systems, located even in multiple locations, from one geographic location. Rather than having to log in and out of each individual system, simply assign names to each camera from each system and view on your PC from anywhere in the world 24 hours a day, 7 days a week.

Large Storage Capacity and Easy to Review

2 TB HDD (Designed to handle security DVR recordings)

The SDH-P4040N comes with a 2 TB Seagate® hard drive. The hard drive is dependable and provides a large capacity to store your video.

H.264 Compression

The DVR also utilizes H.264 compression technology which allows you to record even longer. Searching and reviewing your records is made easy with the option of searching by time or by event.

Connectivity

HDMI (High-Definition Multimedia Interface)

Not like previously SDE series (ex. SDE-5001N), the new SDH series equipped with HDMI to display high digital quality images on your existing monitor or LCD/LED TV. By using this input, you can pass digital video and audio signal from Samsung DVR to your monitor (needed to be equipped with speaker) and LCD/LED TV to hear or observe your stored footage.

VGA (Video Graphics Array)

The standard analogue output for all Samsung security system including SDS-P5101N. In order to maxmize your display capability with VGA, we highly recommend to use 15-pin VGA cable rather than 12-pin VGA cable (due to compatibility issue).

SDR-4200

Display

Video     Inputs    4CH UTP, 4CH BNC (Composite)

Resolution           1920 x 1080 (Full HD)

Live        Frame Rate         120fps@1920 x 1080 + 120fps@704 x 480

Resolution           1920 x 1080 (Full HD), 704 x 480 (SD)

Multi Screen Display        1 / 4 / 7 / 9 / Sequence / PIP

Performance

Operating System             Embedded           Linux

Recording            Compression      H.264

Record Rate        Up to 120fps@1920 x 1080 + 120fps@704 x 480

Mode    Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1 ~ 30fps)

Event     Video Loss, Motion (Level 1 ~ 10), Alarm, Tampering

Overwrite Modes             Continuous

Pre-alarm            Off / 5sec

Post-alarm          Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)

Search & Playback            Search Mode      Date/time, Event, Back up, Motion (*All search included prview function)

Playback Function            Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only

Slow forward / backward (1/2x, 1/4x, 1/8x)

Step forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only

Network              Transmission Speed         4CIF 120fps / 2CIF 240fps / CIF 480fps

Bandwidth           Up to 32Mbps

Bandwidth Control           Selectable

Stream  H.264 (4CIF / 2CIF / CIF selectable)

Max. Remote Users         Search 3 / Live unicast 10 / Live multicast 20

Protocol Support              TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP

Monitoring          SmartViewer, Webviewer, Mobile Viewer

Smart Phone       Smart Phone       Android, iOS (iPhone, iPad)

Protocol Support              RTP, RTSP, HTTP, CGI

Transmission Speed         CIF Max. 16fps (Single channel) / CIF Max. 4fps (Quad channel)

Max. Remote Users         Live 1

StorageInternal HDD       External HDD (Up to 2TB)

USB (Back up)     2 USB ports

File Format (Back up)       BU (DVR player), SEC (Include player)

SecurityPassword Protection       1 Admin, 10 Group, 10 User per 1group

Data Authentication        Watermark

Interface

Monitors             VGA       1 VGA (1024 x 768, 1280 x 1024)

HDMI     1 HDMI (720p/1080p resolution)

Audio     Inputs / Output  4 line in / 1 line out

Compression      G.711

Sampling Rate    8KHz

Alarm    Remote Notification        Notification via e-mail

Connections       Ethernet              1 RJ-45 10/100Mbps Base-T

USB        USB 2.0, 2 ports (Front)

e-SATA  e-SATA 3.0

Application Supoort         Mouse, Remote control

Protocol Support (RS-485)             Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, Vicon, GE

General

Electrical             Input Voltage / Current   12V DC adaptor, 4A, 100 ~ 250V AC, 50/60Hz, 48watt

Power Consumption        Max. 40W (With 1x HDD)

Environmental    Operating Temperature / Humidity            0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH

Mechanical         Dimensions (WxHxD)       413.0 x 58.6 x 174.0mm (16.26" x 2.31" x 6.85")

Weight (With hard disks)1.43Kg (3.1 lb)

Language            English, Spanish, French, German, Italian, Polish, Portuguese, Russian,Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherland, Thai, Romanian, Serbian, Croatian, Hungarian, Greek

SDC-8340BU

Electrical

Input Voltage     12V DC

Power Consumption        3W

VIDEO

Imaging Device  1/4" CMOS

Active Pixels        1024 x 720 (720P)

Scanning System               Progressive

SynchronizationInternal

Frequency           H : 15,734Hz / V : 59.94Hz

Horizontal Resolution      800TV lines

Min. Illumination              0Lux (IR LED)

S/N Ratio (Y Signal)          50dB

UTP Output         Built-in UTP TX

Maximum transmission length: 150m (UTP CAT 5e)

Balanced differential impedance: 100 ohm

LENS

Focal Length       3.6mm

Max. Aperture Ratio        2

Angular Field of View       D : 86?

OPERATIRATIONAL

Shutter Mode     Auto (Rolling shutter)

Gain Control       Auto

White Balance    Auto (3,200°K ~ 6,500°K)

Contrast Enhancement   SSDR (On

Digital Noise Reduction  SSNRIII (On)

Day & Night        Auto

IR Distance (850nm)         25m (82ft/850nm)

ENVIR ONMENTALTAL

Operating Temperature / Humidity            -10°C ~ +50°C (+14°F ~ +122°F) / 20% ~ 85% RH

MECHANICAL

Ingress Protection            IP66

Dimensions (WxHxD)       70.5 x 70.2 x 200mm (2.78" x 2.76" x 7.87")

Weight  240g (0.53 lb)
