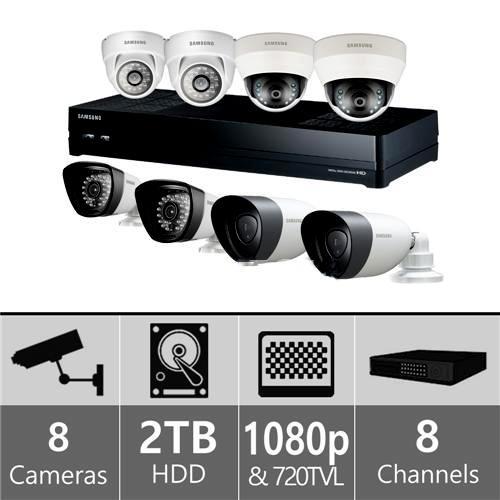

SAMSUNG SDH-P4041HH - 8CH HYBRID VARIETY PACK W/ 4 HD & 4 SD CAMERAS 110-220 VOLTS

5

SDH-P4041HH - Samsung 8ch Hybrid Variety Pack w/ 4 HD & 4 SD Cameras

Product Code: SDH-P4041HH   Product ID: 24865
Product sold by: samstores.com

$ 910.99

Availability: In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-7 business days!

SDR-4200

Display

Video    Inputs   4CH UTP, 4CH BNC (Composite)

Resolution          1920 x 1080 (Full HD)

Live        Frame Rate         120fps@1920 x 1080 + 120fps@704 x 480

Resolution          1920 x 1080 (Full HD), 704 x 480 (SD)

Multi Screen Display       1 / 4 / 7 / 9 / Sequence / PIP

Performance

Operating System            Embedded          Linux

Recording            Compression     H.264

Record Rate       Up to 120fps@1920 x 1080 + 120fps@704 x 480

Mode



Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1 ~ 30fps)



Event





Video Loss, Motion (Level 1 ~ 10), Alarm, Tampering

Overwrite Modes            Continuous

Pre-alarm            Off / 5sec

Post-alarm          Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)

Search & Playback           Search Mode



Date/time, Event, Back up, Motion (*All search included prview function)

Playback Function            Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only

Slow forward / backward (1/2x, 1/4x, 1/8x)

Step forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only

Network              Transmission Speed



4CIF 120fps / 2CIF 240fps / CIF 480fps

Bandwidth



Up to 32Mbps

Bandwidth Control



Selectable

Stream



H.264 (4CIF / 2CIF / CIF selectable)



Max. Remote Users





Search 3 / Live unicast 10 / Live multicast 20

Protocol Support              TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP

Monitoring         SmartViewer, Webviewer, Mobile Viewer

Smart Phone      Smart Phone      Android, iOS (iPhone, iPad)

Protocol Support              RTP, RTSP, HTTP, CGI

Transmission Speed        CIF Max. 16fps (Single channel) / CIF Max. 4fps (Quad channel)

Max. Remote Users        Live 1

Storage                Internal HDD



2 TB SATA HDD

External HDD / DVD Writer



External HDD (Up to 2TB)

USB (Back up)    2 USB ports

File Format (Back up)     BU (DVR player), SEC (Include player)

Security                Password Protection      1 Admin, 10 Group, 10 User per 1group

Data Authentication       Watermark

Interface

Monitors             VGA       1 VGA (1024 x 768, 1280 x 1024)

HDMI    1 HDMI (720p/1080p resolution)

Audio    Inputs / Output                4 line in / 1 line out

Compression     G.711

Sampling Rate   8KHz

Alarm    Remote Notification       Notification via e-mail

Connections       Ethernet              1 RJ-45 10/100Mbps Base-T

USB        USB 2.0, 2 ports (Front)

e-SATA                 e-SATA 3.0

Application Supoort        Mouse, Remote control

Protocol Support (RS-485)            Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, Vicon, GE

General

Electrical              Input Voltage / Current                 12V DC adaptor, 4A, 100 ~ 250V AC, 50/60Hz, 48watt

Power Consumption      Max. 40W (With 1x HDD)

Environmental Operating Temperature / Humidity         0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH

Mechanical         Dimensions (WxHxD)     413.0 x 58.6 x 174.0mm (16.26" x 2.31" x 6.85")

Weight (With hard disks)              1.43Kg (3.1 lb)

Language             English, Spanish, French, German, Italian, Polish, Portuguese, Russian,Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherland, Thai, Romanian, Serbian, Croatian, Hungarian, Greek





SDC-9440BU

Electrical

Input Voltage    DC 12V(by PoE) (not compatible with general PoE)

Power Consumption      4W

VIDEO

Imaging Device                 1/2.9" 2M CMOS / 1920 x 1080 (1080p) or higher

Active Pixels       1920 x 1080 (1080)p or Higher

Scanning System              Progressive

Synchronization                Internal

Frequency          -

Horizontal Resolution     -

Min. Illumination              0Lux (IR LED)

S/N Ratio (Y Signal)          50dB

UTP Output



Built-in UTP TX

Maximum transmission length:

100m (UTP CAT5e, Solid Wire)

50m (UTP CAT5e, Stranded Wire)

* It is subject to change depending on user environment



LENS

Focal Length       3.6mm

Max. Aperture Ratio       1.8

Angular Field of View     H: 87.92?, V: 47.66?, D: 103.1?

OPERATIONAL

Shutter Mode   Auto (Rolling shutter)

* Flickering may occur with electronic fluorescent lamps.

Gain Control       Auto

White Balance   Auto (1,800 ~ 10,500 K)

Contrast Enhancement                 SSDR (On

Digital Noise Reduction                 SSNRIII (On)

Day & Night        Auto

IR Distance          30m (98ft)

ENVIRONMENTAL

Operating Temperature / Humidity         -10°C ~ +50°C / 90%

MECHANICAL

Ingress Protection           IP66

Dimensions (WxHxD)     W70.8 x H70.4 x D200mm (Bracket included)

Weight                 255g

SDC-7340BCN

Electrical

Input Voltage    12V DC

Power Consumption      3W

VIDEO

Imaging Device                 1/3" 960H CMOS

Active Pixels       976(H) x 494(V)

Scanning System              Interlace

Synchronization                Internal

Frequency          H : 15,734Hz / V : 59.94Hz

Horizontal Resolution     720TV lines

Min. Illumination              Color : 7Lux, B/W : 0Lux (IR LED on)

S/N Ratio (Y Signal)          46dB

LENS

Focal Length       3.8mm

Max. Aperture Ratio       F2.0

Angular Field of View     H : 75? / V : 66? / D : 80?

OPERATIONAL

Shutter Mode   Auto (Rolling shutter)

Gain Control       Auto

White Balance   Auto (1,800°K ~ 10,500°K)

Digital Noise Reduction                 Auto

Day & Night        Auto

IR Distance (850nm)        25m (82ft)

ENVIR ONMENTALTAL

Operating Temperature / Humidity         -10°C ~ +50°C (+14°F ~+122°F) / 20% ~ 85%RH

MECHANICAL

Ingress Protection           IP66

Dimensions (WxHxD)     72.1 x 62.9 x 192.4mm (2.84" x 2.48" x 7.57")

Weight                 252g (0.56 lb)



SDC-7310DCN

Electrical

Input Voltage    12V DC

Power Consumption      3W

VIDEO

Imaging Device                 1/3" 960H CMOS

Active Pixels       976(H) x 494(V)

Scanning System              Interlace

Synchronization                Internal

Frequency          H : 15,734Hz / V : 59.94Hz

Horizontal Resolution     720TV lines

Min. Illumination              0Lux (IR-LED)

S/N Ratio (Y Signal)          50dB

LENS

Focal Length       3.6mm

Max. Aperture Ratio       2

Angular Field of View     H : 60? / V : 48? / D : 72?

OPERATIONAL

Shutter Mode   Auto (Rolling shutter)

Gain Control       Auto

White Balance   Auto (3,200°K ~ 6,500°K)

Digital Noise Reduction                 Auto

Day & Night        MECHA IR CUT FILTER

IR Distance (850nm)        8m (850nm / 20EA)

ENVIR ONMENTALTAL

Operating Temperature / Humidity         -10°C ~ +50°C (+14°F ~+122°F) / 20% ~ 85%RH

MECHANICAL

Ingress Protection           Indoor

Dimensions (WxHxD)     93x78mm

Weight                 700g

SDC-9410DU



VIDEO



Imaging Device





1/2.9" 2M CMOS



Effective Pixels





1920 x 1080 (1080p) or higher



Scanning System





Progressive



Synchronization





Internal



Min. Illumination





0Lux (IR LED on)



UTP Output





Built-in UTP TX

Maximum transmission length : 100m (UTP CAT5e, Solid wire), 50m (UTP CAT5e, Stranded wire)



Camera Connection Time





5 ~ 10sec



Min. Cable Length





60ft (18.3m) included



LENS



Focal Length





3.6mm



Max. Aperture Ratio





F1.8



Angular Field of View





H : 87.92 ? / V : 47.66 ? / D : 103.1 ?



OPERATIONAL



Shutter Mode





Auto (Rolling shutter)



Gain Control





Auto



White Balance





Auto (1,800°K ~ 10,500°K)



Wide Dynamic Range





Yes (Switch sel type). Default off



Contrast Enhancement





SSDR (On)



Digital Noise Reduction

                SSNHRIII (On)



Flickerless





Auto



Day & Night





True D/N



IR Distance (850nm)





26ft (8m)



ENVIRONMENTAL



Operating Temperature / Humidity





10°C ~ +50°C (+14°F ~+122°F) / Less than 90% RH



Ingress Protection





Indoor only



ELECTRICAL



Input Voltage





12V DC (by PoE)



Power Consumption





Max. 2.7W



MECHANICAL



Color / Material





Ivory / Plastic (Poly carbonite)



Dimensions (WxH)





Ø120.0 x 98.3mm (Ø4.72" x 3.87")



Weight





275g (0.61 lb)
