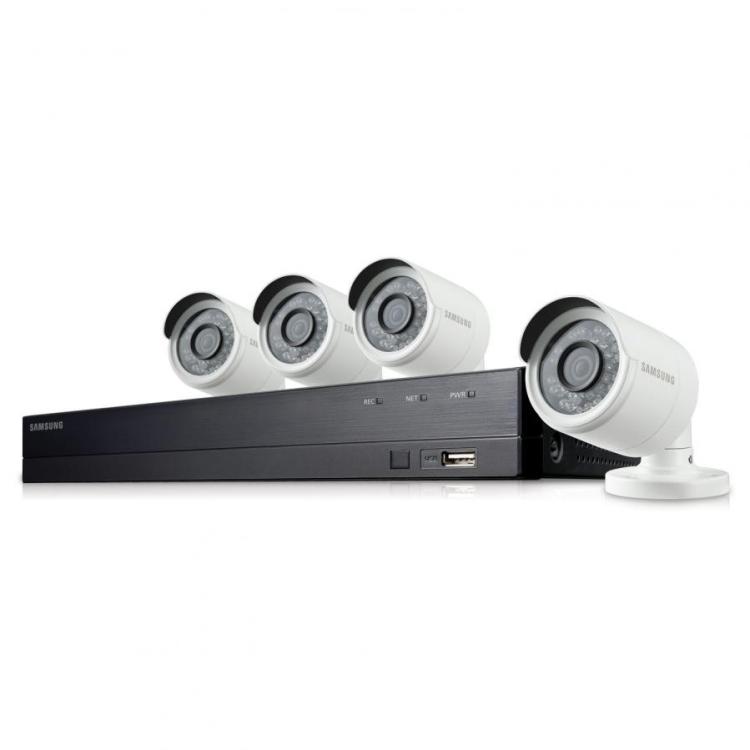

SAMSUNG SDH-C74041 8-CHANNEL 1080P HD SECURITY SYSTEM WITH 1TB HARD DRIVE, 4 1080P OUTDOOR BULLET CAMERAS WITH 82' NIGHT VISION 110-220 VOLTS

Description

About this Product

This 8-channel DVR kit includes 4 weather-resistant 1080p Full HD cameras that deliver true daylight color and clear night vision up to 130 feet in ambient lighting and 82 feet in total darkness. The system is easily customized for advanced monitoring and notification.

Wide Angle Coverage

Maximize your monitoring power with Samsung’s 100° Ultra-Wide Angle lens. Expand your view without sacrificing crisp, clear details.

Free Android and iOS App for Remote Viewing

Samsung’s free mobile app brings surveillance video right to your iOS® or Android™ tablet or smartphone. To oversee multiple systems in various locations, the mobile allows video monitoring from all points around the globe on a single screen.

Motion Detection Notifications

Instant email notifications can be sent when motion or camera tampering is detected and automatically recorded onto the DVR. Guarding your safety, Samsung empowers you to respond instantly to unexpected events, view real-time activity and review stored recordings.

IP66 Weather-Resistant Cameras

Every camera in this system has achieved an Ingress Protection Rating of IP66, and tested to withstand dust, wind and rain.

Specifications

System

Number of Cameras:      4

Number of Channels:     8

Hard Drive Space:            1 TB

Wired or Wireless:           Wired

Average Minimum Setup Time: 30 minutes

DVR

DVR Model:        SDR-74301

Number of Channels:     8

Number of Channels with Audio:              1 Channel line in, 1 channel line out

Hard Drive Size:                1 TB

Maximum Hard Drive Expandability:        5 TB for most major brands

Recording Resolution:    1920 x 1080 (Full HD), 1280 x 1080 (HD), 960 x 480 (960H)

Recording Frames per Second:  240fps@ 1920 x 1080 / 240fps@1280 x 720 / 240fps@960 x 480

Recording Compression:               H.264

Recording Modes Available:        Manual, Schedule (Continuous/Event), Event (Pre/Post)

Wireless Camera Receiver:          N/A

Video Motion Detection Recording:        Yes

Pre-Event Recording/Capacity:  Yes/ 5 seconds

Mobile App Viewing:      Mobile: Android OS v.3.0 and above iOS OS: v5.1 or above

E-Mail Alert Notification:              Yes

Maximum Number of Remote Viewers:                20

Playback and Search Options:     Fast forward/backward (2x, 4x, 8x, 16x) Slow forward (1/2x, 1/4x, 1/8x, 1/16x) Step forward

Data Backup Options:     USB

Digital Zoom:      4X Digital Zoom on the DVR

Pan-Tilt-Zoom Controls:                N/A

Still Frame Capture:        Yes

Alarm Terminal Trigger Recording / # of Inputs:  N/A

External Alarm Output Contact(s):           N/A

Operating System:          Linux

Included Accessories:    N/A

Camera Cable Connection Type:               BNC

Compatible Cameras:     SDC-9443BC (bullet) and SDC-9442DC (dome)

DVR Dimensions:             11.8" W x 2.08" H x 8.93" D (300 x 227 x 53mm)

Camera

Camera Model and Type:             SDC-9443BC 1080p Full HD All-In-One Kit Accessory Camera

Number of Cameras:      4

Image Sensor Type:        2M CMOS (1/2.7")

TV Lines:              1080p Full HD

Resolution:         1920 x 1080 (Full HD)

Effective Pixels:                1920(H)x 1080(V)

Aperture:            F2.4

Focal Length (35mm Equivalent):              3.6 mm

Pan-Tilt-Zoom Capability:             N/A

Optical Zoom:    N/A

Angle of View:  100°

Color or Black and White:             Color

Wireless Camera-DVR Connection:          No

Audio Capability:              No

Number of Infrared LEDs:            32 LED's on the camera

Night Vision Distance:    130 feet in ambient lighting, 82 feet in total darkness

Recommended for Outdoor Use:             Yes

Weather Resistance (IP Rating):                IP66

Operating Temperature:              -10°C ~ +50°C (+14°F ~ +122°F)

Operating Humidity:       Less than 90% RH

Tamper Protection:         Yes-Video Loss, Motion(Sensitivity Level 1~10), Tampering

Compatible DVRs:            Compatible with all 960H and 720p AHD cameras from Samsung

Compatible Cables and Connector Type:               BNC

Length of Cable Included:            4- 60 feet

Camera Dimensions:      2.7" W x 5.7" H x 2.8" D

Technical Support

Phone Number:               1-877-349-3149

Hours of Availability:       9am-9pm EST, Mon-Sun

Web Support URL:           http://www.samsungsv.com

Package Contents

1 SDR-B74301 DVR

4 SDC-9443BC Outdoor Bullet Cameras

1 Remote Control with Batteries

1 Mouse

1 Power Adapter/Power Cord

Splitter

4 60ft BNC Camera Cables

1 CD

1 Quick Start Guide

1 HDMI Cable

1 LAN Cable

Screws

Samsung SDH-C74041 8-Channel 1080P HD Security System With 1TB Hard Drive, 4 1080P Outdoor Bullet Cameras With 82' Night Vision 110-220 Volts is a security system that can be easily specialized to offer you advanced monitoring and notification.  It will help you maximize your monitoring power with 100 degrees ultra-wide angle lens.  It is a security system with IP66 Weather-Resistant Cameras and tested to withstand dust, wind and rain.

What you get

·         Security system that offers you advanced monitoring and notification

·         100 degrees ultra-wide angle lens

·         IP66 Weather-Resistant Cameras
