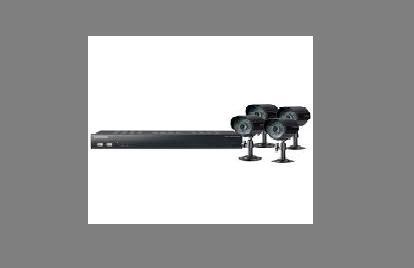

SAMSUNG SDE4003N 8CH SECURITY CAMERA SYSTEM 110 - 240 VOLTS

SDE-4003N is a Samsung security system with 8 channels and part of Samsung new line of DIY security DVRs with BNC connectors. The SDE-4003N comes with 4 BNC security Box cameras (SEB-1020R). The Samsung surveillance cameras included in the kit are rated IP65 and record at 480TVL. The 4 Samsung cameras included in the kit connect to the DVR using 60 Siamese BNC cables. You also receive a special accessory that will allow you to power your BNC cables through the DVR rather than an outlet.

Product Code: SA-SDE4003N   Product ID: 20723
Product sold by: samstores.com

$ 594

Availability: In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

SDE-4003N is a Samsung security system with 8 channels and part of Samsung new line of DIY security DVRs with BNC connectors. The SDE-4003N comes with 4 BNC security Box cameras (SEB-1020R). The Samsung surveillance cameras included in the kit are rated IP65 and record at 480TVL. The 4 Samsung cameras included in the kit connect to the DVR using 60 Siamese BNC cables. You also receive a special accessory that will allow you to power your BNC cables through the DVR rather than an outlet.

SDE-4003N is a home surveillance system you can trust. It has intuitive features, and give you security and convenience hand in hand. Your Security DVR will come with a 1TB HDD. It also utilizes H.246 compression technology that will extend our record time to its maximum length. You’re Samsung security system can be monitored remotely. Set your Samsung surveillance cameras to detect motion then set your security DVR system to send email alerts when motion is detected. Your DVR security system can also be connected to your other Samsung security systems. Smartviewer, a software developed by Samsung, will connect an infinite number of Samsung security systems for monitoring in one central location.

Your Surveillance DVR and Video Surveillance Cameras Includes the following features:

Smartphone and PC ready. View Anytime/Anywhere! Remote viewing on Internet Explorer or iPOLis mobile. iPOLis mobile available on your iphone and android devices.

4 IP66 weatherproof security cameras (SEB-1020R)

4 open channels for future expansions

4 x 60ft BNC/AC Power Siamese Cable

Samsung surveillance cameras record at 520TVL.

240 total FPS (Frames per second)

1TB of storage USB 2.0 and records using H.264 compression technology.

Can set for either continuous recording or motion detection mode. DVR will send email notification when motion is detected in the motion detection mode.

Can schedule individual surveillance cameras for continuous, motion, or both by date and time. Can also set security DVR system to ignore certain areas in its field of vision. You can also set motion detection sensitivity.

One of the most flexible CCTV systems out in the market today.

MAC Compatible

4 Surveillance Cameras Included, Room for 4 more: Samsung SEB-1020R is a metal security camera. It is weatherproof with an IP rating of IP65. It was record at 4800TVL and has a night vision range of maximum 50 ft. The SEB-1020R will use a 60ft of Siamese BNC cable included in the kit. The SEB-1020R has lenses with focus length of 3.6mm, a vertical visual angle of 53?, and a horizontal visual angle of 67?. As you know, you have 4 Samsung surveillance cameras straight out of the box but also 4 open channels.

Other 8 Channel Systems SDE-4004N Samsung’s 8 Channel security DVR system. Comes with 4 x SEB-1020R. This system utilizes BNC connectors and comes with 4 BNC Siamese cables. You also have 4 open channels for future expansions.

For your home or business, Samsung SDE-4003N is your security system that is both dependable and affordable. Everything you need to setup and get started is in the box. The SDE-4003N features an 8 channel DVR with a 1 TB hard drive. In the box, you will find 4 night vision water proof cameras. Simple to set up and even easier to use, you can monitor your business or home anytime from anywhere around the world so you will always know what is going on.



Samsung also offers lifetime technical support on this product so you are always covered.

Durable and Easy Setup Cameras

All of the cameras are IP65 compliant which means that they are both waterproof and dust proof and can be placed inside or outdoors in the harshest conditions. They been tested and retested to ensure they are built to last.



Best Image Available

Samsung security systems are known for their high quality recordings. All the cameras for the SDE-4003N capture video with 480 television lines of resolution for a clear, crisp picture.



In addition, SDE-4003N records up to 240 frames per second, making your recordings smooth. Lastly, all our cameras are also night vision capable and can detect and show objects as far as 50 feet even in complete darkness. Each camera can be set to record constantly or customized to record based on motion activation or a scheduled times.

Be Connected At All Times

You can monitor any of the cameras at anytime from anywhere in the world on your PC or smartphone. You can also change and set any functions on your DVR remotely from your PC. You can even set the SDE-4003N to send you alerts via email when programmed events such as motion detection or loss of video signal, occurs.It's truly a system that's been developed with you, the consumer's convenience in mind.  Scan the QR code with your phone to upload iPOLis mobile, the remote viewing app developed by Samsung. You can also search for it on your app store.



Manage Multiple Systems on One Screen

You can view an infinite number of sites from one control location with your SDE-4003N.

Samsung's Smart Viewer® technology allows you to manage multiple systems, located even in multiple locations, from one geographic location. Rather than having to log in and out of each individual system, simply assign names to each camera from each system and view on your PC from anywhere in the world 24 hours a day, 7 days a week.

Large Storage Capacity and Easy to Review

The SDE-4003N comes with a 1 TB Seagate® hard drive. The hard drive is dependable and provides a large capacity to store your video. The DVR also utilizes H.264 compression technology which allows you to record even longer. Searching and reviewing your records is made easy with the option of searching by time or by event.

Samsung Quick Connect: Networking Your DVR Made Easy

Setting up remote viewing is a snap. Simply plug your internet connection to the Samsung SDE-4003 DVR, load the Quick Connect software onto your PC and your router will be located automatically. Using your PC, follow the three easy configuration steps and then you’re ready to go.

Item

SDE-4003N

Video

Inputs

8 composite video 0.5-1 Vpp, 75 ohm

Resolution

704x480 NTSC,704x576 PAL

Live

Frame rate

240fps NTSC, 200fps PAL

Resolution

704x480 NTSC, 704x576 PAL

Muti Screen Display

1/4/6/8/9/Sequence/PIP

Performance

Operating System

Embedded

Linux

Recording

Compression

H.264

Record Rate

NTSC : Up to 60fps @ 704 x 480 / PAL : Up to 50ips @ 704 x 576

NTSC : Up to 120fps @ 704 x 240 / PAL : Up to 100ips @ 704 x 288

NTSC : Up to 240fps @ 352 x 240 / PAL : Up to 200ips @ 352 x 288

Mode

NTSC: Manual, Schedule, Event, Time Laps

Overwrite modes

Continuous

Pre-alarm

Off/5sec

Post-alarm

Up to 6hour (5, 10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)

Search & Playback

Search mode

Date/Time, Event, Backup, Motion

Playback Function

Fast forward / backward (x2,x4,x8,x16,x32,x64) *Backward Play with I-frame Only, Slow forward / backward (x1/2,x1/4,x1/8), Step forward / backward (x2,x4,x8,x16,x32,x64) *Backward Play with I-frame Only

Network

Transmission Speed

CIF 100/120fps

Bandwidth

Up to (4)Mbps, Unlimited (4M) / 2 / 1.5 / 1 Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50 kbps

Bandwidth Control

Automatic

Stream

H.264 (CIF)

Protocol Support

TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP

Monitoring

Smart viewer, Webviewer, Mobile Viewer

Smart Phone

Smart Phone

Support

Storage

Internal HDD

1TB SATA HDD

DVD Writer (Back up)

Not Supported

USB (Back up)

2 USB ports

Security

Password Protection

1 Admin, 10 Group , 10 User per 1 Group

Data Authentication

Watermark

Interface

Monitors

VGA

Analog RGB 1024 x 768 resolution (BNC or VGA selected in booting)

Main Composite

BNC, 1 Vp-p, 75 ohm

Audio

Inputs / Output

1 Line in(CH1) / 1 line out

Compression

G.711

Sampling Rate

8KHz

Alarm

Remote Notification

Notification via e-mail

Connections

Ethernet

1 RJ45 10/100 Base- T

USB

USB2.0, 2 ports (Front/Rear)

Application Support

Mouse(1EA), Remote Controller

General

Electrical

Input Voltage/Current

DC12V ADAPTOR, 4A, 100~250VAC, 50~60HZ, 48 WATT

Power Consumption

MAX.36W (WITH 1xHDD)

Environmental

Operating Temperature / Humidity

0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH

Mechanical (Set)

Dimension (W x H x D)

360 x 44 x 160mm (14.17" x 1.73" x 6.30")

Weight (With hard disks)

TBD

Language

English, Spanish, French, German, Italian, Polish, Portuguese, Russian,Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherland, Thai, Romanian, Serbian, Croatian, Hungarian, Greek





SEB-1020R

ELECTRICAL

Input Voltage

DC 12V



Power Consumption

3W



VIDEO

Imaging Device

1/4" OV7950 Color CMOS



Total Pixels

649H x 583V



Scanning System

Interlace



Synchronization

Internal



Frequency

H: 15, 734, V: 59.94 Hz



Horizontal Resolution

480TVL



Min. Illumination

OLux(IR-LED)



S/N Ratio (Y Signal)

46dB



Signal Output

1.0 Vp-p/75 composite



LENS

Focal Length

3.6mm



Max. Aperture Ratio

2



Angular Field of View

H: 67", V: 53"



OPERATIONAL

Shutter Mode

Auto (Rolling Shutter)



Gain Control

Auto



White Balance

Auto (3200K-6500K)



Digital Noise Reduction

Auto



Day & Night

Auto



IR Distance

15m



ENVIRONMENTAL

Operating Temperature/Humidity

0C ~ + 40C (+32F ~ + 104F)/20% ~ 85%RH



MECHANICAL

Dimension (W x H x D)

64.7 x 63.9 x 85.0 mm (2.55"x 2.52"x 3.35")



Weight

300g (0.66 lb)
