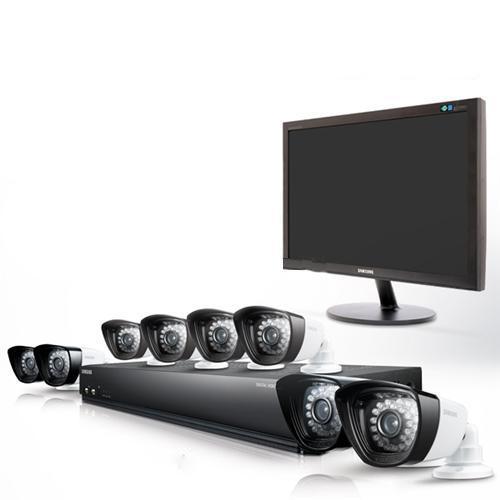

SAMSUNG SCA-P4800N - 8 CHANNEL COMPLETE SECURITY CAMERA SYSTEM 110-220 VOLTS

Display

Video    Inputs   8 Composite video 0.5-1 Vp-p, 75 ohm

Resolution          NTSC : 704 x 480

Live        Frame Rate         NTSC : 240fps

Resolution          NTSC : 704 x 480

Multi Screen Display       1 / 4 / 7 / 9 / Sequence / PIP

Performance

Operating System            Embedded          Linux

Recording            Compression     H.264

Record Rate       NTSC : Up to 60fps@704 x 480, Up to 120fps@704 x 240, Up to 240fps@352 x 240

Mode    NTSC : Manual, Schedule, Event, Time Laps

Overwrite Modes            Continuous

Pre-alarm            Off / 5sec

Post-alarm          Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)

Search & Playback           Search Mode     Date/time, Event, Back up, Motion (*All search included prview function)

Playback Function            Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only

Slow forward / backward (1/2x, 1/4x, 1/8x)

Step forward / backward *Backward play with I-frame only

Network              Transmission Speed        CIF 120/100fps

Bandwidth          Up to 4Mbps, 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps

Bandwidth Control          Automatic

StreamH.264 (4CIF)

Protocol Support              TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP

Monitoring         SmartViewer, Webviewer, Mobile Viewer

Smart Phone      Smart Phone      Android, iOS (iPhone, iPad)

Protocol Support              RTP, RTSP, HTTP, CGI

Transmission Speed        CIF Max. 16fps (Single channel) / CIF Max. 4fps (Quad channel)

Max. Remote Users        Live 1

Storage                Internal HDD      500GB SATA HDD

USB (Back up)    2 USB ports

File Format (Back up)     BU (DVR player), EXE (Include player)

Security                Password Protection      1 Admin, 10 Group, 10 User per 1group

Data Authentication       Watermark

Interface

Monitors             VGA       1 VGA (1024 x 768, 1280 x 1024)

HDMI    1 HDMI (720p/1080p resolution)

Audio    Inputs / Output                4 line in / 1 line out

Compression     G.711

Sampling Rate   8KHz

Alarm    Remote Notification       Notification via e-mail

Connections       Ethernet              1 RJ-45 10/100Mbps Base-T

USB        USB 2.0, 2 ports (Front)

Application Supoort        Mouse, Remote control

Protocol Support (RS-485)            Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, Vicon, GE

General

Electrical              Input Voltage / Current12V DC adaptor, 4A, 100 ~ 250V AC, 50/60Hz, 48watt

Power Consumption      Max. 40W (With 1x HDD)

Environmental  Operating Temperature / Humidity         0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH

Mechanical         Dimensions (WxHxD)     360.0 x 44.0 x 160.0mm (14.17" x 1.73" x 6.30")

Weight (With hard disks)              1.60Kg (3.5 lb)

Language             English, Spanish, French, German, Italian, Polish, Portuguese, Russian,Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherland, Thai, Romanian, Serbian, Croatian, Hungarian, Greek

                SDC-5340BCN

Electrical

Input Voltage    12V DC

Power Consumption      3W

VIDEO

Imaging Device1/3" CMOS

Active Pixels       720 x 480

Scanning System              Interlace

Synchronization                Internal

Frequency          H : 15,734Hz / V : 59.94Hz

Horizontal Resolution     600TV lines

Min. Illumination              0Lux (IR LED)

S/N Ratio (Y Signal)          46dB

UTP Output        N/A

N/A

N/A

LENS

Focal Length       3.6mm

Max. Aperture Ratio       2

Angular Field of View     D : 72?

OPERATIRATIONAL

Shutter Mode   Auto (Rolling shutter)

Gain Control       Auto

White Balance   Auto (3,200°K ~ 6,500°K)

Contrast EnhancementN/A

Digital Noise ReductionAuto

Day & Night        Auto

IR Distance (850nm)        25m (82ft)

ENVIR ONMENTALTAL

Operating Temperature / Humidity         -10°C ~ +50°C (+14°F ~+122°F) / 20% ~ 85%RH

MECHANICAL

Ingress Protection           IP66

Dimensions (WxHxD)     70.7 x 61.0 x 192.1mm (2.78" x 2.40" x 7.56")

Weight241g (0.53 lb)

Samsung 24 inch Monitor

Brand    Samsung

Monitor Type    LED

Monitor Screen Size Details         23.6"

Monitor Screen Size       23"-24"

HDMI Ports

No

Monitor Speakers            No

Monitor Resolution         1920 x 1080

3D Ready Monitor           No

Touch Screen Enabled Monitor  No

Monitor Response Time               5ms

Monitor Contrast Ratio  1000:1 (Static)

Monitor VGA Input         Yes

Monitor DVI Input           Yes

Monitor Dimensions with Stand                21.98" x 17.01" x 8.76"

Monitor Dimensions without Stand         21.98" x 14.22" x 1.94"

Monitor Weight                8.58 lbs

Monitor Refurbished             No
