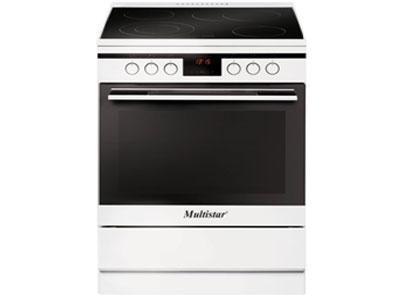

MULTISTAR® AM11685EUW ELECTRIC COOKING RANGES 220/230/400 VOLT, 50 HZ NOT FOR USA

Sensor control timer

Top speed cooking zones

11 Programs

“A” Energy Efficiency rating

Heating indicator light

Triple glass cool door (easy to clean)

Oven Door handle

Clean enameling, gray

New platinum design

Hot air

Automatic operation

Wheeled caravan with base extension, tip over

2 Telescopic shelves

1 Roasting tin

2 Baking sheet

1 Grill

White color

European German Power cord

Technical Specification

Voltage                                                                220/230/400 Volt / 50Hz / 3ph

Oven Capacity                                   65 Liter

Energy efficiency rating                 A

Burner                                                  4

Programs                                             11

Left in the front burner                 210/120mm, Power: 0.75/2.2kw

Front right burner                            145mm, Power: 1.20kw

Back left burner                                                145mm, Power: 1.20kw

Back right burner                             170 x 265mm, Power: 104/202kw

Rapid warm up = Fast heating    Yes

Defrost = Fan without heating   Yes

Intensive grill top = upper heat + grill + fan           Yes

Intensive grill = grill + upper heat                              Yes

Infrared grill                                                                       Yes

Top and bottom heat                                                     Yes

Under heat                                                                         Yes

Hot air with ring radiator                                               Yes

Circulation = top and bottom heat + fan                                Yes

Pizzastufe = hot air + under heat                              Yes

Equipment

Sensor timer                                                                      Yes

Retractable                                                                         Yes

Light cleaning door (dismantling, detachable)     Yes

Baking table on the inside door                                 Yes

Steam Clean / Clean Enamel gray                              Yes

Number of door glasses                                                                3 cool door

Side grilles (telescopic extensions can be retrofitted)      Yes

Telescopic parts 75% / full 100%                                                2 x 75%

Energy efficiency index (%)                                         106.1

Baking sheet size                                                             1280.0 cm2

Baking area dimensions                                                                369 x 435 x 403 mm

Residual heat indicator                                                  Yes

Cooking room                                                                    1

Hear source                                                                        Electric

Conventional energy consumption:                         0.99kWh

Hot air / convection                                                        0.87 kWh

Power consumption                                                       9.90kW

Noise level 52 dB(A) re1pW                                         52 dB(A) re1pW

Weight and Dimensions

Unit Dimensions                                                               33.4”H x 24”W x 24”D

Shipping Dimensions                                                      38.38”H x 25”W x 28”D

Unit Weight                                                                        46kg  (101Lb.)

Shipping Weight                                                               51kg (112Lb.)
