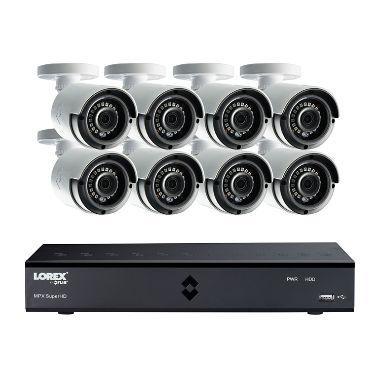

Home » 220 volts Security Systems » 8 CH DVR CCTV / SECURITY SYSTEM



About this item True 4MP SuperHD recording on all cameras with 2 TB HDD DVR IR Night vision range up to 130' (40m) in ambient lighting and 90' (28m) in total darkness LOREX Secure app with 3-step setup connects your system to view remotely from any IOS or Android smartphone, tablet, PC or Mac

Product Code: LHA41082TC8B   Product ID: 29325
Product sold by: samstores.com

$ 545

Availability: In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-7 business days!



Number of Cameras:      8

Number of Channels:     8

Hard Drive Space:            2TB

Wired or Wireless:           Wired

Average Minimum Setup Time: 45 minutes


DVR Model:        LHA4108

Number of Channels:     8

Number of Channels with Audio:              N/A

Hard Drive Size:                2TB

Maximum Hard Drive Expandability:        1x 6TB

Recording Resolution:    NTSC: 4MP / 3MP / 1080p / 720p / 960H

Recording Frames per Second:  4MP: 15fps (per ch), 3MP: 20fps (per ch), 1080P: 30fps

Recording Compression:               H.264

Recording Modes Available:        By hour, by day, by recording mode, by motion, by channel

Wireless Camera Receiver:          n/a

Video Motion Detection Recording:        Fixed Grid NTSC (44×30) / PAL (44×36)

Pre-Event Recording/Capacity:  Max. 2 Secs

Mobile App Viewing:      Yes

E-Mail Alert Notification:              Text with snapshot

Maximum Number of Remote Viewers:

Playback and Search Options:     By Time/Date and Motion Event

Data Backup Options:     USB Flash Drive and HDD - H.264/MP4/AVI file

Digital Zoom:      Click and drag digital zoom in live view and playback

Pan-Tilt-Zoom Controls:                RS-485 Pelco D and P Protocol

Alarm Terminal Trigger Recording / # of Inputs:  None

Operating System:          Linux (embedded)

Included Accessories:    1 × HDMI cable, 1 × Ethernet cable, 1 × DVR power adapter, 1 × Remote control, 1 × Mouse

Camera Cable Connection Type:               BNC

Compatible Cameras:     4MP, 1080P Analog Cameras

DVR Dimensions:             12" x 8.3" x 2"


Camera Model and Type:             LAB243

Number of Cameras:      8

Image Sensor Type:        1/3”, 4 Megapixel CMOS

Resolution:         4MP

Effective Pixels:                H: 2592 × V:1520

Aperture:            3.6mm F2.0 / Fixed

Pan-Tilt-Zoom Capability:             No

Optical Zoom:    No

Angle of View:  89° Horizontal

Color or Black and White:             Color

Wireless Camera-DVR Connection:          n/a

Audio Capability:              No

Number of Infrared LEDs:            18

Night Vision Distance:    130' (40m) ambient light/ 90' (28m) total darkness

Recommended for Outdoor Use:             Yes

Weather Resistance (IP Rating):                IP66

Operating Temperature:              22° ~ 140°F / -30° ~ 60°C

Operating Humidity:       < 95% RH

Tamper Protection:         Vandal resistant housing and bracket

Compatible Cables and Connector Type:               BNC/Power

Length of Cable Included:            60ft

Camera Dimensions:      2.7” × 6.2” × 2.7”
