KRAMER CON-COMP-RCA/M/RA/RG-59 RCA (M) RIGHT ANGLE COMPRESSION CONNECTOR FOR RG-59 COAX - RED CODED 110 VOLTS USE ONLY IN USA

Brand: Kramer SKU: CON-COMP-RCA/M/RA/RG-59 Weight: 1.00 lbs Warranty: 3 Years

Product Code: KR-CON-COMP-RCA/M/RA/RG-59   Product ID: 21105
Product sold by: samstores.com

$ 3.49

Availability: In Stock New

Shipping Information:
Shipping Charges: $5
Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-7 business days!

DESCRIPTION



Kramer's solder-free compression connectors reduce service calls by supplying strong, secure and lasting connections. Crafted to withstand 80lb (36.3kg) of force, our compression connectors provide full 360- electrical continuity even under the most punishing conditions. The radial design reduces the possibility of an impedance problem and defeats ingress/egress at the connector. Internal “O” sealing rings prevent moisture migration, while the large ferrule surface insures proper RF and digital interfaces.



    One Compression Tool for All Connectors.

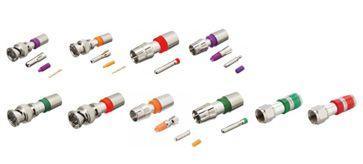

    Color-Coded Connectors - See table below.

    25 Connectors Per Package.



SPECIFICATIONS

Center Conductor:           0.0399 - 0.0418 inch / 1.0135 - 1.0617 mm

Dielectric:            0.180 - 0.193 inch / 4.572 - 4.9022 mm

Outer Jacket:      0.265 - 0.305 inch / 6.731 - 7.747 mm

Center Conductor:           0.0399 - 0.0418 inch / 1.0135 - 1.0617 mm

Dielectric:            0.180 - 0.193 inch / 4.572 - 4.9022 mm

Outer Jacket:      0.265 - 0.305 inch / 6.731 - 7.747 mm

Center Conductor:           0.0317 - 0.0339 inch / 0.8052 - 0.8611 mm

Dielectric:            0.144 - 0.157 inch / 3.6576 - 3.9878 mm

Outer Jacket:      0.232 - 0.273 inch / 5.8928 - 6.9342 mm

Center Conductor:           0.015 - 0.025 inch / 0.381 - 0.635 mm

Dielectric:            0.095 - 0.105 inch / 2.413 - 2.667 mm

Outer Jacket:      0.145 - 0.160 inch / 3.683 - 4.064 mm

Center Conductor:           0.0317 - 0.0339 inch / 0.8052 - 0.8611 mm

Dielectric:            0.144 - 0.157 inch / 3.6576 - 3.9878 mm

Outer Jacket:      0.232 - 0.273 inch / 5.8928 - 6.9342 mm

Center Conductor:           0.015 - 0.025 inch / 0.381 - 0.635 mm

Outer Jacket:      0.095 - 0.160 inch / 2.413 - 4.064 mm

Dielectric:            0.065 - 0.078 inch / 1.651 - 1.9812 mm

Center Conductor:           0.015 - 0.025 inch / 0.381 - 0.635 mm

Dielectric:            0.095 - 0.105 inch / 2.413 - 2.667 mm

Outer Jacket:      0.145 - 0.160 inch / 3.683 - 4.064 mm

Center Conductor:           0.0399 - 0.0418 inch / 1.0135 - 1.0617 mm

Dielectric:            0.180 - 0.193 inch / 4.572 - 4.9022 mm

Outer Jacket:      0.265 - 0.305 inch / 6.731 - 7.747 mm

Center Conductor:           0.015 - 0.025 inch / 0.381 - 0.635 mm

Dielectric:            0.065 - 0.078 inch / 1.651 - 1.9812 mm

Outer Jacket:      0.095 - 0.160 inch / 2.413 - 4.064 mm
