KRAMER CON-COMP-BNC/M/RG-179 26-28 5PCS BNC (M) COMPRESSION CONNECTOR FOR 26/28 AWG MINICOAX ORANGE CODED 110 VOLTS ONLY FOR USA

Kramer CON-COMP-BNC/M/RG-179 (26-28#) 5pcs BNC (M) Compression Connector For 26/28 AWG MiniCoax - Orange Coded Brand: Kramer SKU: CON-COMP-BNC/M/RG-179 (26-28#) Weight: 1.00 lbs Warranty: 3 Years

Product Code: KR- CON-COMP-BNC/M/RG-179   Product ID: 21097
Product sold by: samstores.com

$ 34.99

Availability: In Stock New

Shipping Information:
Shipping Charges: $18
Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

Kramer CON-COMP-BNC/M/RG-179 (26-28#) 5pcs BNC (M) Compression Connector For 26/28 AWG MiniCoax - Orange Coded

Brand: Kramer

SKU: CON-COMP-BNC/M/RG-179 (26-28#)

Weight: 1.00 lbs

Warranty: 3 Years

DESCRIPTION

Kramer's solder-free compression connectors reduce service calls by supplying strong, secure and lasting connections. Crafted to withstand 80lb (36.3kg) of force, our compression connectors provide full 360- electrical continuity even under the most punishing conditions. The radial design reduces the possibility of an impedance problem and defeats ingress/egress at the connector. Internal “O” sealing rings prevent moisture migration, while the large ferrule surface insures proper RF and digital interfaces.

One Compression Tool for All Connectors.

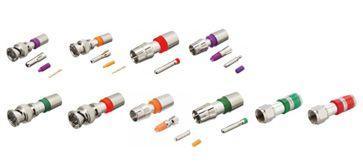

Color-Coded Connectors - See table below.

25 Connectors Per Package.

SPECIFICATIONS

Center Conductor:          0.0399 - 0.0418 inch / 1.0135 - 1.0617 mm

Dielectric:            0.180 - 0.193 inch / 4.572 - 4.9022 mm

Outer Jacket:     0.265 - 0.305 inch / 6.731 - 7.747 mm

Center Conductor:          0.0399 - 0.0418 inch / 1.0135 - 1.0617 mm

Dielectric:            0.180 - 0.193 inch / 4.572 - 4.9022 mm

Outer Jacket:     0.265 - 0.305 inch / 6.731 - 7.747 mm

Center Conductor:          0.0317 - 0.0339 inch / 0.8052 - 0.8611 mm

Dielectric:            0.144 - 0.157 inch / 3.6576 - 3.9878 mm

Outer Jacket:     0.232 - 0.273 inch / 5.8928 - 6.9342 mm

Center Conductor:          0.015 - 0.025 inch / 0.381 - 0.635 mm

Dielectric:            0.095 - 0.105 inch / 2.413 - 2.667 mm

Outer Jacket:     0.145 - 0.160 inch / 3.683 - 4.064 mm

Center Conductor:          0.0317 - 0.0339 inch / 0.8052 - 0.8611 mm

Dielectric:            0.144 - 0.157 inch / 3.6576 - 3.9878 mm

Outer Jacket:     0.232 - 0.273 inch / 5.8928 - 6.9342 mm

Center Conductor:          0.015 - 0.025 inch / 0.381 - 0.635 mm

Outer Jacket:     0.095 - 0.160 inch / 2.413 - 4.064 mm

Dielectric:            0.065 - 0.078 inch / 1.651 - 1.9812 mm

Center Conductor:          0.015 - 0.025 inch / 0.381 - 0.635 mm

Dielectric:            0.095 - 0.105 inch / 2.413 - 2.667 mm

Outer Jacket:     0.145 - 0.160 inch / 3.683 - 4.064 mm

Center Conductor:          0.0399 - 0.0418 inch / 1.0135 - 1.0617 mm

Dielectric:            0.180 - 0.193 inch / 4.572 - 4.9022 mm

Outer Jacket:     0.265 - 0.305 inch / 6.731 - 7.747 mm

Center Conductor:          0.015 - 0.025 inch / 0.381 - 0.635 mm

Dielectric:            0.065 - 0.078 inch / 1.651 - 1.9812 mm

Outer Jacket:     0.095 - 0.160 inch / 2.413 - 4.064 mm
