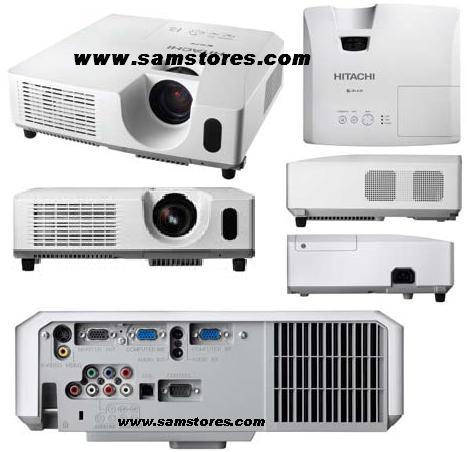

HITACHI CP-X3011 PROJECTOR

Key Features

" 3,200 ANSI Lumens

" Native XGA Resolution

" 2000:1 Contrast Ratio Using Active IRIS

" 8.2 lbs.

" Easily accessible hybrid filter (5,000 hours between maintenance)

" Lamp life approximately 6,000 Hours (Eco Mode)*

" Audio Pass Through

" 16W Speaker Output

" 0.5 watt power saving mode using 120V

" Template Function

" 2 RGB In, 1 RGB out / Composite / S-Video

" Instant On/Off

" Security Bar / Transition Detector

" 29 dB (Eco Mode)

Specifications

Model Name                                   CP-X3011 Series

Liquid Crystal Panel Structure      0.63 polysilicon active-matrix TFT x 3

Number of Pixels                            786,432 pixels

Resolution

Video                                                    540 TV lines

RGB                                                        1024 dots X 768 lines

Colors                                                16.7 million colors

Aspect Ratio                                     Native 4:3/16:9 compatible

Lens                                                    manual zoom x 1.2

Throw Ratio (distance: width)       1.5 - 1.8: 1

Lamp                                                   210W UHB

Brightness                                          3,200 ANSI Lumens

Expected Lamp Life                          Approximately 3,000 hours (normal)   6,000 hours (Eco mode)*

Contrast Ratio                                   2000: 1 using Active Iris

Speaker Output                                 16W (2 x 8W speakers)

Power Supply                                     AC100 - 120V / AC220 - 240V 50/60 Hz Power

Power Consumption                         330W

Operating Temperature                   5˚C - 35˚C (41˚F - 95˚F)

Input Signals

RGB                                                         VGA, SVGA, XGA,SXGA, SXGA+, UXGA, MAC 13 , MAC 16

Composite Video                             NTSC, NTSC4.43, PAL, SECAM, PAL-M, PAL-N

Component Video                           480i, 576i, 480p, 720p, 1080i, 1080p

Acoustic Noise Level                        35 dB (29 dB in Eco Mode)

H-Sync                                                15 Hz - 106 Hz

V-Sync                                                50 kHz - 120 kHz

Vertical Keystone                             + / - 30˚

Approvals                                          UL, C-UL, FCC, CE, RoHS

RGB Input            Analog RGB         15pin Mini-Dsub x 2

RGB Output         RGB                      15pin Mini-Dsub x 1

Video Input

S-Video                                               Mini DIN 4-pin connector x 1

 Composite Video                             RCA jack x 1

 Component Video                           RCA jack x 3

Audio

Input                                                    3.5 Stereo Mini jack

Output                                                 RCA(L/R) x 1 pair

Control Terminals                             9-pin D-sub connector x 1 (RS-232 control)

Other                                                  USB connector (USB mouse) x 1

Dimensions (W x D x H)                   12.5 x 3.9 x 11.3

Weight                                                8.2 lbs.

Closed Caption                                   CC1, CC2, CC3, CC4. T1, T2, T3, T4

Additional Features

Kensington Slot, Digital Gamma Correction, Whiteboard/ Blackboard More, Input Source Naming, My Memory /My Screen / My Buttons / My Text, Auto V Keystone, Serial Number on Side

Supplied Accessories

Remote Control, Batteries (AA), RGB cable, US Power Cord, Multiple language operator / Safety Manual

Lamp - CPX2010LAMP (DT01021)

Remote Control - HL02483

Filter - MU06481
