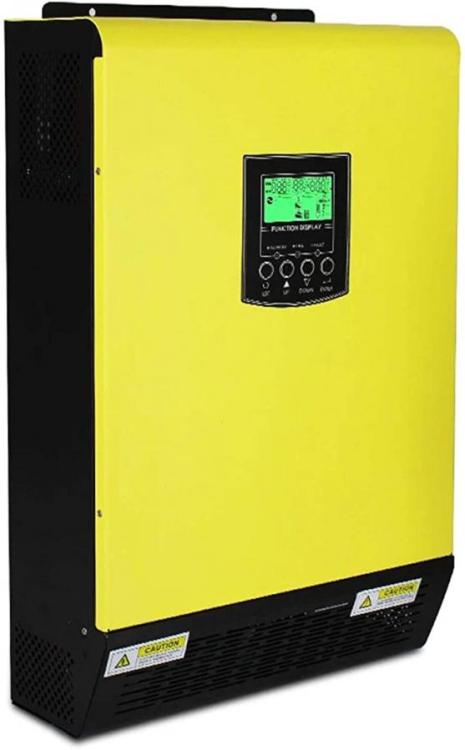

3000W HYBRID SOLAR INVERTER 24V / 48V 230VAC HIGH PV INPUT 5500W 450VDC 90A MPPT SOLAR CHARGER 60A CHARGER MAINS INVERTER 24V 220-240 VOLTS NOT FOR USA
"★ Hybrid Solar Inverter (On/Off Inverter) Output power factor PF = 1.0 mains connected with energy storage ★ Configurable priority of AC/solar charger via the LCD setting. ★ Intelligent charger design for optimized battery performance. ★ Compatible with mains voltage or generator power. Overload, over temperature, short circuit protection, ★Error recording, history recording External WiFi devices. Parallel operation with up to 9 units"
Product Code: B08QTXMK2V Product ID: 32599
Product sold by: samstores.com
Availability: In Stock New
Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!
Model: 3K-24V.
Max PV array power: 5500 W.
Output power: 3000 W.
MPPT range @ operating voltage: 120-450VDC.
Grid binding operation.
Grid output (AC).
Rated power voltage: 220/230/240VAC.
Output voltage range: 184-265VAC.
Nominal output current: 13.6 A/13.0 A/12.5 A.
Efficiency: up to 93%.
Off-grid, hybrid operation.
Grille entrance.
Acceptive input voltage range: 120-280VAC
Frequency range: 50 Hz / 60 Hz (auto sensing).
Battery mode output (AC).
Rated power voltage: 220/230/240VAC.
Output waveform: pure sine wave
Battery charger.
Nominal DC voltage: 24VDC.
Maximum AC current: 60 A.
Maximum charge current (AC + PV): 90 A.
Maximum output power.
Maximum output power: 3000 W.
Surge power: 6000W
Automatic transmission time: <10ms.
Parallel function: yes.
Communication: USB or RS232, WiFi, generator dry contact
ENVIRONMENT:
Humidity: 0 ~ 90% RH (no condensate).
Operating temperature: 0 to 50
Net weight (kg): 10.35.
Rough weight (kg): 11.25.
Dimensions (W x D x H): 295 x 468.6 x 120.2 mm.
Package: 1 x hybrid solar inverter.
