The 1x3 Component w/Audio Distribution Amplifier is the perfect solution for anyone who needs to send one source of high definition component video with Audio to multiple displays at the same time. It supports all component sources and displays. Supported resolutions: 480i, 480p, 576i, 576p, 720p, 1080i and 1080p. The AT-COMP13A is capable to send signal from one source to all 3 displays at the same time without signal degradation. The 1x3 Splitter will support long cable runs up to100ft ( 30M ).
Accepts one component w/audio input and splits the input to 3 identical and buffered outputs
Resolutions supported: 480i, 480p, 576i, 576p, 720p, 1080i and 1080p
High bandwidth performance-480MHz bandwidth at-3dB
Supports SD (composite, YCbCr) and HDTV (YPbPr, RGsB) input signal
Plug and Play
Video Input: YPbPr x1 or RGsB x1 (or RGBHV), or composite x3 1 Vp-p@ 75 ohm
Video Output: YPbPr x3, or RGsB(or RGBHV) x3, or composite 3x3
Audio input: Coaxial (S/PDIF) x 1 + R/L x 1
Audio output: Coaxial (S/PDIF) x 3 + R/L x 3
Analog audio input/output: Audio 2 Vrms max 47k ohm.
Horizontal/Vertical sync 5Vp-p max and H frequency 10KHz~100KHz, V frequency 20Hz~200Hz.
Video Bandwidth: 480MHz (-3dB)
Video System: NTSC or Pal compatible
Resolution: up to 1080p
Differential gain: 0.05%
Differential phase: 0.05 degree
Power Supply: 5V 2A~1A
Dimensions: 5.5"W x 1.5"H x 4.1"D
Shipping Weight: 3Lbs.

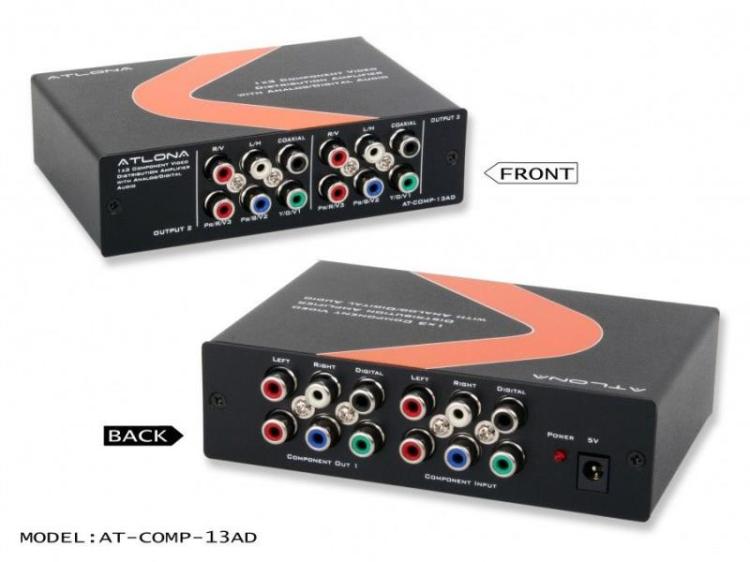

1x3 Component w/audio Splitter
One 6 foot Component cable
5V Universal Power Supply ( 110/220V )
