YAMAHA YHT298 3D RECEIVER AND SPEAKER PACKAGE 110 - 220 240 VOLTS NOT FOR USA

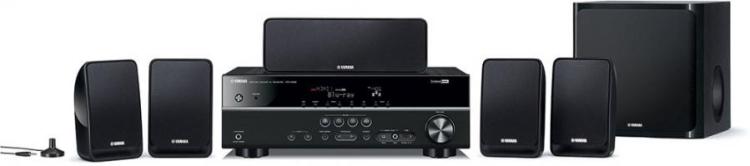

Yamaha YHT298 110-240 Volt Home Theater Receiver

This Yamaha YHT298 is a home theater receiver that is 110-240 volts compatible for world wide use. This receiver works anywhere in the world with Pal, NTSC, or SECAM video signals. Ensures loud, dynamic sound will be heard with clear and realistic clarity. The YHT298 has easy one touch operation, with four SCENE buttons, making operation a breeze. This AV receiver also has an ECO mode which lowers power consumption by 20%. This Yamaha YHT298 is ideal for enjoying the ultimate surrround sound experience.

5 Channel powerful surround sound

USB port for direct access to MP3 or WMA tracks on USB devices

SCENE buttons with direct power on

Pal / Secam / NTSC support

Stylish, curvy speaker design looks fresh in any interior

ECO mode operation for about 20% less power consumption

Yamaha YHT298 110-240 Volt Home Theater Receiver

This Yamaha YHT298 is compatible for 110-220 volt. It reproduces high definition audio, and using Yamaha's exclusive Advanced YST technology, delivers clean and crisply powerful bass. It's rounded corners give the speakers their stylish appearance. A USB port on the front gives easy connection of your iPod or Iphone. The easy one touch SCENE buttons allow for the operation of the reciever to be so simple.

Features

5.1-channel powerful and stylish surround system

HD Audio with CINEMA DSP

HD Audio Compatible Speakers, for Great Movie Sound

Advanced YST for Awesome Deep Bass

HDMI (4 in/1 out) with 3D and Audio Return Channel

USB Digital Connection for iPod and iPhone on the Front Panel

USB Port for Direct Access to MP3 or WMA Tracks on USB Devices

YPAO for Automatic Speaker Setup

SCENE for Easy One-Touch Operation

OSD with Color Icons

Curvy Design for Chic Interiors

ECO mode lowers power consumption by 20%*

Auto Power Down

Yamaha YHT298 110-240 Volt Home Theater Receiver Specifications

Power amplifier section

Channel: 5.1

Rated output:100W (6ohms, 0.9% THD)

Maximum Effective Output Power (1kHz, 1ch driven) (JEITA):135W (6ohms, 10% THD)

Surround Sound Processing

CINEMA DSP

17 DSP Programs

SILENT CINEMA/Virtual CINEMA DSP

Dolby True HD

Dolby Digital Plus

DTS-HD Master Audio

Audio Features

Compressed Music Enhancer

YPAO sound optimization

Adaptive DRC (Dynamic Range Control)

Initial Volume & Maximum Volume Setting

Audio Delay        Yes (0-250 ms)

192kHz/24-bit DACs for all channels

Video Features

HDMI 3D passthrough

HDMI Audio Return Channel

Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync

4K Ultra HD Pass-through

Connectivity

HDMI Input/Output:4 / 1

HDMI CEC

USB Input: iPod/iPhone, USB Memory, Portable Audio Player

Front AV Input: USB/Mini Jack/Composite

Digital Audio Input/output: Optical          2 / 0

Digital Audio Input/output: Coaxial          2 / 0

Analog Audio Input/Output:4 (front 1) / 2

Component Video Input/Output:2 / 1

Composite Video Input/Output:4 (front 1) / 1

Preout  SW

Headphone Output: 1

Package Speaker

Speaker System

System Frequency Response     30 Hz–25 kHz

Impedance         6 ohms (without subwoofer)

Front Speaker

Type      Full-range acoustic suspension

Driver    7cm full-range cone

Nominal Input Power     30 W

Maximum Input Power 100 W

Sensitivity           83 dB/2.83 V/1 m

Dimensions (W x H x D) 115 x 176 x 88 mm

Weight 0.48 kg / unit

Center Speaker

Type: Full-range acoustic suspension

Driver    7cm full-range cone

Nominal Input Power     30 W

Maximum Input Power 100 W

Sensitivity           84 dB/2.83 V/1 m

Dimensions (W x H x D) 291 x 101 x 103 mm

Weight 0.68 kg

Surround Speaker

Type: Full-range acoustic suspension

Driver    7cm full-range cone

Nominal Input Power     30 W

Maximum Input Power 100 W

Sensitivity           83 dB/2.83 V/1 m

Dimensions (W x H x D) 115 x 176 x 88 mm

Weight 0.48 kg / unit

Subwoofer

Type: Advanced YST with Linear Port

Driver    16cm cone

Output Power   50 W (5 ohms, 100 Hz, 10% THD)

Dynamic Power                100 W

Dimensions (W x H x D) 262 x 264 x 299 mm

Weight 7 kg
