9-channel amplifier 150 watts per channel into 8 ohms (20-20,000 Hz) at 0.06% THD, with 2 channels driven Dolby� and DTS� surround sound decoding analog-to-HDMI video upconversion (up to 1080p and 4K) Yamaha's advanced video processing with edge and motion adaptive deinterlacing for sharp images and smooth motion YPAO (Yamaha Parametric Room Acoustic Optimizer) with multi-point and speaker angle measurement for automatic speaker calibration and more precise surround sound for up to 8 listening positions (microphone included) Cinema DSP HD3 creates increased realism for movie soundtracks with "front presence" speakers in a 9.2-channel home theater Cinema DSP modes add richness and depth to music and movie soundtracks Adaptive Dynamic Range Control limits the volume level on sound effects and commercials for more discreet late-night listening Dialogue Lift and Level Adjustment for clearer, louder dialogue while watching movies and shows

Product Code: RXA3030D   Product ID: 23757
Product sold by: samstores.com

$ 1799

Availability: In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!


Number Of Channels     9

Stereo RMS Power (watts)          150

THD in Stereo    0.06 %

Frequency Bandwidth (stereo) 20-20k Hz

FM Sensitivity    Not Given

HD Radio Tuner                 Built-in

On-Screen Display           Thru HDMI

Auto Speaker Calibration              YPAO RSC

HDMI Standby Pass-through       Yes

Composite Video Conversion     From Composite to HDMI, Component, S-video

S-Video Conversion        ---

Component Video Conversion   From Component Video to HDMI, Composite, S-video

HDMI to HDMI Upconversion     Yes

Internet-ready Yes

Apple AirPlay     Built in

App Remote Control      Yes

Bluetooth-compatible   Optional

USB port for iPod/iPhone             Yes

DLNA Certified Audio

MHL-compatible              Yes

Multibrand Remote Control        Yes

Learning Remote             Yes

LCD Remote       Yes

Width (inches) 17-1/8

Height (inches)                 7-1/2

Depth (inches) 19-3/8

Weight (pounds)              40.1

Multi-room Audio--Video

Powered Multi-room Audio Output        Yes

Preamp Multi-room Audio Output           Yes

Multi-room Video            Yes

Multi-room HDMI Output            Yes

Surround Processing

Dolby Digital       DD, EX, TrueHD, DD+

Dolby Atmos      No

DTS        DTS, ES, HD, HDMA, Neo6, 96/24

Inputs & Outputs

Phono Input       1

Audio-Video Inputs        8

Audio-only Inputs            5

S-Video Inputs ---

S-Video Outputs              ---

S-Video Monitor Outputs             ---

Component Video Inputs             4

Component Video Monitor Outputs       1

Optical Digital Inputs       4

Coaxial Digital Inputs      3

Optical Digital Outputs   1

Coaxial Digital Outputs   None

HDMI Inputs      8

HDMI Monitor Outputs                 2

Subwoofer Outputs        2

Multi-Channel Analog Input        Yes

Multi-channel Preamp Output   Yes

Main Speaker Output Pairs          1

Main Speaker Terminals               Posts

Ethernet Port    1

USB Connections             1 Front

Removable Power Cord                IEC 2-prong

  Name Rating Comments

Also Purchased

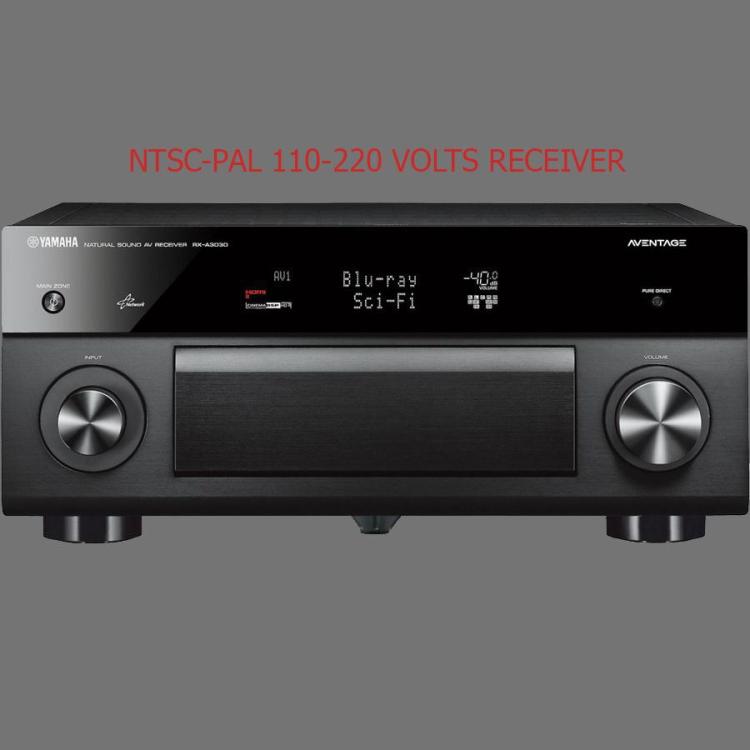

Yamaha RXA3030D 4 ZONES A/V RECEIVER NTSC PAL- 110-220 volts
