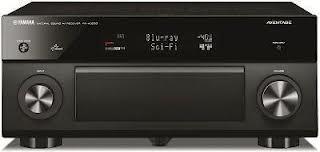

YAMAHA RXA3020 9.2CH AV RECEIVER COMPATIBLE FOR WORLDWIDE USE PAL /NTSC A/V RECEIVER FOR 110-240 VOLTS

·EXCLUSIVE! We carry the World Wide version that works in any country!


·Workswith PAL, NTSC, Secam TVs.


·Workson 110-240 volts 50-60 hertz. Our model has a voltage selector switch to set the voltage. It is not modified in any way. It comes like this from the Yamaha Factory!

The RX-A3020 is a powerful statement in the evolution of  A 9.2ch AV yamaha receiver, it offers 11.2ch expandability and superb surround sound realism with CINEMA DSP HD3. Employ powerful noise reduction functions using the HQV Vida video processor. The double bottom frame ensures optimal sound while features like AirPlay and multi-zone HDMI output provide increased flexibility. It is packed with power, has processing flexibility and every aspect of chassis construction has been engineered for enhanced performance.

Designed to deliver the highest levels of audio performance

Powerful 9-channel surround sound, 150W per channel (8 ohms, 20 Hz-20 kHz, 0.06% THD, 2ch driven)

CINEMA DSP HD3 expands the sound field vertically for more thrilling and realistic surround sound

Anti-Resonance Technology (A.R.T.) Wedge helps to ensure that vibrations do not affect sound quality

H-shape cross member frame and rigid bottom frame/double bottom construction

Zone HDMI ensures flexible multi-room AV configuration

High-resolution Music Enhancer further heightens musicality from the original content

HQV Vida high-class chipset “VHD1900” for HD/SD video

Network functions such as AirPlay and AV Controller App

4K pass-through and upscaling for next-generation high resolution images

HDMI (eight inputs - with one on front - and two out) with 3D and Audio Return Channel

YPAO R.S.C. (Reflected Sound Control) sound optimization with multi-point/speaker angle measurement

Front panel USB digital connection for iPod, iPhone and iPad

ECO mode operation for about 20% less power consumption

Dialogue Lift and Dialogue Level Adjustment for natural dialogue and vocals

Full LED backlight, learning and preset remote unit

Aluminum front panel offers visual and aural benefits

HD radio

mplifier Section

• Channel : 9.2
• Rated Output Power (1kHz, 2ch driven) : 165W (8ohms, 0.9% THD)
• Rated Output Power (20Hz-20kHz, 2ch driven) : 150W (8ohms, 0.06% THD)
• Dynamic Power per Channel (8/6/4/2 ohms) : 175/220/295/410W

Surround Sound Processing

• CINEMA DSP : Yes (3D)
• DSP Programs : 23
• Compressed Music Enhancer : Yes
• Virtual Presence Speaker : Yes
• Dialogue Lift : Yes (no Presence speakers required)
• SILENT CINEMA / Virtual CINEMA DSP : Yes
• Dolby TrueHD : Yes
• Dolby Digital Plus : Yes
• Dolby Pro Logic IIx : Yes
• DTS-HD Master Audio : Yes
• Dialog Level Adjustment : Yes

Audio Features

• Pure Direct : Yes (with video on mode)
• YPAO multi-point measurement : Yes with R.S.C. (Reflected Sound Control)
• Adaptive DRC (Dynamic Range Control) : Yes
• Initial Volume & Maximum Volume Setting : Yes
• A.R.T. Wedge : Yes
• Bi-amp capability : Yes
• Audio Delay : Yes (0-500 ms)
• 192kHz/24-bit DACs for all channels : Yes (Burr-Brown)

Video Features

• HDMI 3D passthrough : Yes
• HDMI Audio Return Channel : Yes
• Component upconversion : Yes
• HDMI upscaling : Yes (analog to HDMI / HDMI to HDMI)
• Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync : Yes
• 4K Pass-through & 4K Upscaling : Yes

Extensive Connection

• HDMI Input/Output : 8 (1 front) / 2 (simultaneous)
• HDMI CEC : Yes (SCENE, device control)
• USB Input : iPod/iPhone/iPad, USB memory, portable audio player
• Network Port : Access to vTuner Internet Radio service and DLNA 1.5 compatible
• Front AV Input : HDMI, USB, analog audio, optical, composite
• Digital Audio Input/Output: Optical     4 (1 front) / 1
• Digital Audio Input/Output: Coaxial     3 / 0
• Analog Audio Input/Output : 10 (1 front) / 1
• Phono Input : Yes
• Component Video Input/Output : 4 / 1
• S-Video Input/Output : 4 / 1
• Composite Video Input/Output : 5 (1 front) / 1
• Multi-Channel Input : 8ch
• Preout : 7.2ch
• Headphone Output : 1

Connectivity

• AirPlay: Yes

Tuner Section

• FM/AM Tuner : Yes
• HD Radio Compatibility : Yes

User Interface

• On-screen display : Graphical user interface
• SCENE : SCENE PLUS (12 sets)
• App Control : Yes (iPhone/iPad, Android phone/tablet, Kindle Fire)
• Web Browser Control : Yes
• Remote Control Unit : Yes (Preset)

Zone Control

• Zone 2 Audio Output : Preout
• Zone 3 Audio Output : Preout
• Powered Zone : Zone 2/3
• Zone B Output : Yes (HDMI)
• Zone Video Output : Component, S-Video, composite
• Zone GUI : Yes
• Party Mode : Yes
• RS-232C Interface : Yes
• +12V Trigger Output : 2
• Remote (IR) Input/Output : 2 / 2

General

• ECO mode : Yes
• Standby Power Consumption (IR only) : ≤0.3W (typical)
• Auto Power Down : Yes
• Dimensions (W x H x D) : 17-1/8” x 7-1/2” x 18-3/8”
• Weight : 40.1 lbs.
• Shipping Dimensions (W x H x D) : 21-3/8" x 11-3/4" x 22-1/2"
• Shipping Weight (lbs.) : 47.4 lbs.

Specifications

• Detachable Power Cord : Yes
• Front Panel : Aluminum front panel
