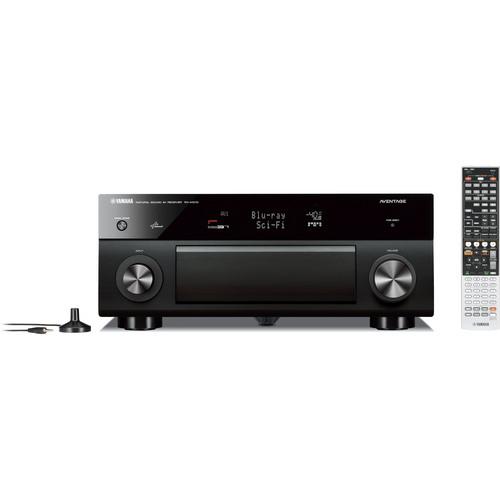

YAMAHA RXA1010 9.2-CHANNEL A/V RECEIVER PAL NTSC FOR 110-240 VOLTS

·EXCLUSIVE! We carry the World Wide version that works in any country!


·Workswith PAL, NTSC, Secam TVs.


·Workson 110-240 volts 50-60 hertz. Our model has a voltage selector switch to set the voltage. It is not modified in any way. It comes like this from the Yamaha Factory!

AVENTAGE Series AV Receiver

The AVENTAGE line of high-performance AV receivers is based on the audio design concept of providing a massive, full-bodied sound for movie sound effects and the accurate reproduction of music sources. By expertly harmonizing traditional and advanced technologies, every factor that affects sound quality, from materials and parts to construction, layout, vibration damping (unique A.R.T. Wedge foot) and "fine-tuning" the sound, is handled with no other thought than to achieve the best possible audio quality. As a result, every AVENTAGE model has the ability to reproduce the most subtle details of high-definition sound, so that listeners can enjoy a truly high-class sound studio experience at home.

A.R.T. Wedge for Vibration Resistance

The A.R.T. (Anti-Resonance Technology) Wedge is a fifth foot in the center of the unit. It dampens vibrations from the power transformer, power transistors and heat sinks, as well as vibrations that might be caused by the sound from the speakers. This elimination or reduction of vibration provides an audible increase in sound quality throughout the AVENTAGE series.

Aluminum Front Panel

All of the AVENTAGE components feature the same sleek, clean design, with an elegant aluminum front panel and silky touch volume/selector knobs. The aluminum front panel is used to effectively shield sensitive circuitry from external noise and electronic energy generated by dimmer switches, fluorescent lighting, video monitors and so on. This ensures optimum sonic performance in the widest range of installation environments.

Symmetrical Power Amplifier Layout

This is just one of the many design details that all combine to create a superior receiver. The interior of the unit has been precisely planned, circuit-routed and built so that the left and right channels are physically and electrically isolated. This naturally maximizes channel separation, but also greatly improves signal to noise ratio and helps to achieve a wide, open sound stage.

High Quality Parts Allow Sound Tuning for Optimum Performance

Each part inside of an AV receiver affects the sound quality. For the AVENTAGE models, extra time was spent to find and develop optimized parts, which were then extensively tested in prototype units. This testing process allowed our sound technicians to effectively "tune" the receiver's sound to achieve the highest performance possible.

HDMI With 3D and Audio Return Channel

3D means this receiver can handle 3D signal data. The Audio Return Channel function enables data to be sent and received via the same HDMI cable, so you can hear the sound from the TV via a single HDMI cable, with no need for an extra optical cable.

Analog and HDMI Video Upscaling to Full HD 1080p

The RX-A1010 will upscale video signals up to 1080p. HDTVs capable of 720p, 1080i or 1080p resolution can provide more detailed picture.

High Quality Video Processing With Edge Adaptive Deinterlacing

In ordinary deinterlacing, pixels in areas of movement are interpolated by upper and lower ranges. This causes jaggies in diagonal lines. Edge adaptive deinterlacing detects the direction of the line and interpolates the pixels optimally.

Network Functionality

The RX-A1010 provides a variety of network functions that enable you to access more sources and also enhance operation. You can connect the receiver to a PC to enjoy Internet Radio, Pandora, Rhapsody, Sirius XM and Napster, and use a Web Browser Control. The AV Controller app lets you control various functions from your iPhone or iPad, or other compatible device.

AV Controller App for Easy, Convenient Operation

The AVENTAGE AV Receivers including the RX-A1010 let you use the Yamaha AV Controller app, a free download from the iTunes App Store to control power on/off and volume, select input and DSP modes and operate other functions from an iPhone, iPad and other devices. An Android app will be available in the coming months.

Front Panel USB Digital Connection for iPod & iPhone

A USB port on the front panel of the RX-A1010 allows convenient connection of an iPod/iPhone, which also charges when connected. Because the digital signal from the iPod/iPhone is transmitted directly to the AV receiver, there is no signal loss or interference, so you enjoy the best possible sound quality. In addition, you can use the receiver's remote control unit to operate the iPod/iPhone music playback functions.

YPAO Sound Optimization With Multi-Point Measurement

YPAO analyzes the room acoustics and adjusts various audio parameters for optimum sound from your listening position, and lets you set up to eight positions. It's like having a professional installer calibrate your system.

SCENE Plus Provides Ultimate Convenience

The SCENE PLUS function simplifies operation by providing one touch power-on along with selection of the desired source and the appropriate DSP programs. SCENE PLUS offers a choice of 12 SCENE selections, four of which can be assigned to the second zone in a multi-zone system. SCENE PLUS can be selected from the front panel, remote control, on-screen GUI and even from the iPhone app.

HDMI CEC for Easy Operation

Another benefit of HDMI is the availability of CEC (Consumer Electronics Control) functionality. When the unit is connected to a CEC compatible TV, it will turn on and off together with the TV, and you can use the TV remote to control the volume. CEC also provides advanced functionality with other components. For example, you can use the receiver's remote unit to control player functions like Skip and Stop.

Input Selection in HDMI Standby Through Mode

When the AV receiver is in HDMI Standby Through mode, the input source (Blu-ray Disc player, game console, etc.) for viewing on the monitor can be changed via the remote control. There's no need to turn on the AV receiver in order to switch sources.

Advanced On-Screen GUI

Yamaha's latest Graphical User Interface (GUI) has a high resolution display with clear, easy-to-use menus and also includes a selectable Status Bar that shows input source, volume level, DSP mode and audio format. The GUI provides a choice of six languages: English, French, German, Japanese, Russian and Spanish, and can be displayed over both normal and 3D pictures.

Intelligent Amp Design

Intelligent Amp Assign automatically assigns amplifier channels to certain speakers, depending on what functions are selected. For example, in a 7.1-channel system, when Zone 2 is off, all 7.1 channels will be used in the Main Zone. However, when Zone 2 is on, power to the two Surround Back channels will be directed to the two speakers in Zone 2, and the Main Zone will receive 5.1 channels of power. Similarly, when CINEMA DSP 3D is on, the two Front Presence speakers will be powered and not the two Surround Back speakers. When CINEMA DSP 3D is off, this situation is reversed. Thanks to Intelligent Amp Assign, there's no need to switch the speaker cables on the rear of the receiver -- it's just one more this receiver makes your life a little easier.

HD Audio With CINEMA DSP 3D and Virtual Presence Speaker

CINEMA DSP 3D provides a wide, high and dense sound field. HD Audio format decoding lets you enjoy HD Audio sources. Virtual Presence Speaker delivers 3-dimensional sound without actual use of presence speakers. The actually measured sound field data contain the information of the height of the sound images. CINEMA DSP 3D mode achieves the reproduction of the accurate height of the sound images so that it creates the accurate and intensive stereoscopic sound fields in a listening room.

Compressed Music Enhancer

When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha's Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.

Adaptive DRC (Dynamic Range Control)

Adaptive DRC automatically adjusts the dynamic range of the sound according to the volume level. This ensures that you hear clear dialogue and vocals, and all sound effects at comfortable levels. There is no need to adjust the volume level as you listen; everything from whispers to big explosions will be heard clearly and comfortably at the same volume setting. It also tones down loud TV commercials, and is ideal for low-volume, late-night listening, when you do not want to disturb others.

Versatile Zone Control

• Zone 2 on/off and control on front panel
• Zone 2 video assign (Component, S-Video, Composite)
• System Backup / Recovery function
• Multi-channel output in main Zone plus 2-channel HDMI output in a second Zone
• Zone mono, Zone volume, tone controls and balance
• Party mode

Eco-Friendly Design

Yamaha makes their receivers eco-friendly with a low standby power consumption of 0.3 watts (2 watts in HDMI Standby Through mode). The auto power down function lets you save energy by selecting to turn off the power after 4, 8, or 12 hours.

Optional Accessories for Added Convenience

Yamaha optional docks make it easy to enjoy your favorite music from your iPod or iPHone, with or without cables. Choose from the following models:

• yAired Wireless Dock System YID-W10
• Universal Dock for iPod/iPhone YDS-12
• Bluetooth Wireless Audio Receiver YBA-10

Notable Audio Features

• 7-channel powerful surround sound
• 110 W per Channel (8 ohms, 20 Hz-20 kHz, 0.06 % THD, 2 channels driven)
• 120 W per Channel (8 ohms, 1 kHz, 0.9 % THD, 2 channels driven)
• HD Audio format decoding: Dolby TrueHD and DTS-HD Master Audio; Dolby Digital Plus and DTS-HD High Resolution Audio
• Heat sink with anti-vibration and anti-thermal properties
• Rigid chassis with additional bottom frames
• DAC on Pure Ground circuitry
• High speed thermal feedback power amplifier
• Low jitter PLL circuitry helps optimize sound imaging
• Detachable Power Cable for easier installation (also allows cable upgrade)
• Assignable amplifiers for bi-amp connection
• Intelligent assignable amplifiers for Surround Back - Front Presence or Zone 2

Notable Video Features

• 1080p-compatible HDMI: 8 inputs (1 on front) and 2 outputs (simultaneous)
• Supports Deep Color (30/36 bit), x.v.Color, 24Hz Refresh Rate and Auto Lip-Sync compensation
• Multi-cadence (incl. 3-2 pull-down) detection

Notable Advanced Features

• HDMI front panel input for devices such as camcorders and digital cameras
• DLNA 1.5 certified
• HD Radio with iTunes tagging
• SIRIUS Satellite Radio ready
• Flexibly assignable component video and optical/coaxial (except Video Aux) inputs allow a wide range of source components
• iPod/iPhone compatibility with optional YDS-12 Universal Dock
• iPod/iPhone song titles displayed in English and Western European languages on the front panel and on-screen display
• Wireless connection for iPod/iPhone with optional YID-W10
• Dialogue Lift
• Preset remote unit
• Background video feature (for tuner, Net, USB and SIRIUS Satellite Radio)

Notable Surround Realism Features

• Channel expandability with external amplifier (7-channel expandability, bi-amping)
• Adaptive DSP level

Amplifier

Rated Power Output  120 W per channel (1 kHz, 2 channels driven, 8 ohms, 0.9% THD)

110 W per channel (20 Hz - 20 kHz, 2 channels driven, 8 ohms, 0.06% THD)

Dynamic Power  135/165/210/280 W per channel (8/6/4/2 ohms)

No. of Channels  7.2

Audio Processing

Dolby Digital Plus  Yes

Dolby TrueHD  Yes

Dolby Pro Logic IIx  Yes

DTS-HD Master Audio  Yes

DSP  17 modes

THX Surround EX  No

THX Certified  No

Audio D/A Converter  192 kHz / 24-bit (Burr Brown) for all channels

Convenience

AM/FM Tuner  Yes

FM Sensitivity  Not specified by manufacturer

Remote Control  Yes

Input  HDMI x 8 (1 front)

Digital coaxial audio x 3

Digital optical audio (1 front) x 4

Analog audio (1 front) x 10

Multi-channel input (8-channel)

Phono input x 1

Component video x 4

S-Video (1 front) x 5

Composite video (1 front) x 5

7.2-channel pre-out

Output  HDMI (simultaneous) x 2

Digital optical audio x 1

Analog audio x 1

Component video x 1

S-Video x 1

Composite video x 1

Headphone out x 1

Other Ports  12 V trigger output x 1

Remote (IR) in/out x 2

RS-232C x 1

USB x 1

Network port x 1

Dock port (for optional YDS-12, YID-W10 or YBA-10) x 1

Video Input Upscaling  Analog and HDMI upscaling to full HD 1080p

General

Power Requirements  120 to 240 volt

Auto Shutoff  Yes

Power Consumption  0.3 W (standby, IR only)

Dimensions (WxHxD)  17.1 x 7.1 x 17.0" (43.4 x 18.0 x 43.2 cm)

Weight  33.3 lb (15 kg)
