Up to 95W Per Channel at 8 Ohms YPAO Multipoint Sound Optimization 4K Ultra HD Upscaling and Pass-Through Supports Dolby Atmos and DTS:X HDMI with 3D and Audio Return Channel 6 x HDMI-In / 2 x HDMI-Out Built-In Wi-Fi and Bluetooth DLNA and Apple AirPlay Connectivity Front-Panel USB Connectivity On-Screen Display with Cover Art

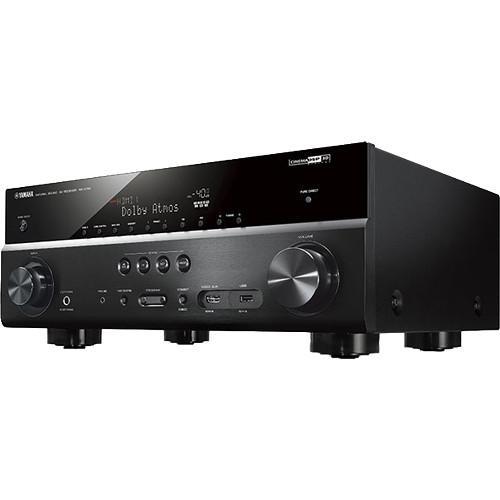

Product Code: RX-V781D Product ID: 27036
Product sold by: samstores.com
Availability: In Stock New
DTS:X and Dolby Atmos
These sound technologies are designed to create a multidimensional sound that fills your room with richness and depth. They allow for music, people, and objects to come alive in enhanced detail and flow in precise choreography all around you, making you feel like you are right in the middle of the story.
Dolby Atmos Speaker Patterns
Multiple placement patterns are available for presence speakers that support Dolby Atmos, creating a sound field that's geared towards your setup. Any layout can be appropriately reproduced, including the three-dimensional space of CINEMA DSP as well as Dolby Atmos.
MusicCast Multiroom Audio
MusicCast makes it easy to bring music to every room in your home wirelessly with playback controlled by a simple app. Start with a MusicCast-capable A/V receiver in your main entertainment room for a wired home theater experience, then add MusicCast speakers, soundbars, or Hi-Fi components in other rooms wirelessly. MusicCast allows you to access your digital music library, streaming music services, Internet radio, Bluetooth sources, your TV sound, and external sources attached to your A/V receiver, such as a Blu-ray Disc or CD player.
Bluetooth
This receiver is equipped with Bluetooth functionality to let you enjoy easy wireless music playback from smartphones and other compatible devices.
4K, HDR, and BT.2020
The RX-V781 supports the pass-through transmission of 4K video at 60 frames per second. Enjoy the high definition video quality of 4K without degradation, along with HDCP 2.2 copyright protection, a standard for 4K video transmission. It also supports the wider color gamut of BT.2020 pass-through.
HDMI with 3D and Audio Support
This receiver supports 3D video signals. Additionally, the Audio Return Channel function enables audio to be sent and received via the same HDMI cable, so you can hear the sound from the TV with a single HDMI cable.
HDMI CEC
Another benefit of HDMI is the availability of CEC functionality. When the unit is connected to a CEC-compatible TV, it will turn on and off together with the TV and you can use the TV remote to control the volume. CEC also provides advanced functionality with other components. For example, you can use the receiver's remote to control player functions like skip and stop.
Wi-Fi Compatible
Built-in Wi-Fi allows for a connection with your wireless router, simplifying system connections for enjoying networked audio from your Windows computer, NAS, and music streaming services. If a Wi-Fi router is not available, the Wireless Direct feature not only allows you to stream music directly from your smartphone or tablet via the AV Controller App, AirPlay, and more, but also allows for control of the receiver.
AirPlay
This receiver supports AirPlay, which means it can accept wireless music streaming from an iPod, iPhone, or iPad, as well as from iTunes on a Mac or Windows computer. This makes it easy to enjoy music from your mobile device or computer through your home theater system. You can view metadata such as song title, artist name, and album art on the receiver's on-screen display.
Spotify Connect
With the Spotify app on your smartphone, you have instant access to millions of songs. Now you can stream those songs to the RX-V781 by using Spotify Connect. Just hit play to start streaming music. When you listen to Spotify outside on your smartphone or tablet and come inside, the song immediately streams to your Yamaha A/V receiver, preventing interruptions to your music playback. You can also personalize playlists and receive phone calls while listening to music on Spotify. The Spotify app and a premium account are required.
AV Controller App
This receiver lets you use the Yamaha AV Controller App that is downloadable from iTunes, Google Play, or the Amazon Appstore to control the power, volume, input selections, DSP modes, and more from an iPhone or Android smartphone or tablet. Customize the interface by hiding unused icons and renaming functions. It includes 23 different languages.
DSP Adjustment
This receiver is equipped with a variety of sound programs that utilize DSP technologies. These sound programs allow you to easily create sound fields like actual movie theaters or concert halls. It is now possible to use the AV Controller App to adjust the DSP parameters of your favorite movie or music album.
Codec Support
This receiver is compatible with many audio formats such as Dolby True HD and DTS-HD Master Audio. It is also compatible with high-resolution audio codecs such as DSD, AIFF, FLAC, WAV, and Apple Lossless. You can enjoy these various high-resolution audio codecs from the USB input on the front panel or from network connected devices.
Compressed Music Enhancer
When music is encoded into a digitally compressed format like MP3, the frequency response suffers. The Compressed Music Enhancer employs digital signal processing using algorithms to restore what was lost, so the music always sounds the way it should.
Gapless Playback
Many live and classical albums have no gaps in the music. Gapless playback ensures that there are no pauses between audio files, providing playback with no interruptions.
Phono Input
Enjoy music from your vinyl collection through the phono input terminals.
YPAO - R.S.C. with Multipoint Measurement
YPAO - Reflected Sound Control analyzes room acoustics and measures various speaker characteristics, then calibrates audio parameters to achieve optimal sound. It employs Reflected Sound Control to correct early reflections for studio-quality sound. It also provides DSP Effect Normalization, which varies the CINEMA DSP parameters according to the reflected sounds. With multipoint measurement, you can measure up to eight locations, ensuring each seat is acoustically optimized during playback.
YPAO Volume
Human ears have less sensitivity to high and low frequencies, especially at lower volumes. YPAO Volume applies loudness EQ correction to automatically adjust high and low frequency levels as volume changes. Using the YPAO measurement results, EQ correction is optimized to your system settings and listening environment.
Rich Bass Reproduction
This low-range enhancement technology delivers richer bass than you would expect from smaller-sized speakers while maintaining localization and sound balance even with compact front speakers. When a subwoofer is used, this feature improves the volume of the entire low range of the speaker system; not only the front speakers, but also enhancing the bass from the subwoofer.
Total Purity
The Total Purity Concept encompasses high-drive amp technology, high-purity pre-amplification, anti-vibration technology, and independent power supplies. This model has discrete power amplifiers that help minimize distortion. They also adopt independent power supplies, allowing dedicated power supplies for the analog and digital circuitry to prevent digital noise from affecting analog circuitry. The anti-vibration heat sinks are designed to suppress vibration from transistors and sound pressure. Independent power supplies for the DACs are designed to further eliminate noise.
Discrete Amp Configuration
This receiver was designed with a focus on achieving high sound clarity. It employs a discrete amp configuration and a low-jitter PLL circuit, which contribute to its audio performance.
SCENE for One-Touch Start
Pressing a SCENE button powers on the receiver and selects the input source and DSP mode. You can reset the buttons for different sources by selecting a source and DSP mode, then pressing a SCENE button for more than three seconds
Virtual Presence Speaker and Virtual Surround Back Speaker
With the power of CINEMA DSP 3D, the Virtual Presence Speaker function is designed to make full use of center and surround speakers to create audible information from where presence (height) speakers are normally installed. In addition, this model also features a Virtual Surround Back Speaker function. Even without using surround back speakers, you can experience more natural, lifelike sound from behind you without physical speakers being installed in the surround back area of the listening environment.
Virtual Surround Sound
Even when it is impossible to install surround speakers behind the listening position, you can enjoy virtual 5-channel surround sound with all of the speakers placed in the front of the room.
Subwoofer Trim Control
The Subwoofer Trim Control enhances the low frequencies by avoiding overlap with the front speaker output. This will result in a cleaner, more focused soundstage while providing a seamless frequency response. When subwoofer frequency overlap occurs in conventional systems, the overall sound is "pushed" toward the subwoofer. Subwoofer Trim Control takes care of this by separating the low subwoofer frequencies cleanly, thus stabilizing the front stage while providing a well-balanced, enhanced bass sound
Intelligent Amp Assign
Intelligent Amp Assign automatically assigns amplifier channels to certain speakers, depending on what speaker layout is selected. For example, in a 7.1-channel system, when Zone 2 is turned off, all 7.1-channels will be used in the Main Zone. However, when Zone 2 is powered on, the power to the two surround back channels will automatically be redirected to the two speakers in Zone 2 and the Main Zone will receive 5.1-channels of power. Similarly, when CINEMA DSP 3D is on, the two Front Presence speakers will be powered and not the two surround back speakers. When CINEMA DSP 3D is off, this situation is reversed.
Advanced Graphical User Interface
The graphical user interface has a high-resolution display with clear, easy-to-use menus and also includes a selectable status bar that shows input source, volume level, DSP mode, and audio format. The GUI provides a choice of eight languages: English, French, German, Spanish, Italian, Russian, Japanese, and Chinese, and can be displayed over both normal and 3D pictures.
AV SETUP GUIDE App
The AV SETUP GUIDE app is designed to make it easier to perform the setup process with the receiver. This app assists you with cable connections between the receiver and source devices. Additionally, it guides you through various settings such as speaker connections, TV and source device connections, and power amplifier assignments. System illustrations and actual receiver images help you understand how to make the connections between devices. It is available in multiple languages and is designed for iOS and Android tablets.
Easy Setup
Use your smartphone or tablet together with the MusicCast app to operate the receiver and change settings quickly and easily. The app also functions as a remote control for all your MusicCast devices.
Audio Features
Video Features
Advanced Features
Network Features
This receiver provides a variety of network functions that enable you to access more sources and enhance operation. You can connect the receiver to your home network or Internet to enjoy Internet radio, Spotify, Pandora, or music stored on a NAS and home Windows computer. The AV Controller App, available from iTunes or Google Play, lets you control various functions from your iPod, iPhone, iPad, or Android phones/tablets.Surround Realism
Versatile Zone Control
Eco-Friendly Design
Amplifier
Power Output 95 W per channel at 8 Ohms, 20 Hz to 20 kHz, 0.06% THD, 2-channel driven
110 W per channel at 8 Ohms, 1 kHz, 0.9% THD, 2-channel driven
160 W per channel at 8 Ohms, 1 kHz, 10% THD, 1-channel driven
Dynamic Power per Channel 130 W at 8 Ohms
170 W at 6 Ohms
195 W at 4 Ohms
240 W at 2 Ohms
No. of Channels 7.2
Discrete Amplification 192 kHz/24 bit Burr-Brown DACs for all channels
Video
4K Support 4K UHD upscaling and pass-through
HDMI 3D Video Format 3D pass-through
ARC (Audio Return Channel) Yes
Deep Color / x.v. Color Support Yes, with 24 Hz refresh rate and auto lip-sync
HDMI CEC Compliant Yes
Audio Processing
Dolby Dolby Atmos
Dolby TrueHD
Dolby Digital Plus
Dolby Pro Logic IIx
DTS DTS:X
DTS-HD Master Audio
DSP Programs 17
Audio Delay 0 to 500 ms
Convenience
AM/FM Tuner Yes/Yes
Tuning Range FM: 87.5 to 107.9 MHz
AM: 530 to 1710 kHz
Connectivity
Analog Inputs 1 x AM antenna
1 x FM antenna
4 x RCA L/R
1 x RCA L/R phono
2 x Component video
4 x RCA composite video
Digital Inputs 6 x HDMI (3 with HDCP 2.2)
2 x TOSLINK optical
2 x Digital coaxial
Analog Outputs 1 x Component video
1 x RCA composite video
1 x Headphone
9 x Speaker jacks (two assignable for bi-amp or Zone 2)
2 x Subwoofer ports
1 x 7-Channel pre-out
Digital Outputs 2 x HDMI with HDCP 2.2
Other Ports 1 x USB front input
1 x Ethernet jack
1 x Wireless antenna
1 x 12 V / 0.1 A trigger out
1 x IR in
1 x IR out
Bi-Amp Capability Yes
Wireless Bluetooth, Wi-Fi, AirPlay, DLNA
General
Power Requirements 110-220 VOLTS 50-60 Hz
Standby Power Consumption HDMI Control and Standby Through Mode Off: 0.1 W
HDMI Standby Through Mode On: 1.1 W
Network Standby On: 2.1 W (wired)
Dimensions (W x H x D) 17.1 x 6.8 x 14.9" (43.5 x 17.1 x 37.8 cm) with antenna down
17.1 x 9.3 x 14.9" (43.5 x 23.5 x 32.7 cm) with antenna up
Weight 23.4 lb (10.6 kg)
Packaging Info
Package Weight 29.05 lb
Box Dimensions (LxWxH) 20.63 x 17.874 x 10.472"
