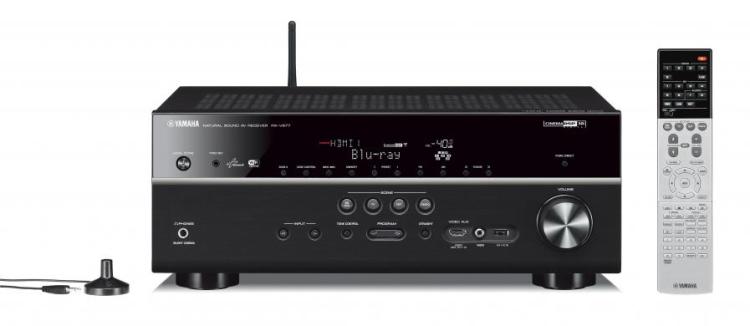

YAMAHA RX-V677D 7.2 CHANNEL WI-FI NETWORK AV RECEIVER 110-220 VOLTS

Amplifier Section             Channels             7.2

Rated Output Power (1kHz, 2-ch. driven)              105W (8 Ohms, 0.9% THD)

Rated Output Power (20Hz - 20kHz, 2-ch. driven)              90W (8 Ohms, 0.09% THD)

Dynamic Power per Channel (8/6/4/2 ohms)       125 / 165 / 190 / 235 W

Surround Sound Processing        CINEMA DSP      Yes (3D)

DSP Programs    17

Virtual Presence Speaker             Yes

SILENT CINEMA                Yes

Virtual CINEMA FRONT Yes

Extra Bass            Yes

Dialog Level Adjustment               Yes

Dolby TrueHD    Yes

Dialogue Lift       Yes (no presence speakers required)

Dolby Digital Plus              Yes

DTS-HD Master Audio    Yes

Dolby Pro Logic IIx           Yes

Audio Features                 Compressed Music Enhancer     Yes

YPAO Sound Optimization            Yes (R.S.C.)

Adaptive DRC (Dynamic Range Control)                 Yes

Initial Volume & Maximum Volume Setting          Yes

Pure Direct         Yes (with video on mode)

Audio Delay        Yes (0 - 500ms)

192kHz / 24-bit DACs for all channels       Yes (Burr-Brown)

YPAO Volume    Yes

Bi-amp capability              Yes

Video Features                 4K Ultra HD pass-through             Yes

HDMI 3D pass-through Yes

HDMI Audio Return Channel       Yes

Deep Color / x.v.Color / 24Hz Refresh Rate / Auto Lip-Sync           Yes

4K Ultra HD Pass-Through and Upscaling               Yes (latest HDMI version for 4K Ultra HD 50 / 60p)

HDMI Upscaling                Yes (analog to HDMI / HDMI to HDMI)

Extensive Connection    HDMI Input/Output        6 (1 front) / 1

HDMI CEC            Yes (SCENE, device control)

USB Input            iPod® / iPhone® / iPad®, USB memory, portable audio player

Front AV Input HDMI (MHL support) / USB / Composite

Network Port    Yes

Digital Audio Input/Output: Optical          2 / 0

Digital Audio Input/Output: Coaxial         2 / 0

Analog Audio Input/Output        5 / 1

Component Video Input/Output              2 / 1

Composite Video Input/Output                5 (1 front) / 2

Headphone Output        1

Preout Subwoofer (2 x mono)

Connectivity       DC Out Yes

AirPlay Yes

Wi-Fi      Yes (with Wireless Direct)

MHL Support     Yes

Tuner Section    FM/AM Tuner   Yes

User Interface   On-Screen Display           Graphical user interface

SCENE   SCENE (4 sets)

Remote Control Unit      Yes

App Control        Yes (iPhone / iPad / Android™ phone / tablet)

Web Browser Control    Yes

Zone Control      Zone 2 Audio Output      Line output

Powered Zone Zone 2

+12V Trigger Output       1

Remote (IR) Input/Output           1 / 1

General                Standby Power Consumption (IR only)   ≤ 0.15W

Auto Power Standby      Yes

ECO mode           Yes

Dimensions (W x H x D)                 17-1/8 x 6-3/4 x 14-3/8" (with antenna: 17-1/8 x 9-1/4 x 14-7/8")

Weight                 22.1lbs
