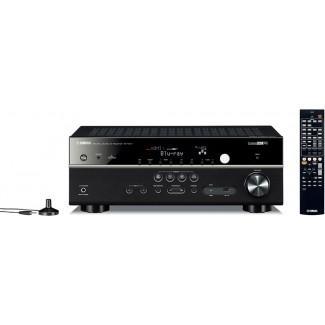

YAMAHA RX-V477 110-240 VOLTS RECEIVER 110 - 220 - 240 VOLTS AMPLIFIER

Back of receiver has a switch for 110/120 volts and 220/240 volts. Please select the voltage before using

5-channel powerful surround sound

115 W per channel (8 ohms, 1 kHz, 0.9% THD, 1-ch driven)

24-bit, Apple® 96 kHz / 24-bit Payback/ FLAC, WAV 192 kHz

80 W per channel (8 ohms, 20 Hz-20 kHz, 0.09% THD, 2-ch driven)

Extra Bass

No Interruption Gapless Playback

HDMI® (6 in / 1 out) Extremely High Resolution Images with 4K Ultra HD Pass-Through

HTC Connect™

USB digital connection for iPod® and iPhone® in the Front Panel

AirPlay® and Other Music streaming service & AV Controller App

YPAO™ sound optimization

Virtual CINEMA FRONT providing virtual surround sound including 5 speakers in front

Multilingual color OSD for improved visibility (English, German, French, Spanish, Russian, Italian, Japanese and Chinese)

20% less power consumption with the ECO mode operation

Yamaha RX-V477 110-240 Volts Receiver 110 - 220 - 240 Volts Amplifier

Amplifier Section

Channel: 5.1

Rated Output Power (1kHz, 1ch driven): 115 W (8 ohms, 0.9% THD)

Rated Output Power (1kHz, 2ch driven): 95 W (8 ohms, 0.9% THD)

Rated Output Power (20Hz-20kHz, 2ch driven): 80 W (8 ohms, 0.09% THD)

Dynamic Power per Channel (8/6/4/2 ohms): 110 / 130 / 160 / 180 W

Surround Sound Processing

CINEMA DSP: Yes (3D)

DSP Programs: 17

Virtual Presence Speaker: Yes

SILENT CINEMA: Yes

Virtual CINEMA FRONT: Yes

Extra Bass: Yes

Dolby TrueHD: Yes

Dolby Digital Plus: Yes

DTS-HD Master Audio: Yes

Audio Features

Compressed Music Enhancer: Yes

YPAO sound optimization: Yes

Adaptive DRC (Dynamic Range Control): Yes

Initial Volume & Maximum Volume Setting: Yes

Audio Delay: Yes (0-500 ms)

192kHz/24-bit DACs for all channels: Yes (Burr-Brown)

Video Features

4K Ultra HD pass-through: Yes (60p / YCbCr 4:2:0)

HDMI 3D pass-through: Yes

HDMI Audio Return Channel: Yes

Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync: Yes

Extensive Connection

HDMI Input/Output: 6 / 1

HDMI CEC: Yes

USB Input: iPod® / iPhone®, USB memory, portable audio player

Front AV Input: USB / Mini-jack

Network Port: Yes

Digital Audio Input/Output: Optical: 1 / 0

Digital Audio Input/Output: Coaxial: 2 / 0

Analog Audio Input/Output: 4 (1 front) / 1

Component Video Input/Output: 2 / 1

Composite Video Input/Output: 4 / 1

Preout: Subwoofer

Headphone Output: 1

Connectivity

DC Out: Yes

AirPlay: Yes

Tuner Section

FM/AM Tuner: Yes

User Interface

On-screen display: Yes (color OSD)

SCENE: SCENE (4 sets)

Remote Control Unit: Yes

App Control: Yes (iPhone / iPad / Android™ phone / tablet)

General

Standby Power Consumption (IR only): ≤0.1 W

Auto Power Standby: Yes

ECO mode: Yes

Dimensions (W x H x D): 17-1/8” x 6-3/8” x 12-3/8”

Weight: 17.6 lbs.
