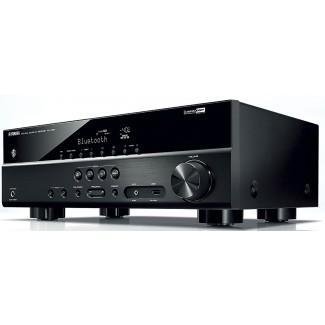

YAMAHA RX-V383 110-240 VOLTS 50 / 60 HZ RECEIVER & AMPLIFIER

Yamaha RX-V383 110-220 Volts 50 / 60 hz Receiver & Amplifier

The RX-V383 receiver has 4K Ultra HD Pass-through for Super High Resolution Images, all of the components feature the same quality design and high-tech options for your home entertainment system. This Yamaha RX-V383 Reciever would be an incredible addition to your entertainment system.

Back of receiver has a switch for 110/120 volts and 220/240 volts. Please select the voltage before using

5.1 channel powerful surround sound

145 W per channel (8 ohms 0.09% THD)

Extra Bass

No Interruption Gapless Playback

HDR Support

HDMI® (4 in / 1 out) Extremely High Resolution Images with 4K Ultra HD Pass-Through

YPAO™ sound optimization

20% less power consumption with the ECO mode operation

WiFi Support: No

Yamaha RX-V383 110-240 Volts Receiver 110 - 220 - 240 Volts Amplifier

Amplifier Section

Channel               5.1

Rated Output Power (1kHz, 2ch driven) 115 W (8 ohms, 0.9% THD)

Rated Output Power (20Hz-20kHz, 2ch driven) 80 W (8 ohms, 0.06% THD)

Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) 140 W (8 ohms, 10% THD)

Dynamic Power per Channel (8/6/4/2 ohms)       120 / 140 / 170 / 190 W

Surround Sound Processing

CINEMA DSP: Yes (3D)

Dialog Level Adjustment: Yes

Virtual Presence Speaker: Yes

Virtual Surround Back Speaker: Yes

Dialogue Lift: Yes (no presence speakers required)

SILENT CINEMA / Virtual CINEMA DSP: Yes (Virtual CINEMA FRONT)

Dolby TrueHD: Yes

Dolby Digital Plus: Yes

Dolby Pro Logic II: Yes

DTS-HD Master Audio: Yes

Audio Features

Pure Direct: Yes (with video on mode)

Compressed Music Enhancer: Yes (including for Bluetooth®)

YPAO multi-point measurement: Yes (R.S.C.)

YPAO Volume: Yes

Adaptive DRC (Dynamic Range Control): Yes

Initial Volume & Maximum Volume Setting: Yes

Bi-amp capability: Yes

Video Features

HDR Support: Yes

4K Ultra HD Pass-through and upscaling: Yes (4K 60p 4:4:4)

4K Ultra HD pass-through: Yes

HDMI 3D pass-through: Yes

HDMI Audio Return Channel: Yes

HDMI upscaling: Yes (analog to HDMI, HDMI to HDMI)

Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync: Yes

Extensive Connection

HDMI Input/Output: 4 in / 1 out

HDMI CEC: Yes (SCENE, device control)

Network Port: Yes

Front AV Input: USB / Mini-jack

Digital Audio Input/Output: Optical: 1

Digital Audio Input/Output: Coaxial: 2

Analog Audio Input/Output: 4

Tuner Section

FM/AM Tuner: Yes

General

Auto Power Standby      Yes

ECO mode           Yes

Dimensions (W x H x D) 435mm x 152.4mm x 314.3mm

Weight 7.39kg
