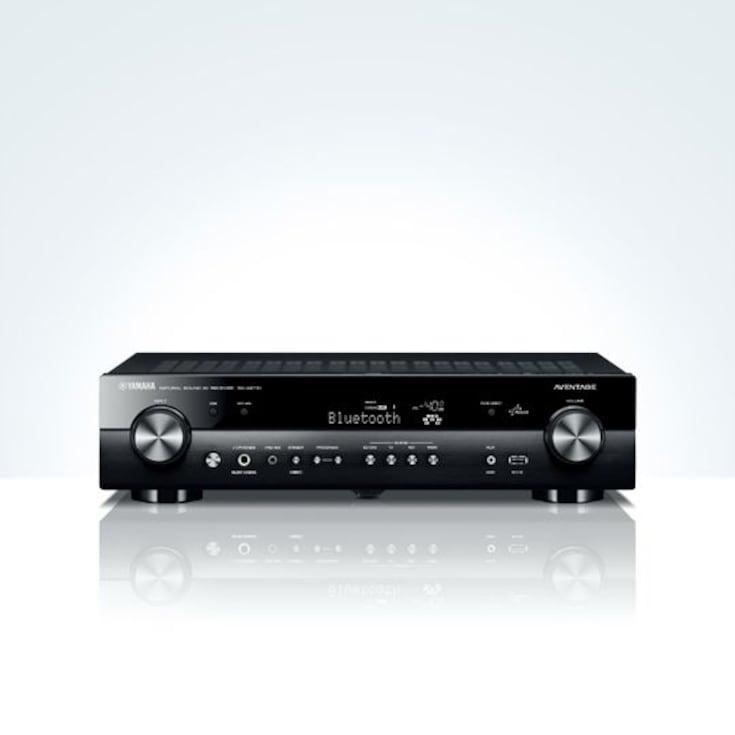

YAMAHA RX-AS710 AMPLIFIER RECEIVER 220-240 VOLTS50/60 HZ NOT FOR USA

The first slim, compact AVENTAGE model, this 7.2-channel Network AV Receiver is designed for high sound quality with Anti-Resonance Technology and a high-grade aluminium front panel. It also features Wi-Fi and Bluetooth(R) Built-In, 4K Ultra HD compatible HDMI with HDCP2.2 and Versatile Zone Control.

• MusicCast for audio enjoyment in every room
• AVENTAGE AV Receivers: Designed to Deliver the Highest Levels of Audio Performance
• Anti Resonance Technology (A.R.T.) Wedge helps to ensure that vibrations do not affect sound quality
• Aluminium Front Panel Offers Visual and Aural Benefits
• 7-channel powerful surround sound
  • 60 W per channel (8 ohms, 20Hz-20kHz, 0.07 % THD, 2 ch driven)
  • 100 W per channel (8 ohms, 1 kHz, 10 % THD, 1 ch driven)
  • 130 W per channel (4 ohms, 1kHz, 0.9% THD, 1ch driven)
• Wi-Fi Built-in and Wireless Direct Compatible for Easy Network
• Bluetooth for wireless music streaming and Compressed Music Enhancer for Bluetooth
• AirPlay, Napster(R)*, Spotify(R)*, Pandora(R)*, JUKE* music streaming service and AV Controller app
• *Music service availability varies by region.
• DSD 2.8MHz/5.6MHz, FLAC/WAV/AIFF 192kHz/24bit, Apple Lossless 96kHz / 24-bit playback
• Gapless playback compatibility allows play without interruption
• 4K60p 4:4:4 Pass through, HDMI (6 in/1 out) with HDCP2.2 (3 in/1 out), 3D and Audio Return Channel
• HDMI input on front panel, USB Digital Connection for iPod and iPhone
• YPAO Reflected Sound Control (R.S.C.) sound optimisation for automatic speaker setup
• YPAO Volume to ensure natural sounds even at low volume
• Virtual Surround Back Speaker for playing 7.1-channel content with a 5.1-channel system
• Extra Bass enriches powerful bass sound even with small speakers
• Advanced GUI on-screen display with (English, German, French, Spanish, Russian, Italian, Japanese and Chinese)
• Multi-zone audio support (Zone2)
• ECO mode operation for about 20% less power consumption

Features

General

• Sound Channels 7.2
• Power Output
  • 1kHz, 1ch driven: 100 W (8ohms, 10% THD)
  • 1kHz, 2ch driven: 70 W (8ohms, 0.9% THD)
  • 20Hz-20kHz, 2ch driven: 60 W (8ohms, 0.07% THD)
• Total Harmonic Distortion 0.07 %
• Frequency Range (Hz) 20 Hz - 20,000 Hz
• Video Compatibility 4K
• 3D Ready Yes
• Atmos Compatible No
• Dolby Digital Yes
• DTS Yes
• Numbers of Zones 2
• Bluetooth Built-in
• User Interface On-screen:GUI
• Additional Information:
  • AVENTAGE AV Receivers: Designed to Deliver the Highest Levels of Audio Performance
  • Wi-Fi Built-in and Wireless Direct Compatible for Easy Network
  • Gapless playback compatibility allows play without interruption
  • 4K60p 4:4:4 Pass through, HDMI (6 in/1 out) with HDCP2.2 (3 in/1 out), 3D and Audio Return Channel
  • HDMI input on front panel, USB Digital Connection for iPod and iPhone
  • YPAO Reflected Sound Control (R.S.C.) sound optimisation for automatic speaker setup
  • YPAO Volume to ensure natural sounds even at low volume
  • Virtual Surround Back Speaker for playing 7.1-channel content with a 5.1-channel system
  • ECO mode operation for about 20% less power consumption

INPUTS/OUTPUTS

• AM/FM: Yes
• Phono Input: Yes
• HDMI Inputs: 6
• HDMI Outputs: 1
• Component Inputs: 2
• Composite Video Inputs: 2
• Composites Audio Inputs (Analog): 2
• Optical Digital Inputs: 2
• Coaxial Digital Input: 2
• Headphone Output: Yes
• Network: Yes
• Musiccast: Compatible Yes
• RS-232: No
• USB: Yes
• Wi-Fi: Yes

DIMENSIONS

• Width: 17.13 inch(es) / 43.5 cm
• Height: 4.37 inch(es) / 11.1 cm
• Depth: 14.84 inch(es) / 37.7 cm
• Weight: 20.28 lb(s) / 9.2 kg
