Up to 100W per Channel at 8 Ohms YPAO Sound Optimization Ultra HD Upscaling and Pass-Through HDMI with 3D and Audio Return Channel 8 x HDMI-In / 2 x HDMI-Out Built-In Wi-Fi and Bluetooth Apple AirPlay Connectivity Front-Panel USB Connectivity Advanced GUI On-Screen Display

Product Code: RX-A860D   Product ID: 27037
Product sold by: samstores.com

$ 894

Availability: In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

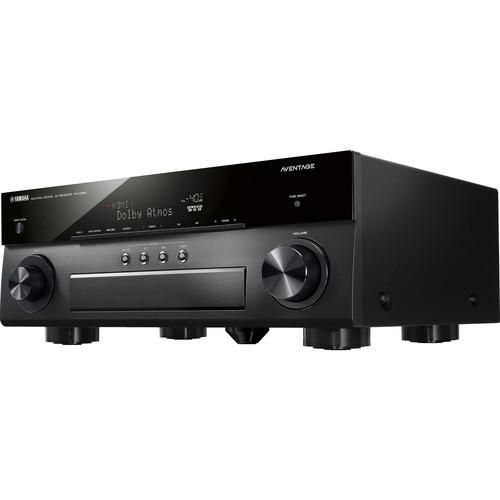

Enjoy immersive multi-channel sound with the Yamaha AVENTAGE RX-A860BL 7.2-Channel Network A/V Receiver. It delivers up to 100W of power per channel at 8 Ohms and features Dolby Atmos and DTS:X compatibility for object-based audio support. Built-in Bluetooth and AirPlay support allows the receiver to wirelessly stream music from compatible sources, such as smartphones and tablets, while Yamaha's Compressed Music Enhancer works behind the scenes to deliver optimized sound quality.

Onboard Wi-Fi and Ethernet connectivity allows the RX-A860BL to access a variety of Internet-based music sources like Spotify, Pandora, Rhapsody, and SiriusXM. It also supports DLNA content sharing when paired with your similarly equipped network-connected devices such as your computer. As an added convenience, you can download the free Yamaha AV Controller app to control the receiver from your Android or iOS devices.

With eight HDMI inputs and two HDMI outputs, this receiver can act as a video switcher for your HD source components. It will pass through 3D and 4K signals and will upscale non-UHD signals to near-4K quality for enhanced viewing of lower-resolution sources when paired with a 4K display. The receiver also has a USB port for accessing media stored on USB flash drives. YPAO sound optimization will calibrate the receiver to your speakers and room setup for a tailored listening experience.

Note: Access to certain Internet-based content may require a subscription to a service.

Audio Features

  • Dolby Atmos and DTS:X support
  • 5th foot with Anti-Resonance Technology Wedge to reduce vibration
  • Aluminum front panel for enhanced audio and aesthetics
  • Pure Direct mode for pure Hi-Fi sound
  • Burr-Brown DirectPath DACs
  • Enhanced quality volume integrated circuit
  • Independent pure power supply
  • PLL circuitry designed for ultra-low jitter helps optimize sound imaging
  • Assignable amplifiers for front speaker bi-amp connection
  • Intelligent assignable amplifiers: Surround back / Front Presence / Zone 2
  • DSD 2.8 / 5.6 MHz audio playback
  • FLAC or WAV 192 kHz / 24-bit audio playback
  • Apple Lossless audio playback
  • Compressed Music Enhancer for Bluetooth
  • Phono input for vinyl playback

Video Features

  • HDMI with support for 4K UHD, 4K/60p (4:4:4), HDCP 2.2 (3 in / 2 out), HDR video, and BT.2020
  • UHD video upscaling from analog and HDMI input
  • Supports Deep Color (30 / 36-bit), x.v.Color, 24 Hz refresh rate, and auto lip sync compensation
  • Motion adaptive and edge adaptive deinterlacing
  • Multicadence (including 3:2 pull-down) detection

Advanced Features

  • MusicCast for audio enjoyment in every room
  • Bluetooth for wireless music streaming (SBC / AAC)
  • Gapless playback compatibility
  • Front-panel connection for USB flash drives
  • Advanced GUI on-screen display with HD graphics
  • YPAO - R.S.C. (Reflected Sound Control) with multipoint measurement for automatic room calibration
  • HDMI front-panel input
  • HDMI input switching while in Standby Through Mode
  • Background video feature for radio, USB, Bluetooth, audio, network, and auxiliary inputs
  • SCENE buttons with direct power on (BD/DVD, TV, Net, and Radio)
  • HDMI CEC to power up compatible TVs and Blu-ray players

Network Features

  • Wi-Fi built in (802.11b/g/n)
  • Easy Wi-Fi setup: iOS Wi-Fi setting sharing, WPS, etc.
  • AirPlay allows music streaming from Windows and Mac computers and iOS devices
  • AV Controller App for operating various functions via iOS or Android smartphones and tablets
  • Access To:
    • Internet radio (vTuner: MP3 and WMA streams)
    • Streaming services: Spotify, Pandora, Rhapsody, and SiriusXM Internet Radio
    • Music files on your computer or NAS: WAV, MP3, WMA, AAC, FLAC, Apple Lossless, AIFF, DSD
  • DLNA 1.5 certified

Surround Realism

  • HD Audio decoding with CINEMA DSP 3D (17 DSP programs)
  • Compressed Music Enhancer with CINEMA DSP
  • Dialogue Lift ensures that dialogue comes from the center of the screen
  • Dialogue Level Adjustment for proper sound balance with dialogue and vocals
  • Virtual Presence Speaker function for CINEMA DSP 3D surround without Front Presence speakers
  • Virtual CINEMA FRONT provides surround sound without rear speakers
  • Virtual Surround Back Speaker for playing 7.1-channel content with a 5.1-channel system
  • YPAO Volume to ensure natural sounds even at low volume
  • Extra Bass enriches bass sound even with small speakers
  • SILENT CINEMA to enjoy surround sound with headphones
  • Two subwoofer outputs that can work simultaneously

Versatile Zone Control

  • Pre-out terminal for Zone 2 with volume control
  • Versatile Zone 2 control: power, volume, input
  • Party Mode
  • Remote control input and output
  • Programmable +12V trigger output

Eco-Friendly Design

  • ECO Mode operation for roughly 20% less power consumption compared to when ECO Mode is off (measured by Yamaha)
  • Low standby power consumption of 0.1W
  • Auto Power Standby function with variable time setting
  • Enhanced network and HDMI standby power consumption
  • Main Unit

    Output Power   100 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.06% THD, 2-channel driven

    110 W per channel @ 8 Ohms, 1 kHz, 0.9% THD, 2-channel driven

    160 W per channel @ 8 Ohms, 1 kHz, 10% THD, 1-channel driven

    Channels             7.2

    DAC Type            Burr-Brown DirectPath DACs

    Tuner    AM / FM

    DSP        17 DSP programs including Cinema DSP 3D

    Object-Based Audio Support      Dolby Atmos, DTS:X


    Upscaling             Yes, to near-4K

    Pass-Through    3D, 4K/60p (4:4:4), HDCP 2.2 (3 in / 2 out), HDR, and BT.2020

    Deep Color / x.v. Color Support                 Yes

    HDCP Version    2.2


    Bluetooth            Yes (SBC / AAC)

    Wi-Fi      Yes (802.11b/g/n)

    AirPlay Yes

    DLNA Certified Yes

    Inputs   8 x HDMI (1 front)

    2 x Optical TOSLINK

    2 x Digital coaxial

    2 x Component video

    5 x Composite video

    1 x RCA phono

    5 x Stereo RCA audio

    1 x USB

    Outputs               2 x HDMI

    1 x Component video

    1 x Composite video

    2 x Subwoofer pre-out

    1 x 7-channel pre-out

    1 x Zone 2 pre-out

    1 x Headphone

    Other Ports        1 x YPAO microphone

    1 x FM tuner antenna

    1 x AM tuner antenna

    1 x Wireless antenna

    1 x Ethernet

    1 x Remote in

    1 x Remote out

    1 x +12 V / 0.1 A trigger out

    1 x RS-232C

    1 x AC power cord

    Speaker Connectors       9 x Binding post pairs

    HDMI CEC            Yes

    Audio Return Channel (ARC)       Yes


    On-Screen Display           Yes

    Standby Power Consumption     HDMI Control Off, Standby Through Mode Off: 0.1 W

    HDMI Standby Through Mode On: 1.1 W

    Wired Network Standby On: 2.1 W

    Dimensions (W x H x D)                 With Antenna Down: 17.1 x 6.8 x 15" (43.5 x 17.1 x 38.1 cm)

    With Antenna Up: 17.1 x 9.3 x 15" (43.5 x 23.5 x 38.1 cm)

    Weight                 23.4 lb (10.6 kg)

    Packaging Info

    Package Weight                28.0 lb

    Box Dimensions (LxWxH)             20.0 x 17.0 x 10.0"
