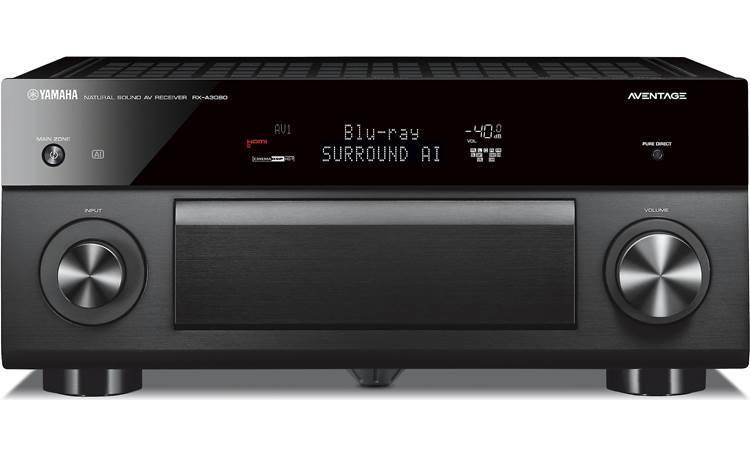

YAMAHA RX-A3080 9 CHANNEL AMPLIFIER RECEIVER 220V 240 VOLT 50 HZ 60HZ NOT FOR USA

9.2-channel AVENTAGE model featuring the latest, most advanced Surround:AI, highest quality DACs, and ultimate quality XLR terminals.

• 9-channel powerful surround sound
• --- 150 W per channel (8 ohms, 20 Hz-20 kHz, 0.06% THD, 2-ch driven)
• --- 230 W per channel (4 ohms, 1 kHz, 0.9% THD, 1-ch driven)
• --- 230 W per channel (8 ohms, 1 kHz, 10% THD, 1-ch driven)
• Surround:AI automatically optimises the surround effect in real time
• Dolby Atmos® and DTS:X™ with CINEMA DSP HD3
• ESS SABRE PRO ES9026PRO Ultra DAC and SABRE ES9007S DAC
• Ability to add wireless surround speaker/s* (*MusicCast 20 or MusicCast 50)
• Amazon Alexa and Google Assistant voice control compatibility* (*Availability varies by region)
• Highly rigid construction including Anti Resonance Technology (A.R.T.) Wedge
• High quality parts for optimum performance
• YPAO™-R.S.C. (with 3D, multi-point measurement and 64-bit high precision EQ)
• XLR input terminal
• MusicCast multi-room technology
• Music streaming services built-in
• HDMI® (7 in / 3 out) with Dolby Vision™ and Hybrid Log-Gamma
• Phono input for vinyl playback

Detailed Specifications:

 RX-A3080

 RX-A3080

AV Receiver

Amplifier SectionChannel9.2

Rated Output Power (1kHz, 1ch driven)230 W (4 ohms, 0.9% THD)

Rated Output Power (20Hz-20kHz, 2ch driven)150 W (8 ohms, 0.06% THD)

Maximum Effective Output Power (1kHz, 1ch driven) (JEITA)230 W (8 ohms, 10% THD)

Dynamic Power per Channel (8/6/4/2 ohms)175 / 220 / 295 / 410 W

Surround Sound ProcessingSurround:AIYes

CINEMA DSPYes (HD3)

DSP Programs24

Dialog Level AdjustmentYes

Virtual Presence SpeakerYes

Virtual Surround Back SpeakerYes

Dialogue LiftYes (no presence speakers required)

SILENT CINEMA / Virtual CINEMA DSPYes (Virtual CINEMA FRONT)

Dolby AtmosYes

Dolby TrueHDYes

Dolby Digital PlusYes

Dolby SurroundYes

DTS:XYes

DTS-HD Master AudioYes

Audio FeaturesFile FormatMP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz

Pure DirectYes (with video on mode)

Compressed Music EnhancerYes

High-resolution Music EnhancerYes

YPAO multi-point measurementYes with R.S.C. (Reflected Sound Control) , 3D, 64-bit High Precision EQ Calculation and Angle Measurement

YPAO VolumeYes

Adaptive DRC (Dynamic Range Control)Yes

Initial Volume & Maximum Volume SettingYes

A.R.T. WedgeYes

Bi-amp capabilityYes

Audio DelayYes (0-500 ms)

DA ConverterESS 384 kHz / 32-bit SABRE PRO Premier DAC™ ES9026PRO (for main 7 channels)

Video Features4K Ultra HD Pass-through and upscalingYes (4K / 60p, 4:4:4)

HDMI 3D passthroughYes

HDMI eARCYes (via firmware update)

HDMI Audio Return ChannelYes

HDMI Up-scalingYes (Analogue to HDMI® / HDMI to HDMI)

Video adjustmentYes

Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-SyncYes

ConnectivityMusicCast SurroundYes

HDMI Input/Output7 / 3 (HDCP2.3, HDR10 / Dolby Vision / HLG and BT.2020 compatible)

HDMI CECYes (SCENE, Device Control)

USB InputUSB Memory, Portable Audio Player

Network PortYes

Wi-FiYes (2.4 / 5 GHz)

AirPlayYes (AirPlay 2 via firmware update)

BluetoothYes (SBC / AAC)

Front AV InputUSB / Analogue Audio

Digital Audio Input/Output: Optical3 / 0

Digital Audio Input/Output: Coaxial3 / 0

Analog Audio Input/Output10 (front 1) / 0

Phono InputYes

XLR TerminalYes

Component Video Input/Output2 / 0

Composite Video Input/Output4 / 0

Preout11.2-ch

Headphone Output1

Tuner SectionFM/AM TunerYes (FM only)

DAB TunerYes (Availability varies by region.)

User InterfaceOn-screen displayGraphical User Interface

SCENESCENE PLUS (8 sets)

App ControlYes (iPhone / iPad / Android phone / tablet)

Web Browser ControlYes

Remote Control UnitYes (Full LED Backlight)

Zone ControlZone 2 Audio OutputPreout / HDMI

Zone 3 Audio OutputPreout

Zone 4 Audio OutputHDMI

Powered ZoneZone 2 / 3

Zone Video OutputHDMI / Component / Composite

Zone HDMIYes (Advanced HDMI Zone Switching)

Zone B OutputHDMI

Zone GUIYes

RS-232C InterfaceYes

+12V Trigger Output2

Remote (IR) Input/Output1 / 1

Party ModeYes

GeneralStandby Power Consumption (IR only)≤0.1W

Auto Power StandbyYes

ECO modeYes

Dimensions (W x H x D)435 x 192 x 474 mm (with antenna up: 435 x 269 x 474 mm); 17-1/8” x 7-1/2” x 18-5/8” (with antenna up: 17-1/8” x 10-5/8” x 18-5/8”)

Weight19.6 kg; 43.2 lbs.
