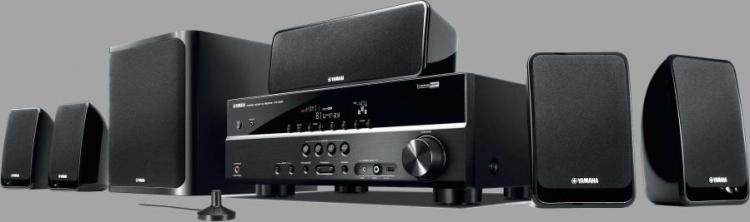

YAMAHA BLU-RAY HOME THEATER SYSTEM BD-S473 REGION FREE WITH YAMAHA HOME THEATER RECEIVER AND SPEAKERS 110 - 220 240 VOLTS

Yamaha BD-S473 Region Free Blu-ray DVD Player Specifications:

Video/Audio Performance

• Media Compatibility:
  • DLNA, USB, BD-Video, BD-R/RE (BD-MV), DVD-Video, DVD-R/-RW (DVD-Video, DVD-VR), DVD+R/+RW (Video and VR mode), CD-DA, CD-R/-RW
• File Compatibility:
  • Video - MKV with H.264, MPEG PS, MPEG TS, MPEG-4, VOB, AVI, ASF, WMV and AVCHD.
  • Audio - MP3, WMA, AAC, WAV and FLAC. Photo: JPEG, GIF and PNG.
• Connectivity
  • HDMI Output 1 (480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 1080p@24 Hz)
• USB Port (Front Panel / Rear Panel) 1 / 1
• Ethernet 1

General

• Standby Power Consumption < 0.5W
• Dimensions (W x H x D) 17-1/8” x 2” x 8”
• Weight 4.4 lbs.

• Yamaha YHT-299 Home Theater Package AV Receiver Specifications

  Amplifier Section

  • Channel: 5.1
  • Rated Output Power (1kHz, 1ch driven) 100W (6ohms, 0.9% THD)
  • Rated Output Power (20Hz-20kHz, 2ch driven) 70W (6ohms, 0.09% THD)
  • Maximum Effective Output Power (1kHz, 1ch driven) (JEITA): 135W (6ohms, 10% THD)
  • Dynamic Power per Channel (8/6/4/2 ohms)-/110/130/150W

  Surround Sound Processing

  • CINEMA DSP :Yes
  • DSP Programs: 17
  • SILENT CINEMA / Virtual CINEMA DSP :Yes
  • Dolby TrueHD :Yes
  • Dolby Digital Plus :Yes
  • DTS-HD Master Audio :Yes

  Audio Features

  • Compressed Music Enhancer :Yes
  • YPAO sound optimization :Yes
  • Adaptive DRC (Dynamic Range Control) :Yes
  • Initial Volume & Maximum Volume Setting :Yes
  • Audio Delay :Yes (0-250 ms)
  • 192kHz/24-bit DACs for all channels :Yes (Burr-Brown)

  Video Features

  • 4K Ultra HD Pass-through :Yes
  • HDMI 3D passthrough :Yes
  • HDMI Audio Return Channel :Yes
  • Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync :Yes

  Connectivity

  • HDMI Input/Output 4 / 1
  • HDMI CEC :Yes
  • USB Input iPod/iPhone, USB Memory, Portable Audio Player
  • Front AV Input USB/Mini Jack/Composite
  • Digital Audio Input/Output: Optical 2 / 0
  • Digital Audio Input/Output: Coaxial 2 / 0
  • Analog Audio Input/Output 4 (front 1) / 2
  • Component Video Input/Output 2 / 1
  • Composite Video Input/Output 4 (front 1) / 1
  • Preout SW
  • Headphone Output 1

  Tuner Section

  • FM/AM Tuner :Yes

  User Interface

  • On-screen display :Yes
  • SCENE SCENE (4 sets)
  • Remote Control Unit :Yes

  General

  • Standby Power Consumption (IR only) ≤0.3W
  • Auto Power Standby :Yes
  • ECO mode :Yes
  • Dimensions (W x H x D) 435 x 151 x 315 mm; 17-1/8” x 6” x 12-3/8”
  • Weight 7.4 kg; 16.3 lbs.



  Yamaha YHT-299 Home Theater Package Speaker Specifications

  Channel

  • Channel: 5.1

  Speaker System

  • System Frequency Response: 30 Hz–25 kHz
  • Impedance: 6 ohms (without subwoofer)

  Front Speaker

  • Type: Full-range acoustic suspension
  • Driver 7cm (2-3/4”) full-range cone
  • Nominal Input Power 30 W
  • Maximum Input Power 100 W
  • Sensitivity 83 dB/2.83 V/1 m
  • Dimensions (W x H x D) 115 x 176 x 88 mm; 4-1/2” x 6-7/8” x 3-1/2”
  • Weight 0.48 kg / unit; 1.06 lbs. / unit

  Center Speaker

  • Type: Full-range acoustic suspension
  • Driver 7cm (2-3/4”) full-range cone
  • Nominal Input Power 30 W
  • Maximum Input Power 100 W
  • Sensitivity:84 dB/2.83 V/1 m
  • Dimensions: (W x H x D) 291 x 101 x 103 mm; 11-1/2” x 4” x 4”
  • Weight: 0.68 kg; 1.5 lbs.

  Surround Speaker

  • Type Full-range acoustic suspension
  • Driver 7cm (2-3/4”) full-range cone
  • Nominal Input Power 30 W
  • Maximum Input Power 100 W
  • Sensitivity 83 dB/2.83 V/1 m
  • Dimensions (W x H x D) 115 x 176 x 88 mm; 4-1/2” x 6-7/8” x 3-1/2”
  • Weight 0.48 kg / unit; 1.06 lbs. / unit
  • Subwoofer Type Advanced YST with Linear Port
  • Driver 16cm (6-1/2”) cone
  • Output Power 50 W (5 ohms, 100 Hz, 10% THD)
  • Dynamic Power 100 W
  • Dimensions (W x H x D) 262 x 264 x 299 mm; 10-3/8” x 10-3/8” x 11-3/4”
  • Weight 7 kg; 15.4 lbs.
