100W Per Channel at 8 Ohms in Stereo YPAO RSC Multi-Point Speaker Calibration 4K Ultra HD Pass-Through & Upscaling Built-In Wi-Fi & Wireless Direct AirPlay & Bluetooth Music Streaming 8 x HDMI-In / 2 x HDMI-Out and HDMI 2.0a DSP Parameter Adjustment AV Controller App for Smart Devices Intelligent Amp Assign Height-Channel Dolby Atmos Support
Product Code: RXA850D Product ID: 25306
Product sold by: samstores.com
Availability: In Stock New

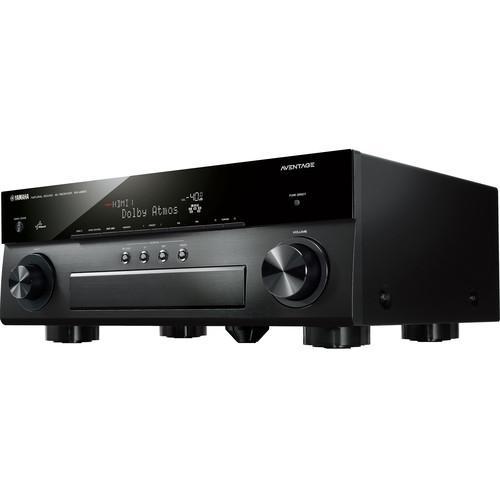

The Yamaha AVENTAGE RX-A850BL 7.2-Channel Network AV Receiver in black delivers powerful multi-channel sound, YPAO automatic room calibration, and video upscaling. This 7.2-channel receiver produces up to 100W of nominal power at 8 ohms and allows you to connect two powered subwoofers. Built-in Bluetooth and AirPlay support allows the RX-A850BL to wirelessly stream music from compatible sources, such as smartphones and tablets, while Yamaha's Compressed Music Enhancer works behind the scenes to deliver optimized sound quality.
With on-board Wi-Fi and Ethernet connectivity, the Yamaha RX-A850BL can access a variety of Internet music sources like Pandora, Spotify, and SiriusXM. It also supports DLNA content sharing when paired with your similarly equipped network-connected devices, such as PCs. As an added convenience, you can also download the free Yamaha AV Controller app to control the receiver from your Android or iOS smart devices. On the video side, this receiver can accept 3D and 4K signals, and can even upconvert lower-resolution video sources to near-4K quality when paired with 4K televisions.
With 8 HDMI inputs and 2 HDMI outputs, this receiver can serve as a video switcher for your high-definition source components. It even supports HDMI 2.0a devices. It is also equipped with a convenient USB port, allowing you to directly interface audio sources like iPhones and USB storage devices. Other connectivity options include 2 digital optical, 2 digital coaxial, 5 stereo RCA, a phono input, and more. When lower listening levels are required, you can connect a pair of earphones to the receiver's front-panel headphone output, or use built-in YPAO Volume technology to compress dynamic passages when required. Setup is designed to be simple and straightforward thanks to Yamaha's multilingual advanced graphical user interface.
YPAO - R.S.C. with Multi-Point Measurement
YPAO - Reflected Sound Control analyzes room acoustics and measures various speaker characteristics, then calibrates audio parameters to achieve optimum sound in the listening area. It employs Reflected Sound Control to correct early reflections for studio-quality sound. It also provides DSP Effect Normalization which varies the CINEMA DSP parameters according to the reflected sounds. With Multipoint measurement, measure up to eight locations ensuring each seat is acoustically optimized during playback.
Anti-Resonance Technology
The Anti-Resonance Technology Wedge is a fifth foot in the center of the unit. It dampens vibrations from the power transformer, power transistors, and heat sinks, as well as vibrations that might be caused by the sound from the speakers.
Aluminum Front Panel
The aluminum front panel is used to effectively shield sensitive circuitry from external noise and electronic radiation generated by dimmer switches, fluorescent lighting, video monitors, and so on. This helps to ensure optimum sonic performance in a wide range of installation environments.
HDMI 2.0a, 4K Upconversion, and HDCP 2.2
The RX-A850BL supports the transmission of 4K video at 60 frames per second (pass-through and video upconversion). Fully enjoy the high-definition video quality of 4K without degradation along with HDCP 2.2 that complies with copyright protection, a standard for 4K video transmission.
HDMI with 3D and Audio Return Channel
The RX-A850BL supports 3D video signals. Additionally, the Audio Return Channel function enables audio to be sent and received via the same HDMI cable, so you can hear the sound from the TV via a single HDMI cable.
HDMI CEC for Easy Operation
When the unit is connected to a CEC-compatible TV, the receiver will turn on and off together with the TV and you can use the TV remote to control the volume. CEC also provides advanced functionality with other components. For example, you can use the receiver's remote control to command source players with functions like skip, play and pause.
Network Functions
This AV receiver provides a variety of network functions that enable you to access more sources and also enhance operation. You can connect the AV receiver to a Mac or Windows PC with WebBrowser Control and have two-way control of Internet radio, Pandora, and Spotify. The AV Controller App (from iTunes or Google Play) lets you control various functions from your iPod, iPhone, iPad or Android phones/tablets.
Built-in Wi-Fi and Wireless Direct
Built-in Wi-Fi allows for a wireless connection with your wireless router, simplifying system connections for enjoying networked audio (PC/NAS) and music streaming services. If a Wi-Fi router is not available, the Wireless Direct feature not only allows you to stream music directly from your smartphone or tablet via the AV Controller App, AirPlay etc., but also allows for control of the AV receiver as well.
Apple AirPlay Connectivity
This AV receiver supports AirPlay, which means it supports wireless music streaming from an iPod touch, iPhone, or iPad, as well as from iTunes on a Mac or Windows PC. This makes it easy to enjoy music from your mobile devices or computer at your home theater system. You can view metadata such as song title, artist name, as well as album art, inside the receiver's on-screen display.
Stream Millions of Songs with Spotify Connect
With the Spotify app on your smartphone, you have instant access to millions of songs. You can stream those songs to your networked Yamaha AV receiver by using Spotify Connect. Just hit play to start streaming music. When you listen to Spotify outside on your smartphone or tablet and come inside, the song immediately streams to your Yamaha AV receiver, without interruption to music playback. You can also personalize playlists and receive phone calls while listening to music on Spotify. The Spotify app and premium account are required.
AV Controller App
This AV receiver lets you use the Yamaha AV Controller App that is downloadable from iTunes, Google Play, or the Amazon Appstore to control the power, volume, input selections, DSP modes, and more, from an iPhone or Android device. You can also use as many as 23 different languages and customize the interface by hiding unused icons and renaming functions. A tablet version is also available.
Dolby Atmos Support
Dolby Atmos uses height channels to create captivating, multi-dimensional, room-filling sound. This technology allows you to experience music and movie effects with greater detail.
Speaker Layout Patterns Designed for Dolby Atmos Playback
Yamaha provides multiple placement patterns for presence speakers that support Dolby Atmos, creating a sound field that's suitable for a wide range of setups. Any layout can be appropriately reproduced, including the three-dimensional space of Cinema DSP as well as Dolby Atmos. Furthermore YPAO Reflected Sound Control optimizes the listening environment and fundamental high quality audio design takes full advantage of the detailed spatial localization capability of Dolby Atmos.
DSP Parameter Adjustment
This AV receiver is equipped with a variety of sound programs that utilize original DSP technologies from Yamaha. These sound programs allow you to create sound fields like actual movie theaters or concert halls in your room to enjoy natural stereoscopic sound fields. Use the AV Controller App to adjust the DSP parameters in a basic or advanced mode to match the mood of your favorite movie or music album. Basic mode adjusts the sound space by pinching in and out. The advanced mode allows detailed adjustments of various parameters, such as reverb, initial delay, and liveliness.
Extensive Audio Codec and Format Support
This AV receiver is compatible with many audio formats such as Dolby TrueHD and DTS-HD Master Audio. It is also compatible with high-resolution audio codecs such as DSD, AIFF, FLAC, WAV, and Apple Lossless. You can enjoy these codecs from sources connected to the receiver's USB or from network-connected devices.
USB Digital Connection for iPod and iPhone on the Front Panel
A USB port on the front panel allows convenient connection of an iPod or iPhone, which also charges the iOS device when connected. Because the digital signal from the iPod and iPhone is transmitted directly to the AV receiver, there is no signal loss or interference. In addition, you can use the receiver's remote control unit to operate the iPod and iPhone for basic playback control.
Compressed Music Enhancer
When music is encoded into a digitally compressed format like MP3, the frequency response can be compromised. Yamaha's Compressed Music Enhancer employs advanced digital signal processing using algorithms to restore what was lost, so the music sounds the way creator intended.
Gapless Playback Compatibility
Many live and classical albums have no gaps in the music. Gapless playback ensures that there are no pauses between audio files.
YPAO Volume
YPAO Volume applies loudness EQ correction to automatically adjust high and low frequency levels as the volume changes. Using the YPAO measurement results, EQ correction is optimized to your system settings and listening environment.
Extra Bass Technology
Yamaha's low-frequency-range enhancement technology delivers rich bass while maintaining good localization and sound balance, even with compact front speakers. When a subwoofer is used, it improves the volume of the entire low range of the speaker system - not only the front speakers, but also enhancing the bass from the subwoofer.
Total Purity Concept
This model has a fully discrete power amplifier that helps to minimize distortion. It also has independent pure power supplies, allowing dedicated power supplies for the analog and digital circuitry to prevent digital noise from affecting analog circuitry. The anti-vibration heat-sinks are designed to suppress vibration from transistors and sound pressure.
Discrete Amplifier Configuration
This AV receiver was designed to achieve a high level of sound clarity. It employs a discrete amplifier configuration and a low-jitter PLL circuit, which contribute to its notable audio performance.
SCENE for One-Touch Start
Pressing a SCENE button powers on the AV receiver and selects the input source and DSP mode. You can reset the buttons for different sources by selecting a source and DSP mode, then pressing a SCENE button for more than three seconds.
HD Audio with CINEMA DSP 3D and Virtual Presence Speaker
Cinema DSP 3D provides a wide, high, and dense sound field. HD Audio format decoding lets you enjoy HD Audio sources. Virtual Presence Speaker delivers three-dimensional sound without the actual use of presence speakers.
Virtual Cinema Front Provides Virtual 7-Channel Surround Sound
The Virtual Cinema Front feature allows for more flexibility to arrange your speakers inside the room. Simply place the surround speakers in the front of the listening area to enjoy a virtual 7-channel surround sound with enhanced rear virtual sound localization.
Virtual Presence Speaker and Virtual Surround Back Speaker
With the power of Cinema DSP 3D, the Virtual Presence Speaker function makes full use of center and surround speakers to create audible information from where presence (height) speakers are normally installed. In addition, this model also features a Virtual Surround Back Speaker function. Even without using surround back speakers, you can experience more natural, lifelike sound from behind you without physical speakers being installed in the surround back area of the listening environment.
Subwoofer Trim Control
The Subwoofer Trim Control enhances the low frequencies by avoiding overlap with the front speaker output. This is designed to produce a clean, focused sound stage while providing a seamless frequency response. When subwoofer frequency overlap occurs in conventional systems, the overall sound is "pushed" toward the subwoofer. Subwoofer Trim Control takes care of this by separating the low subwoofer frequencies cleanly, thus stabilizing the front stage while providing a well-balanced enhanced bass sound.
Intelligent Amp Assign
Intelligent Amp Assign automatically assigns amplifier channels to certain speakers, depending on what functions are selected. For example, in a 7.1-channel system, when Zone 2 is off, all 7.1 channels will be used in the Main Zone. However, when Zone 2 is on, power to the two surround back channels will be directed to the two speakers in Zone 2 and the Main Zone will receive 5.1 channels of power. Similarly, when CINEMA DSP 3D is on, the two Front Presence speakers will be powered and not the two surround back speakers. When CINEMA DSP 3D is off, this situation is reversed.
Advanced Multilingual GUI On-Screen Display
The graphical user interface from Yamaha has a high-resolution display with clear, easy-to-use menus and also includes a selectable status bar that shows input source, volume level, DSP mode and audio format. The GUI provides a choice of eight languages: English, French, German, Spanish, Italian, Russian, Japanese, and Chinese, and can be displayed over both normal and 3D pictures
AV Setup Guide App
This free app assists you with cable connections between the AV receiver and source devices. Additionally, it guides you through various settings such as speaker connections, TV and source device connections, and power amplifier assignments. System illustrations and actual AV receiver images help you understand how to make the connections between devices. This app is available in multiple languages and is designed for iOS and Android tablets.
Selectable Auto Power Standby
Auto Power Standby lets you save energy by automatically turning off the receiver's power after 20 minutes, two, four, eight or 12 hours.
Additional Features
Compressed Music Enhancer (including Bluetooth audio sources)
Pure Direct mode (with video on mode)
Adaptive Dynamic Range Control (DRC)
Initial volume and maximum volume setting
Bi-amping capability
USB Input: iPod, iPhone, USB memory, portable audio player
Web browser control
ECO mode
Headphone output
Main Unit
Nominal Output Levels Rated Output Power (1 kHz, 2-ch driven):
110 W (8 ohms, 0.9% THD)
Rated Output Power (20 Hz - 20 kHz, 2-ch driven):
100 W (8 ohms, 0.06% THD)
Maximum Effective Output Power (1 kHz, 1-ch driven, JEITA):
160 W (8 ohms, 10% THD)
Dynamic Power per Channel (8/6/4/2 ohms): 130/170/195/240 W
Channels 7.2
DAC Type Burr Brown 192 kHz/24-bit DACs for all channels
Audio Delay 0 - 500 ms
Tuner FM / AM
Surround Sound Cinema DSP (3D), DSP Programs (17), Dialog Level Adjustment, Virtual Presence Speaker, Virtual Surround Back Speaker, Dialog Lift, Virtual Cinema Front, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Pro Logic IIx, DTS-HD Master Audio
Video
Upscaling Yes (4K 60p 4:4:4)
Pass-Through 3D, 4K
Conversion Analog to HDMI, HDMI to HDMI
Deep Color / x.v. Color Support Yes
HDCP Version 2.2 (3 x HDMI-in/2 x HDMI-out)
Functionality Auto lip sync, 24 Hz refresh rate support
Connectivity
Bluetooth Yes (AAC)
AirPlay Yes
Wi-Fi Yes (with Wireless Direct)
DLNA Certified Yes
Inputs 8 x HDMI (1 front)
2 x Optical
2 x Digital coaxial
2 x Component video
5 x Composite video (1 front)
1 x Stereo RCA phono (with ground)
5 x Stereo RCA (1 front)
1 x USB (front)
1 x IR
Outputs 2 x HDMI
1 x Component video
1 x Composite video
1 x Stereo RCA zone 2
2 x Subwoofer pre-out
1 x Stereo RCA surround back
1 x Stereo RCA surround
1 x RCA center
1 x Stereo RCA front
1 x Headphones (front)
1 x IR
1 x 12 V trigger
Other Ports 1 x YPAO microphone (front)
1 x FM tuner antenna
1 x AM tuner antenna
1 x Wireless antenna
1 x Ethernet
1 x RS-232C
1 x AC power cord
Speaker Connectors Front Left
Front Right
Center
Surround Left
Surround Right
Surround Back/Bi-Amp Left
Surround Back/Bi-Amp Right
Zone 2/Front Presence Left
Zone 2/Front Presence Tight
HDMI CEC Yes
Audio Return Channel (ARC) Yes
Zones Zone 2 Audio Output: Preout / HDMI
Powered Zone: Zone 2
Zone B Output: HDMI
RS-232C Interface: Yes
+12V Trigger Output: 1
Remote (IR) Input/Output: 1 / 1
General
Power Consumption Standby (IR Only): ≤0.1 W
On-Screen Display Yes
Dimensions (W x H x D) 17.1 x 6.8 x 15.0" / 43.4 x 17.3 x 38.1 cm
With Antenna Up: 17.1 x 9.3 x 15.0" / 43.4 x 23.6 x 38.1 cm
Weight 23.4 lb / 10.6 kg
Packaging Info
Package Weight 28.0 lb
Box Dimensions (LxWxH) 21.0 x 18.0 x 10.5"
